Home > Products > Crossed Roller Bearing > High Quality SHF Crossed Roller Bearing SHF-50 SHG-50 Harmonic Drive Bearings SHF50
High Quality SHF Crossed Roller Bearing SHF-50 SHG-50 Harmonic Drive Bearings SHF50
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Manufacture Crossed Roller Bearing SHF-32 SHG-32 Harmonic Drive Bearings
-
54x90x18.5mm Crossed Roller Bearing SHF20 SHG20 SHF-20 SHG-20
-
SHF Bearings Harmonic Drive Bearings SHF-14 SHG-14 Industrial Robots Bearings
-
High Quality Cross Roller Bearing SHF-25 SHG-25 Harmonic Drive 68x110x20.7mm
-
Bearing Manufacture100*170*48MM Crossed Cylindrical Roller Bearings ZK200
-
100*140*16mm High Precision Slewing Bearing CRBH10016 Cross Roller Bearings CRBH10016
Product Description
Product Description
high quality crossed roller bearing SHF-50 SHG-50 Harmonic drive bearings
SHF(SHG) series(Outer ring integraty,inner ring integraty)
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHF/SHG series models (Dimension- dx D x H mm):
SHF-14/SHG-14 Dimension-38x70x15.1mm
SHF-17/SHG-17 Dimension 47x80x17mm
SHF-20/SHG-20 Dimension-54x90x18.5mm
SHF-25/SHG-25 Dimension-68x110x20.7mm
SHF-32/SHG-32 Dimension-88x142x24.4mm
SHF-40/SHG-40 Dimension-108x170x30mm
SHF-50/SHG-50 Dimension-135x214x36mm
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHF/SHG series models (Dimension- dx D x H mm):
SHF-14/SHG-14 Dimension-38x70x15.1mm
SHF-17/SHG-17 Dimension 47x80x17mm
SHF-20/SHG-20 Dimension-54x90x18.5mm
SHF-25/SHG-25 Dimension-68x110x20.7mm
SHF-32/SHG-32 Dimension-88x142x24.4mm
SHF-40/SHG-40 Dimension-108x170x30mm
SHF-50/SHG-50 Dimension-135x214x36mm
Bearing Model | SHF-50 SHG-50 |
Application | robots |
Type | Crossed Roller Bearing |
Structure | Separable Outer Ring Cross Roller Bearing |
(dxDxB) | 135x214x36mm |
Mass / | 4.5 KG |
Origin | china |
Lead Time | Within 3 Days |
Contact | sara (Ms) |
WhatsApp / Webchat | +86 18710180456 |
Email | sales1@landlionbearing.com |
Harmonic drive bearings
SHF Bearings
Industrial robots bearings
SHF-50/SHG-50
Detailed Images
Products structure
Harmonic drive bearing is cross roller structure.According to its application area there are two types one is our ring split and inner ring integraty another one is outer ring and inner ring all integraty.Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc.Bearing with high rigidity,rotation accurancy and load carrying capacity. This series bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.
Harmonic drive bearing series
SHF(SHG) series(Outer ring integraty,inner ring integraty)
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHF/SHG series models (Dimension- dx D x H mm):
SHF-14/SHG-14 Dimension-38x70x15.1mm
SHF-17/SHG-17 Dimension 47x80x17mm
SHF-20/SHG-20 Dimension-54x90x18.5mm
SHF-25/SHG-25 Dimension-68x110x20.7mm
SHF-32/SHG-32 Dimension-88x142x24.4mm
SHF-40/SHG-40 Dimension-108x170x30mm
SHF-50/SHG-50 Dimension-135x214x36mm
Harmonic drive bearing series
SHF(SHG) series(Outer ring integraty,inner ring integraty)
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHF/SHG series models (Dimension- dx D x H mm):
SHF-14/SHG-14 Dimension-38x70x15.1mm
SHF-17/SHG-17 Dimension 47x80x17mm
SHF-20/SHG-20 Dimension-54x90x18.5mm
SHF-25/SHG-25 Dimension-68x110x20.7mm
SHF-32/SHG-32 Dimension-88x142x24.4mm
SHF-40/SHG-40 Dimension-108x170x30mm
SHF-50/SHG-50 Dimension-135x214x36mm

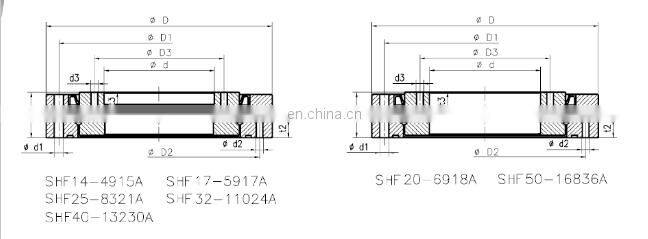

公称型号Bearing Type | 外 形 尺 寸（mm） | ||||||||||
Boundary Dimension (mm) | |||||||||||
D | d | d3 | B | C | H | ||||||
SHF(G)-14 | 70 | 38 | 36 | 14.7 | 14.2 | 15.2 | |||||
SHF(G)-17 | 80 | 47 | 44.2 | 16.4 | 16 | 17 | |||||
SHF(G)-20 | 90 | 54 | 51.3 | 17.5 | 17.5 | 18.5 | |||||
SHF(G)-25 | 110 | 67 | 64.2 | 19.7 | 18.7 | 20.7 | |||||
SHF(G)-32 | 142 | 88 | 8.4 | 23.4 | 23.4 | 24.4 | |||||
SHF(G)-40 | 170 | 108 | 106 | 28.5 | 29 | 30 | |||||
SHF(G)-50 | 214 | 135 | 129 | 34.5 | 37 | 36 | |||||
安 装 孔 尺 寸（孔中心径及孔规格） | 基本额定载荷 | 重量Weight | |||||||||
Mounting Hole Size（PCD&SPEC) | Basic Load Rating | ||||||||||
Cr | Cor | ||||||||||
dm | dn | KN | KN | kg | |||||||
64 | 8-φ3.5 | 44 | 12-M3 | 6.1 | 14 | 0.11 | |||||
74 | 12-φ3.4 | 54 | 20-M3 | 9.4 | 16.1 | 0.36 | |||||
84 | 12-φ3.5 | 62 | 16-M3 | 20.2 | 31.1 | 0.44 | |||||
102 | 16-φ4.5 | 77 | 16-M4 | 28.5 | 45.2 | 0.7 | |||||
132 | 12-φ5.5 | 100 | 16-M5 | 47.3 | 77.3 | 1.57 | |||||
158 | 12-φ6.6 | 122 | 16-M6 | 35.5 | 71.2 | 2.4 | |||||
200 | 12-φ9 | 154 | 16-M8 | 80.4 | 151.9 | 4.5 | |||||
Recommend Products
Application
Certifications
Main Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
