234.95X546.1X127mm T921 K-T921 T921-902A1 Thrust Tapered Roller Bearings T921

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

T921 K-T921 T921-902A1 Thrust Tapered Roller Bearings T921

Thrust tapered roller bearing T441 T511 T611 T651 T661 T691 T711 T811 T911 T921

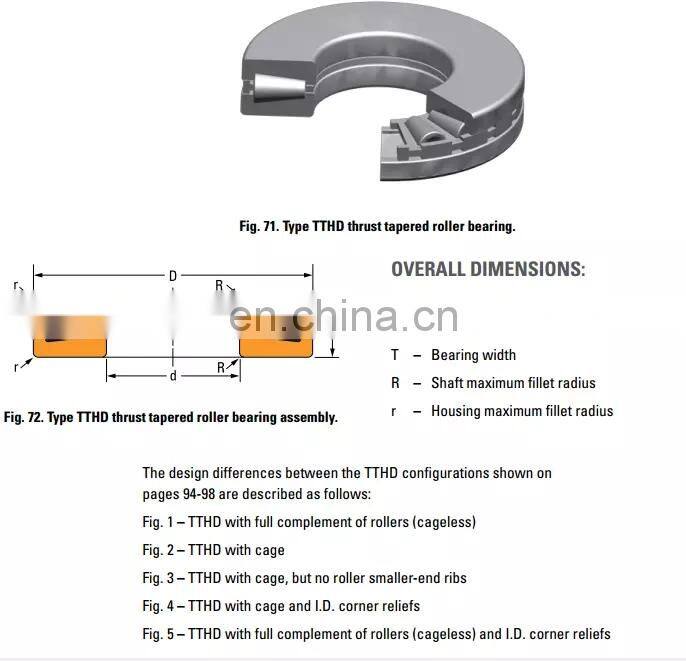

TTHD bearings consist of two thrust races, a set of rollers and a cage. This design can create up to 40 percent more capacity than cylindrical and spherical bearings with the same envelope dimensions. The configuration of TTHD bearings creates a benefit called true rolling motion. The extensions of the raceways and rollers converge at a common point (the apex) on the axis of rotation. As a result, true rolling motion reduces heat generation and wear on the races and rollers

Design Attributes: We make bearings from premium quality, case-carburized bearing steel and feature a hard, fatigue-resistant surface and a durable, crack-resistant core to maximize service life. High-quality materials also provide a high shock resistance in heavy load applications. designed TTHDs for high thrust-load capacity and applications with increased pressures. The true rolling motion of TTHDs allow for higher speeds with minimum roller skewing or skidding. Special profiles on TTHDs create an advanced geometry and minimize edge-stress concentrations caused by high thrust loads. Enhanced material, special finishes and increased precision also can be applied to further extend bearing life. Additional bearing capacity is available with TTHDFL design, which features a different cage and one flat-thrust race.

Bearing	thrust roller bearing T921
Type	TTHD-Thrust Tapered Roller Bearing
ITEM	T921-902A1
d	234.95
D	546.1
B	127mm
Application	Machine tools Mill stands Oil well swivels Plastic extruders Pulp refiners
Weight	171kg
Tel	86-18710180456
email	sales1@landlionbearing.com

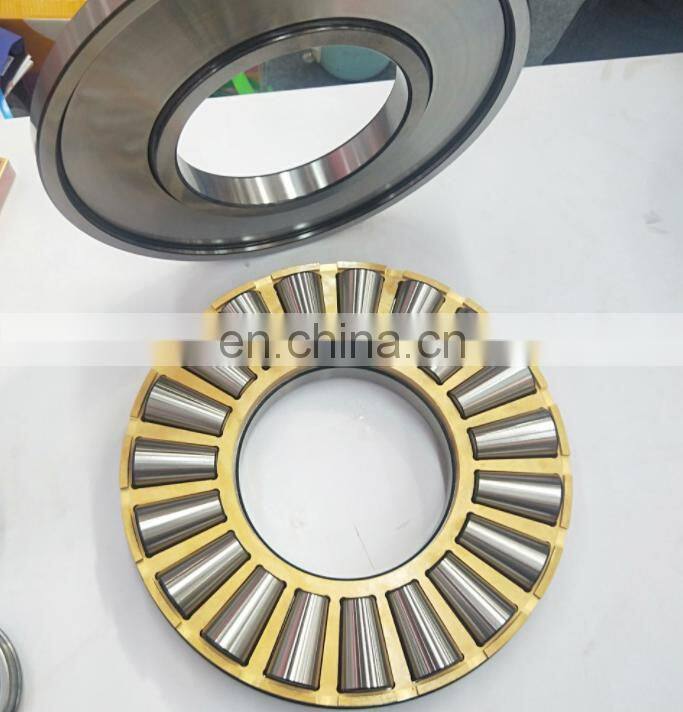

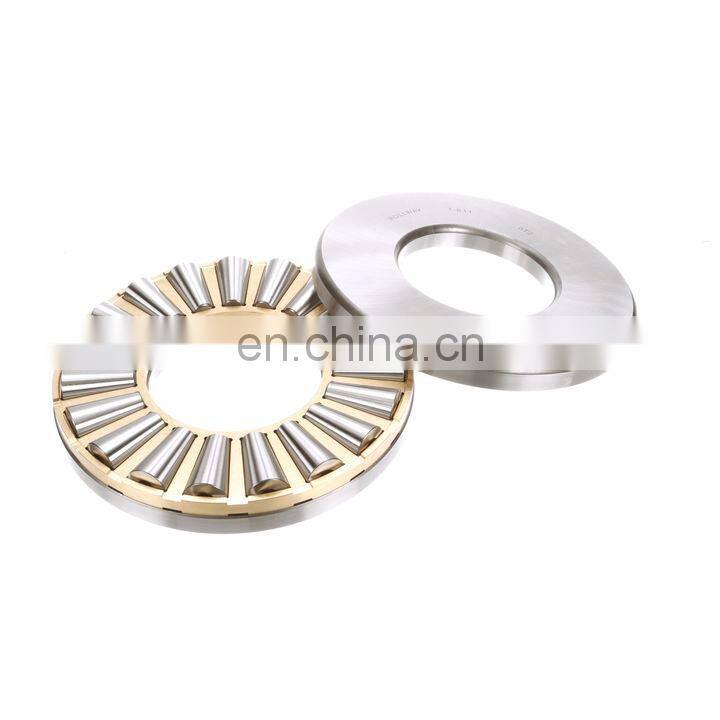

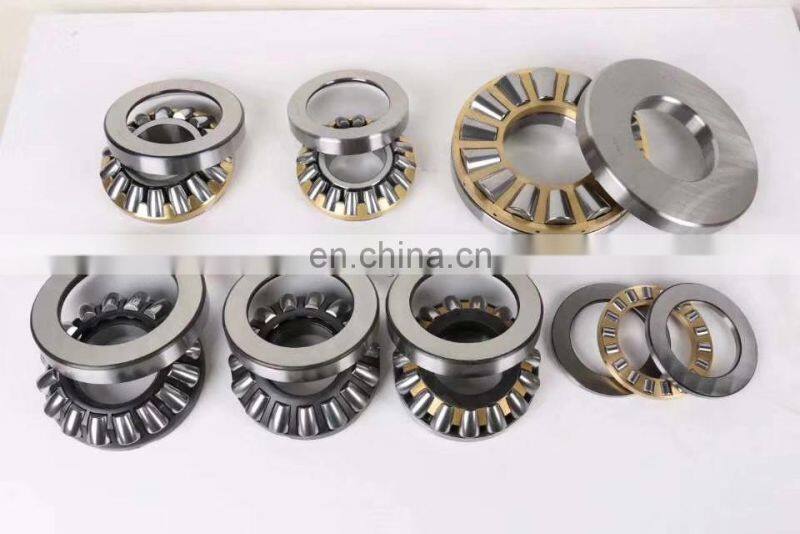

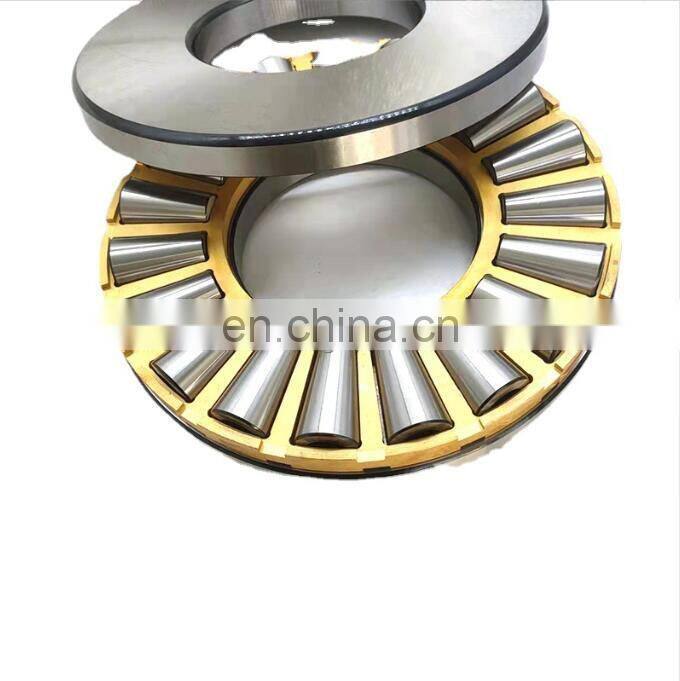

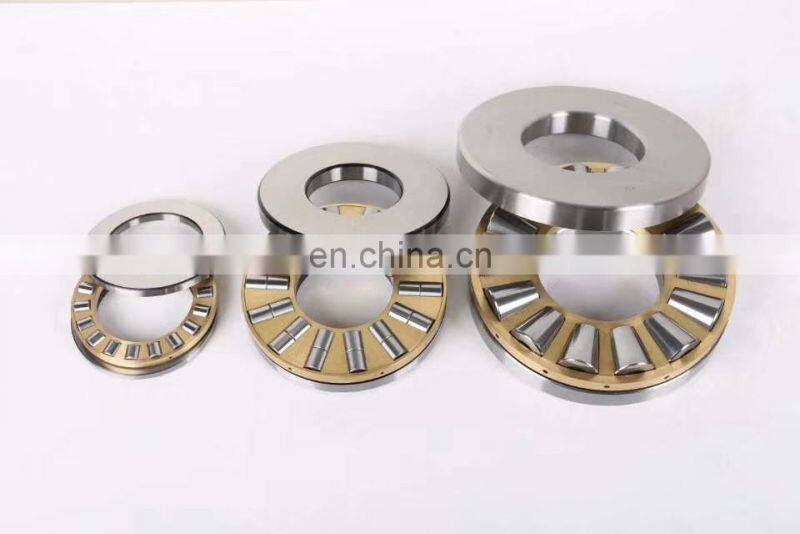

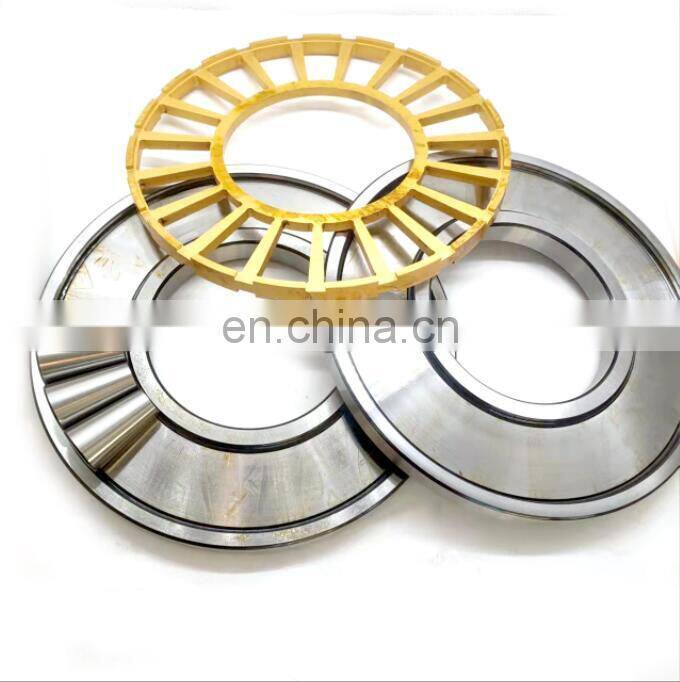

Detailed Images

Thrust tapered roller bearing T441 T511 T611 T651 T661 T691 T711 T811 T911 T921

Inch Tapered Roller Thrust Bearings
Bearing	Germany	d(inch)	D(inch)	T(inch)	KGS
T135		34.925	76.2	18.875	0.4
T200		50.8	109.538	22.225	1.09
T311		76.2	161.925	33.338	3.64
T 411	549164	101.6	215.9	46.038	8.9
T 441	548086	111.76	223.52	55.88	11.4
T 451	518487	143	250.825	53.975	15
T 511	547420	127	266.7	58.738	17.8
T 511 A	546630	128.588	266.7	58.7375	17.8
T 520	521174 A	127	250.825	55.562	13.9
T 611	547711	152.4	317.5	69.85	29.3
T 651	546947	165.1	311.15	88.9	38.3
T 661	546632	168.278	304.8	69.85	27.8
T 691	535741 A	174.625	358.775	82.55	45.3
T709		177.8	431.8	101.6	86.3
T 711	547667	177.8	368.3	82.55	48.4
T 811	514560	202.2	419.1	92.075	69.3
T 811 X	547713	202.2	419.1	120.65	92.7
T 811 XA		203.2	419.1	106.362	81.8
T 911	512133 A	228.6	482.6	104.775	105
T 911 A	546631	234.95	2482.6	104.775	103
T 921	513052	234.95	546.1	127	171
T 1011	547591	254	539.75	117.475	147
T 1115		279.4	495.3	133.35	125
T 1120	546633	279.4	603.25	136.525	212
T 1421		355.6	533.4	101.6	83.9
T 7519	547712	7.4803	355.6	74.219	35.9
T 9020	547380	228.6	431.83	88.773	65.7
T 14520	549175	368.3	603.25	120.65	144
T 16021	549176	406.4	711.2	146.05	264
T 16050		406.4	838.2	177.8	517
T 48000		1219.2	1524	136.525	596

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Factory

Application

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
