16.5*28*22 mm LZ2822 Needle Roller Bearing LZ2822 Textile Machinery LZ 2822
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- LZ 3224 Bottom Roller Bearings LZ Series Textile Machine LZ2822 LZ3224 LZ16.5 bearing
- CCF 1 3/4 SB McGill Cam Follower CCF 1 3-4 SB Track Roller Bearing CCF-1 3/4 SB
- CF 11/16 SB McGill Track Roller Bearing CF 11-16 SB cam follower bearing
- MCFR 22 SX McGill Track Roller Bearing MCFR20SX
- MCFR 22 SB McGill Track Roller Bearing MCFR20SB
- PNA20/42-XL Aligning Needle Roller Bearing PNA20/42
Product Description
Product Description

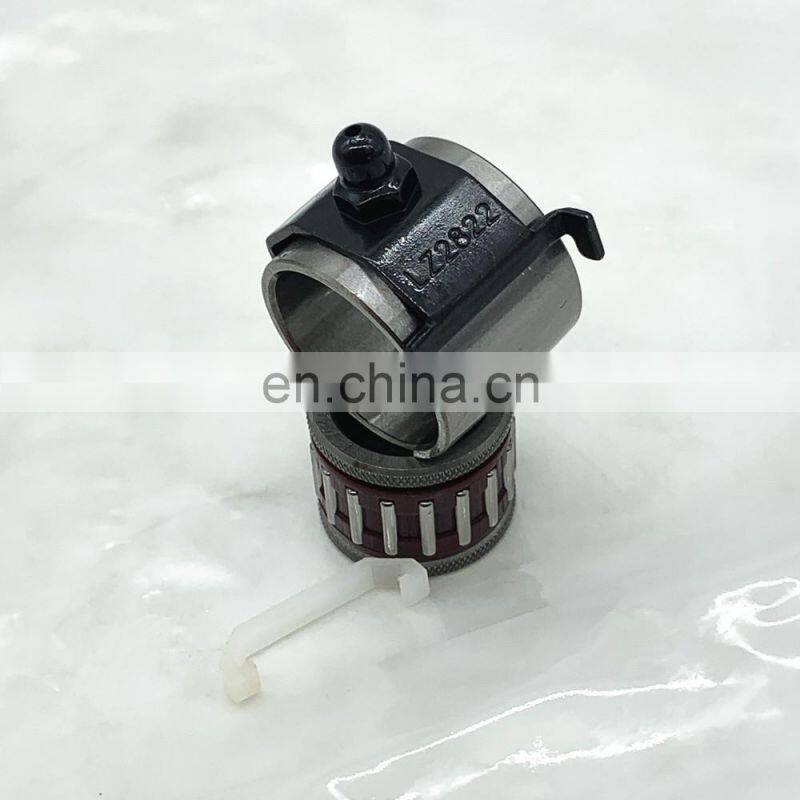

Textile Machinery bottom roller bearing LZ2822 Needle Bearings Bearing 16.5*28*19 mm
Needle roller bearing LZ2822 Bottom Roller Bearing for textile machines bearing TEX205 TEX232

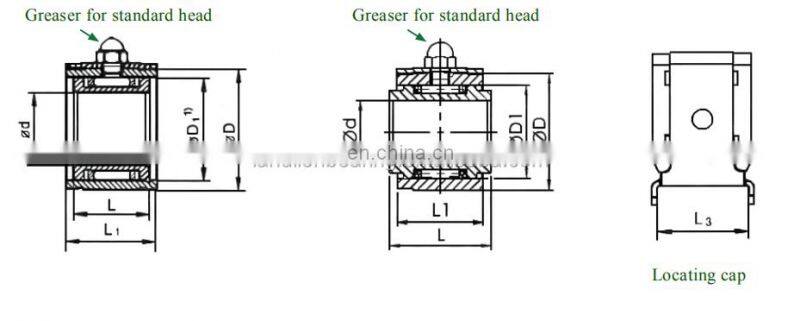

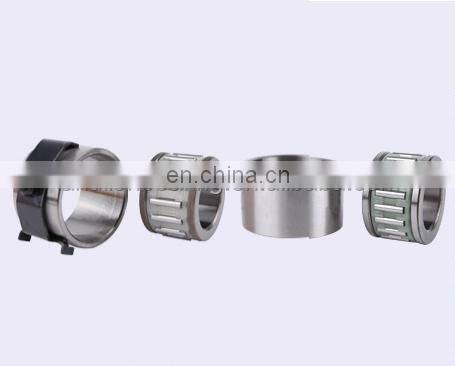

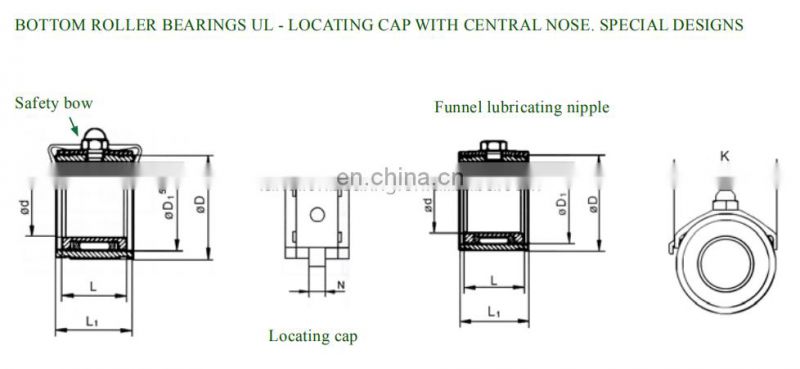

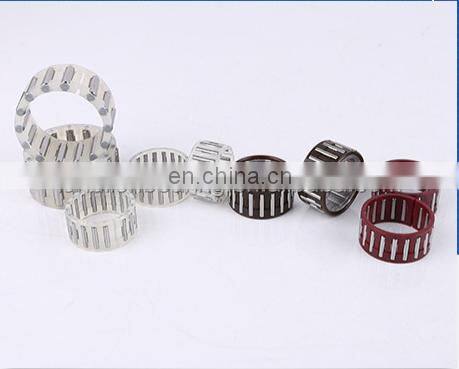

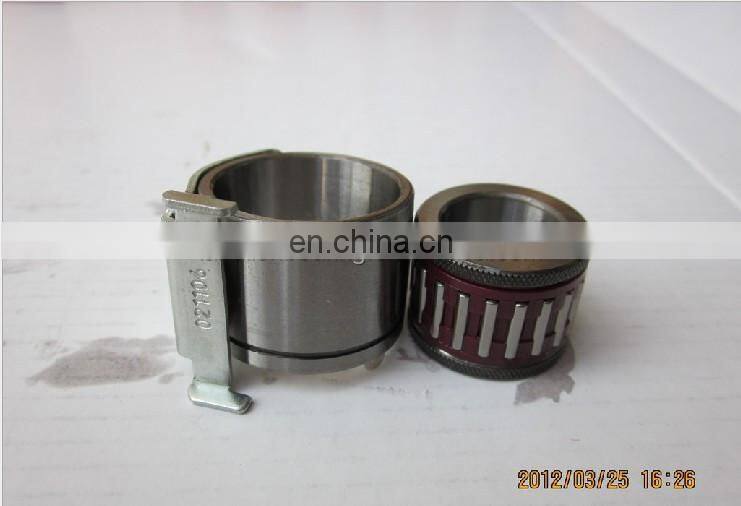

bottom roller bearing for textile machineThese are specifically designed Needle Roller Bearings for long life and low maintenance for Ring Frames. The outer ring of the bearing is crowned to accommodate misalignment in the roller stands. Crowning also helps in preventing early failure of the bearing by distributing the load uniformly. The inner ring has knurling on its flanges, which provides an effective seal to prevent entry of fibres in the bearing and protect it from damage. Bottom Roller Bearings incorporate a steel cage split in two halves or plastic cage. The design of cage pockets ensures that the needles do not fall and also give them positive and accurate guidance. Lubrication to the bearing is effected through the grease nipple. The bearing is secured on the roller stand very easily by a holder (locating cap). The holder (locating cap) can be customized according to unique application designs.
Bearing Modle | textile machine bearing LZ2822 |
Type | needle roller bearing /bottom roller bearing |
Size | 16.5*28*19*22 mm |
weight | 0.06kg |
Package | box+standard carton+pallet/wooden case |
contact person | Sara |
MOQ | one pcs |
Tel | 86-18710180456 |
sales1 at |

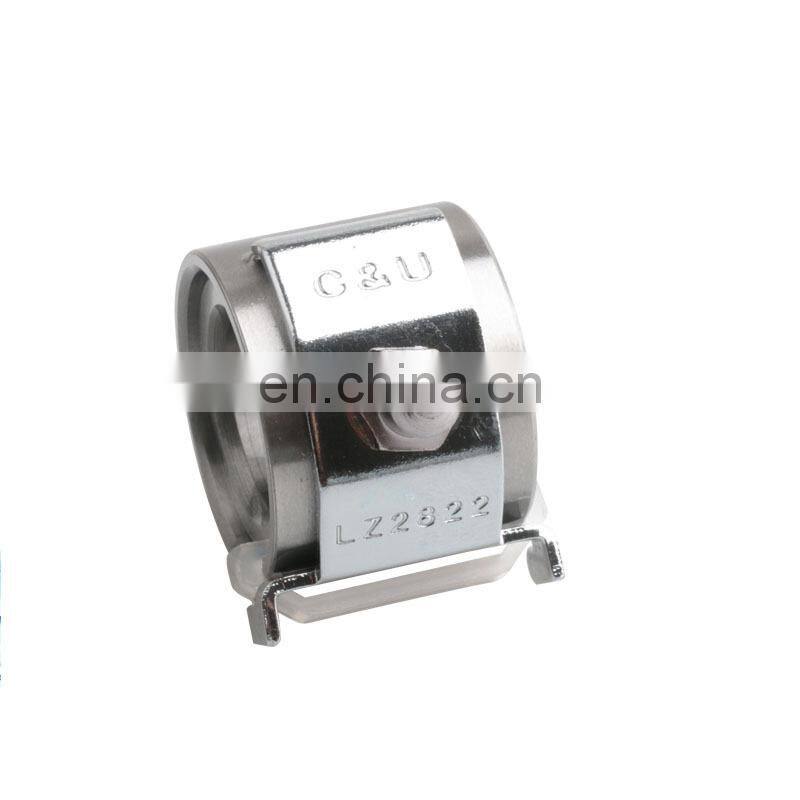

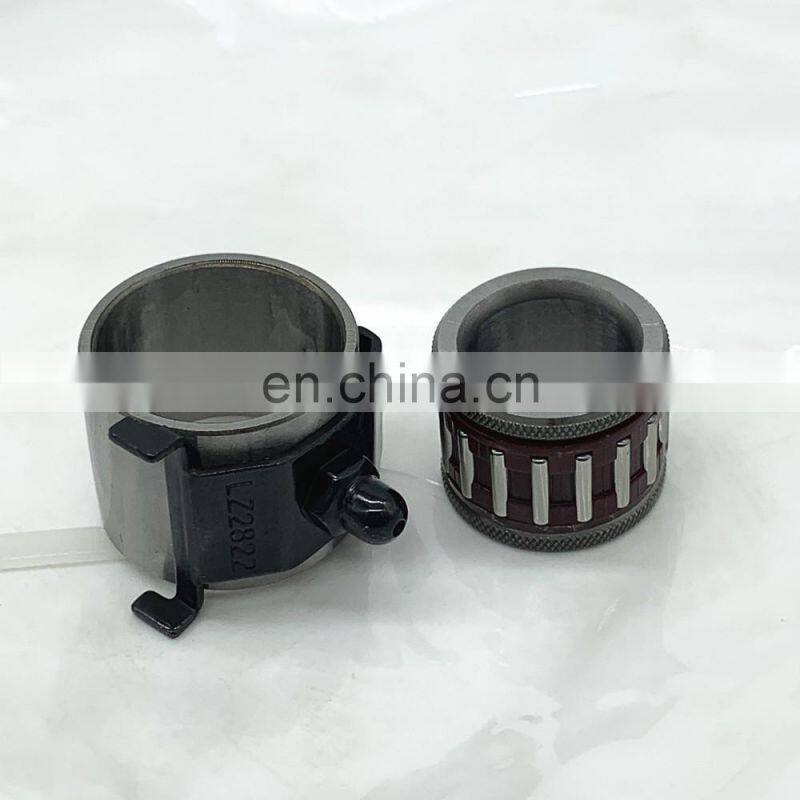

Bottom roller bearing LZ2822
Model No | D(mm) | d(mm) | B(mm) | C(mm) | Weight(KG) |
LZ2800 | 28 | 16.5 | 19 | 22 | 0.06 |
LZ2822 | 28 | 16.5 | 19 | 22 | 0.06 |
LZ2822E | 28 | 16.5 | 19 | 23 | 0.061 |
LZ3200 | 32 | 19 | 20 | 23 | 0.082 |
LZ3224 | 32 | 19 | 20 | 23 | 0.082 |
LZ3224E | 32 | 19 | 20 | 24 | 0.082 |
LZ3226 | 32 | 19 | 20 | 23 | 0.082 |
LZ3600 | 36 | 21 | 22 | 25 | 0.119 |
LZ3624 | 36 | 21 | 22 | 25 | 0.119 |
LZ3626 | 36 | 21 | 22 | 25 | 0.119 |
LZ4000 | 40 | 23 | 23.5 | 27 | 0.16 |
LZ4024 | 40 | 23 | 23.5 | 27 | 0.16 |
LZ16.5 | 30 | 16.5 | 19 | 23 | 0.17 |
LZ19 | 36 | 19 | 22 | 26 | 0.116 |
LZ22 | 42 | 22 | 23 | 27 | 0.16 |
LZ25 | 47 | 25 | 25 | 29 | 0.218 |
Recommend Products
Main Products
Product packaging
Packing :
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
