353130-2RS Heavy Load Cargo Train Bearing 353130B Railway Bearing TBU150 for Train
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Original NSK R60-44 Truck Car Gearbox R60/44 Rodamiento Taper Roller Bearing 60x90x12.3mm
-
NSK Bearing R37-7 Auotomotive Taper Roller Bearing 4T-R37-7 Rolamentos 37x77x12/17mm
-
KOYO 30205JR Taper Roller Bearing 30205 for Tricycle Bearing 30205 30206
-
22.5*41*12mm 24*41*13mm Electric Tricycle Bearing 91683/22.5 Tapered Roller Bearings 91683
-
30x52x15mm Tricycle Bearing 768906 Steer Axle Bearing 768906 Taper Roller Bearing 30x52x15mm
-
566194 A.E30 AUTOMOTIVE BEARING 566194A Double Row Taper Roller Bearings 40X95X44.7 mm
Product Description
Product Description

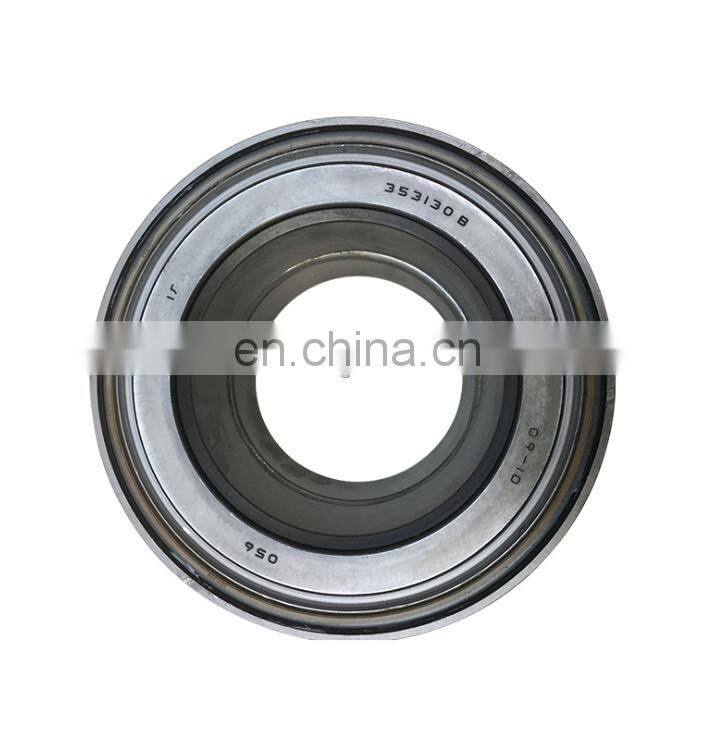

353130-2RS Heavy load cargo train bearing 353130B railway bearing TBU150 for train
Type: Tapered Roller Bearing
Bore Size: 150mm
Outside Diameter: 250mm
Width : 106mm
Weight : 34.3kg
Model Number: 353130B
Bore Size: 150mm
Outside Diameter: 250mm
Width : 106mm
Weight : 34.3kg
Model Number: 353130B
TBU 90 90x154x106x115mm
TBU 100 100x175x113,5x120mm
TBU 120 120x195x126x131mm
TBU 130 x 210 130x210x126x132mm
TBU 130 x 220 130x220x145x150mm
TBU 130 x 230 130x230x150x160mm
TBU 140 140x220x133x140mm
TBU 150 150x250x154,5x160mm
TBU 160 x 270 160x270x160x150mm
TBU 160 x 280 160x280x180x180mm
TBU 178 x 265 178,62x265,137x134x139mm
To further increase productivity, China will also increase railway cargo capacity per freight car from today’s 60 tonnes to 80 tonnes. The maximum speed of the freight trains will also be increased, from 80 km/h to 120 km/h. To meet these targets and to further improve the operating safety
Production began with 130 x 230 TBUs for 21-tonne axle load, using an upgraded design. introduced the compact tapered roller bearing unit (CTBU) concept to the Chinese market. The Chinese Ministry of Railways has decided that the CTBU design 150 will become the Chinese standard design for freight cars with 25-tonne axle load.
Metric TBUs

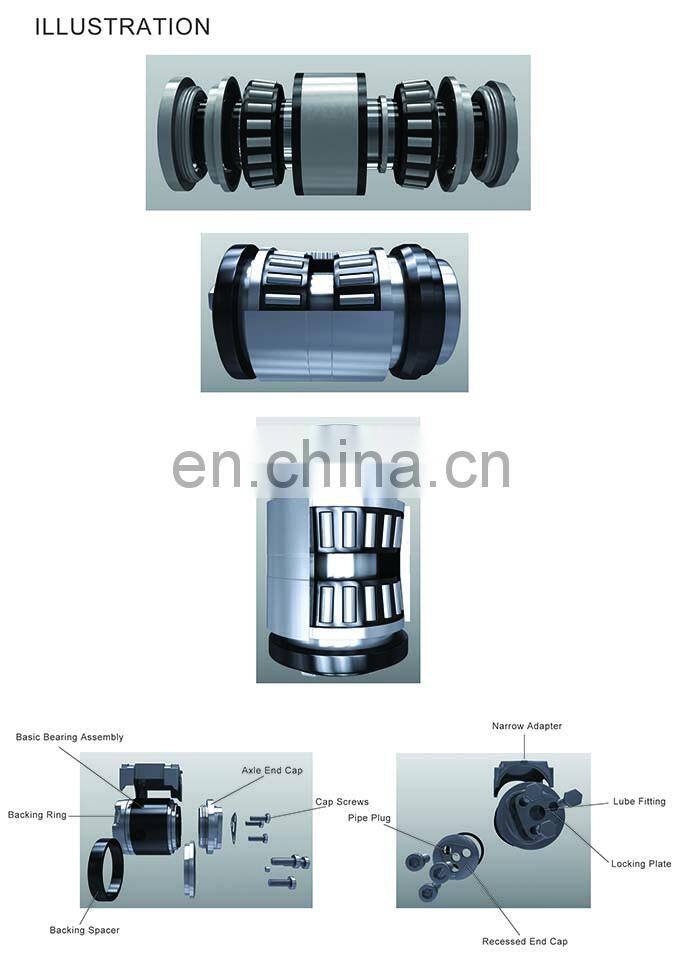

These TBUs incorporate the following design features:
New optimized polymer cage
Improved raceway micro-geometry
Integrated labyrinth lip (LL) low friction rubber seal
High-performance grease.
The optimized cage is made from reinforced polymer and has proven excellent in operation, particularly in terms of safety and performance.
The metric TBU range includes TBU 130 and TBU 150 (Chinese standard), as well as TBU 120 and TBU 130 (European standard) and further TBU 160.
Bearing | Heavy load cargo train bearing 353130B railway bearing |
Application / Structure | Automobile Bearing / train Bearing |
Size ( d x D x B ) mm | 150x250x106mm |
Weight /Mass (KG) | 34.3kg |
Contact | sara |
Material | Chrome steel/GCR15 |
Payment | 30% T/T In Advance, 70% T/T before shipment |
Brand | USA TIM KOYO ..As you want famous brand |
Detailed Images
353130 B Heavy load cargo train bearing 353130B railway bearing for train
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
