Home > Products > Taper Roller Bearings > High Quality Railway Locomotive Bearing TAROL140/220-R-JP Railway Bearing
High Quality Railway Locomotive Bearing TAROL140/220-R-JP Railway Bearing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Koyo 575 572 Inch Tapered Roller Bearing 575/572
-
Original KOYO Tapered Roller Bearings 45252 Bearing Size 260*400*104mm
-
JS220-1707109 Fast Gearbox Truck Spare Part Bearing JS-220-1707109 Double Row Taper Roller Bearing 220-1707109
-
65*130*51mm Original NTN Bearing CR-1355 Taper Roller Bearing ET-CR-1355
-
LSBC KOYO Bearing K529/K522 Inch Taper Roller Bearing K529/ K522 50.8*101.6*34.925mm
-
353130-2RS Heavy Load Cargo Train Bearing 353130B Railway Bearing TBU150 for Train
Product Description
Product Description
Railway axle box bearing
high quality railway locomotive bearing TAROL140/220-R-JP Railway Bearing

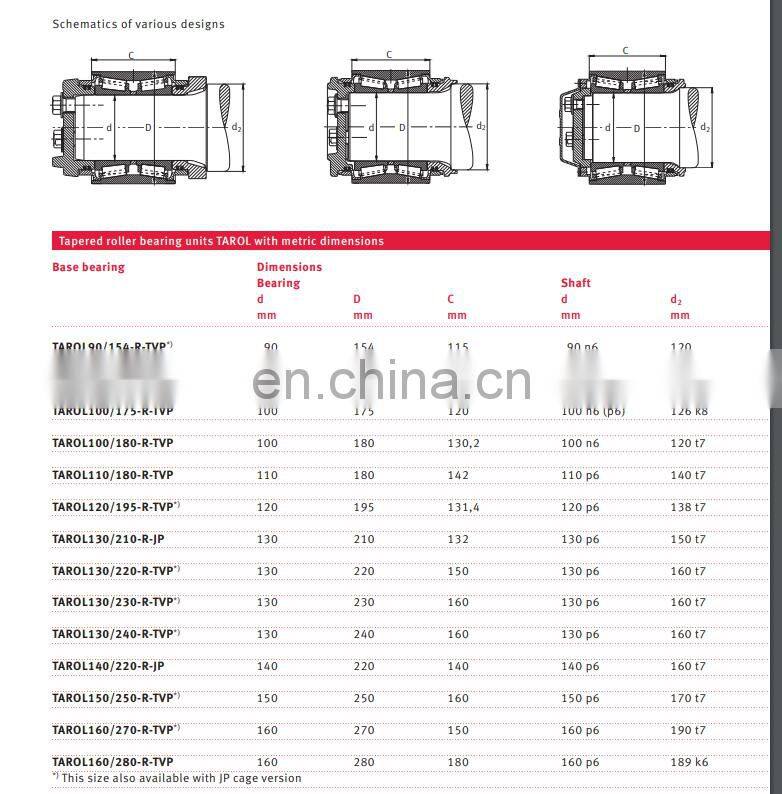

TBU 90 90x154x106x115mm
TBU 100 100x175x113,5x120mm
TBU 120 120x195x126x131mm
TBU 130 x 210 130x210x126x132mm
TBU 130 x 220 130x220x145x150mm
TBU 130 x 230 130x230x150x160mm
TBU 140 140x220x133x140mm
TBU 150 150x250x154,5x160mm
TBU 160 x 270 160x270x160x150mm
TBU 160 x 280 160x280x180x180mm
TBU 178 x 265 178,62x265,137x134x139mm
To further increase productivity, China will also increase railway cargo capacity per freight car from today’s 60 tonnes to 80 tonnes. The maximum speed of the freight trains will also be increased, from 80 km/h to 120 km/h. To meet these targets and to further improve the operating safety
Production began with 130 x 230 TBUs for 21-tonne axle load, using an upgraded design. introduced the compact tapered roller bearing unit (CTBU) concept to the Chinese market. The Chinese Ministry of Railways has decided that the CTBU design 150 will become the Chinese standard design for freight cars with 25-tonne axle load.

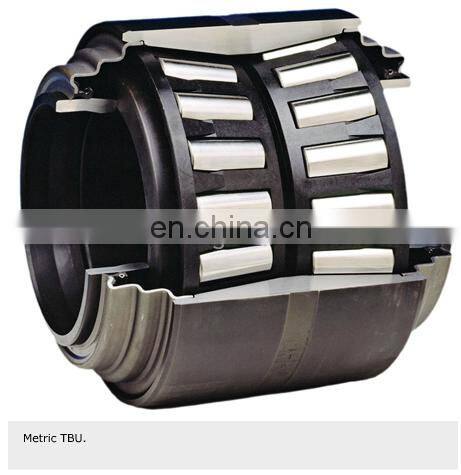

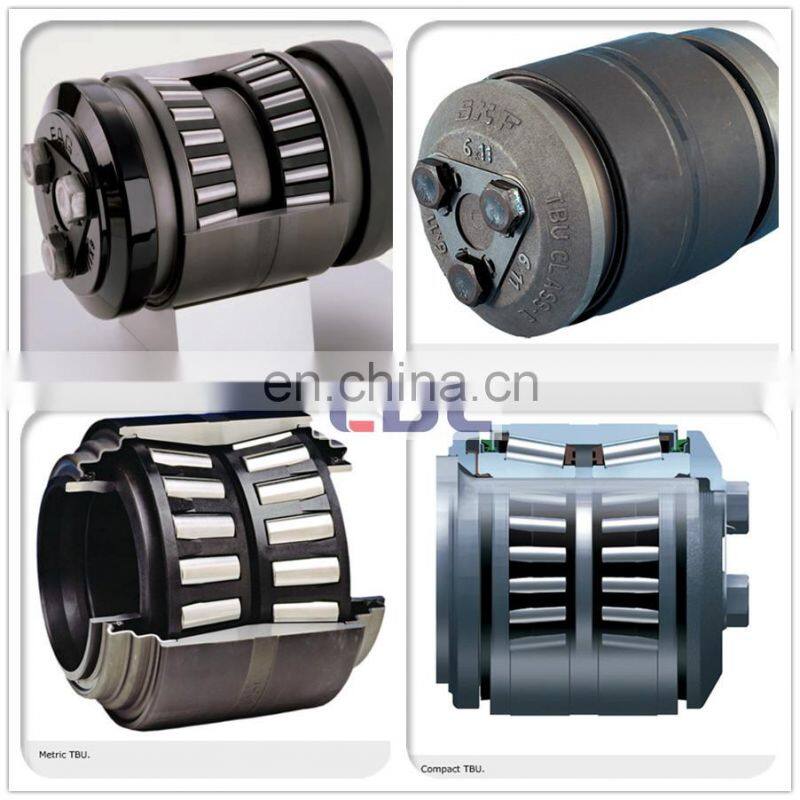

Metric TBUs
These TBUs incorporate the following design features:
New optimized polymer cage
Improved raceway micro-geometry
Integrated labyrinth lip (LL) low friction rubber seal
High-performance grease.
The optimized cage is made from reinforced polymer and has proven excellent in operation, particularly in terms of safety and performance.
The metric TBU range includes TBU 130 and TBU 150 (Chinese standard), as well as TBU 120 and TBU 130 (European standard) and further TBU 160.
Bearing | high quality railway locomotive bearing TAROL140/220-R-JP Railway Bearing |
Application / Structure | train Bearing |
Size ( d x D x B ) mm | 140x220x140mm |
Weight /Mass (KG) | 27 kg |
Contact Person | sara |
Material | Chrome steel/GCR15 |
Payment | 30% T/T In Advance, 70% T/T before shipment |
Brand | USA TIM KOYO ..As you want famous brand |
Detailed Images

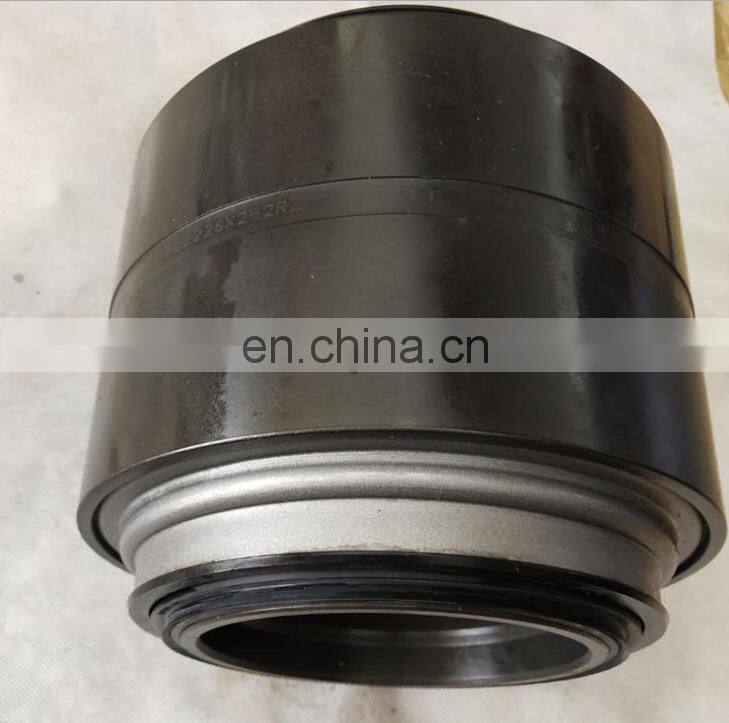

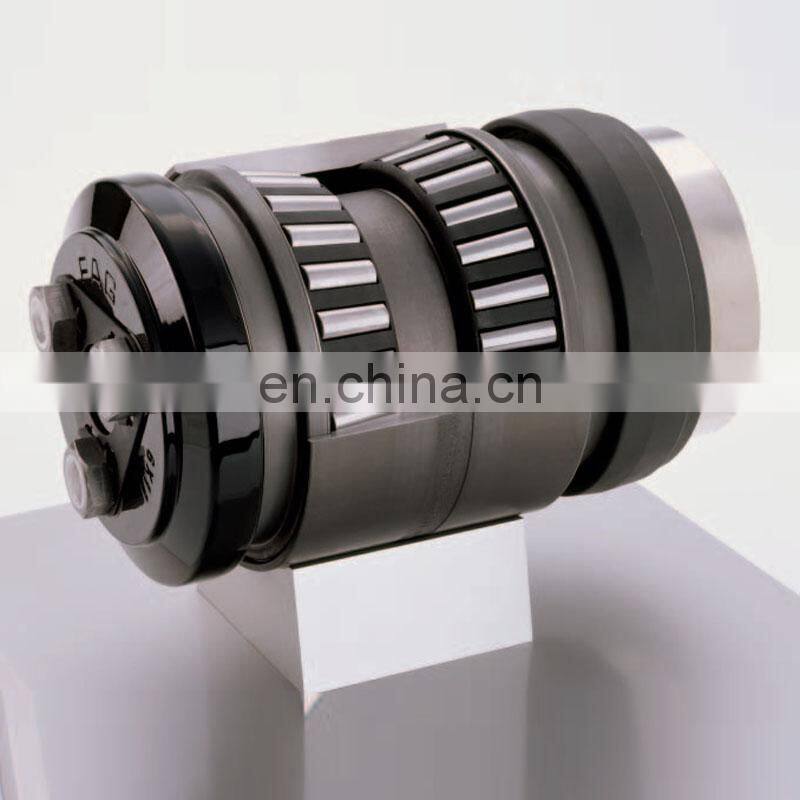

high quality railway locomotive bearing TAROL140/220-R-JP Railway Bearing
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
