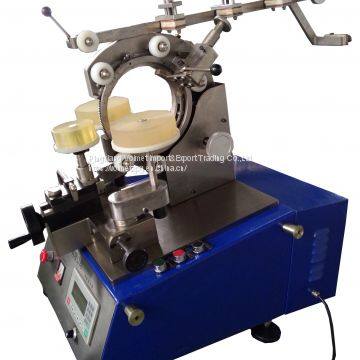

VOL-1500E auto ct winding machine is used for winding large sized toroidal shape Coils,is a new generation of winding equipment according to the power industry requirement.
YW-1500E winding machine features:
Japan Mitsubishi PLC control High productive,human-computer interaction.
Stepping motor speed control for accurate winding,Winding speed can be specified using the front panel keys.
User friendly control console with touch screen.
High-tech shuttle for highest efficiency.
Microprocessor based controls, easy for program-setting and handling for operator.
Large memory capacity for storing steps of winding.
Password protection for administrative settings as well as operators setting.
Easy programming of multi-step, multi-speed settings.
Heavy machine weight design to avoid machine shaking while winding.
Automatically laying wire, change winding direction.
Realize dual-wire, multi-wire winding, forward and backward winding, preset 100 different kinds of wire data in machine.
| Main technical parameters | |
| Model | VOL-1500E |
| Diameter rang of windable electromagnetic wire | Φ1.0~3.5mm |
| Min inner diameter of winded coils | Φ200mm |
| Max outer diameter of winded coils | Φ1500mm |
| Max height of winded coils | 250mm |
| Max winding rotation speed | 100rpm |
| Machine tool power | 2.2kW |
| Max outline size of machine tool | 1300*1000*1500mm |
| Color | Blue,Calx,Customizable |
