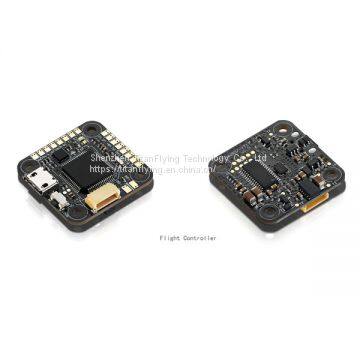

F4 Flight Controller

This version of the Flip32 AIO uses improved components and design that will properly limit the voltage to the Mini OSD preventing voltage spike and damage to the OSD.

 Features of Racing Drone Flight Controller :

• STM103 MCU runs Cleanflight firmware

• 8PWM output, supports Octocopter

• MS5611 Barometer

• Only 35x35mm, mount holes 30x30mm

• Onboard USB (for config the OSD and FC)

• 5V 3A UBEC (2-6S)

• OSD hardware, Compatible with MinimOSD/MWOSD/CC3D OSD

• Small PDB

• Current and voltage sensors

• Better OSD Chip used with less power consumption

• 2x Software serial, 2x Hardware serial ports

Small(er) Size

With the incredibly small size, it can be mounted onto the

more mini-sized airframe (i.e. 130mm or below) and also

features all the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200

Modes Supported

Besides the regular PWM mode,

Oneshot125/Oneshot42/Multishot modes,

the latest DShot150/300/600 modes are

also supported.

Super-Fast Operating Speed

The STM32F405 MCU which features the powerful

computing capacity and super-fast operating speed can

support the PID controller with higher cyclic frequency &

the gyro with higher refresh rate.

Built-in BEC & OSD

The built-in BEC (5V/1.5A) can provide

power for various electronic devices;

the internal OSD allows users to adjust

or set all OSD parameters via the

Betaflight/Cleanflight software easily.

Betaflight/Cleanflight Firmware Supported

The flight controller supports the Betaflight/Cleanflight firmware and allows users

to adjust or set various parameters via the Betaflight/Cleanflight software easily.

It's more applicable to the FPV flight & racing.

Compatible with 4in1 ESC

When pairing the Nano Flight Controller F4 with the 4in1 ESC,

the wiring & installation can be very simple and easy.
