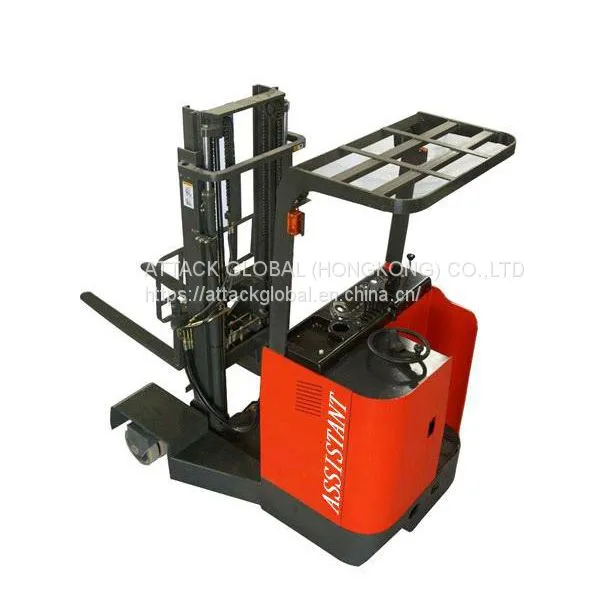

Electric Fork Reach Truck

Drive type

battery

battery

Capacity/Rated load

Q(kg)

1000

1000

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

123

123

Tyre size, front

mm

280×82+160x60x2

280×82+160x60x2

Tyre size, rear

mm

125×82(4)

125×82(4)

Wheels, number front rear(x=driven wheels)

1x+2/4

1x+2/4

Tilt of mast/fork carriage forkward/backward

Grad

2-5

2-5

Height,mast lowered

h1(mm)

2125/2375/2625

2185/2345/2505/2675/2840

Free lift

h2(mm)

~

1575/1700/1825/2000/2125

Max.lift height

h3(mm)

3000/3500/4000

4500/5000/5500/6000

Height, mast extended

h4(mm)

3000/3500/4000

4500/5000/5500/6000/6500

Height of overhead guard

h6(mm)

2246

2246

Length to face of forks

l2(mm)

1726

1750

Overall length

l1(mm)

2585

2609

Overall width

b1/b2(mm)

1298/1040

1298/1040

Fork Dimension

s/e/l(mm)

40/100/1070

40x100x1070

Reach distance

l4(mm)

1200

1200

Fork height, lowered

h8(mm)

130

130

Distance of “X”(see below diagram)

mm

450

450

Overall length(excluding the fork)

mm

2023

2023

Ground clearance, centre of wheelbase

m2(mm)

49

49

Aisle width for pallets 1000×1200 croossways

Ast(mm)

3110

3131

Aisle width for pallets 800×1200 lengthways

Ast(mm)

3197

3220

Turning radius

Wa(mm)

1848

1848

Travel speed, laden/unladen

Km/h

6.5/7

6.5/7

Lift speed, laden/unladen

m/s

0.2/0.3

0.2/0.3

Lowering speed, laden/unladen

m/s

0.32/0.312

0.32/0.312

Battery voltage,nominal capacity K5

V/Ah

36/700

36/700

Battery weight

Kg

810

810

Battery dimensions l/w/h

mm

978x395x765

978x395x765

Service weight(with battery)

kg

3460/3510/3560

3700/3800/3900/4000/4100
