Home > Products > Stainless Steel > Manganese Steel Strip Thickness 0.1mm-50 Manganese Steel Sheet Quenching/dipping Fire/laser 65mn Steel

Manganese Steel Strip Thickness 0.1mm-50 Manganese Steel Sheet Quenching/dipping Fire/laser 65mn Steel

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Manganese steel strip thickness 0.1mm-50 manganese steel sheet quenching/dipping fire/laser 65mn steel

MANGANESE STEEL

Manganese steel, also known as manganese alloy steel, is a kind of high-strength steel. It is mainly used to withstand harsh working conditions such as impact, extrusion and material wear. The damage form is mainly wear consumption, and some parts are broken and deformed. Now it is generally applicable to the lower guard plate of the engine.

Specification

Name	Manganese steel strip
Grade	200/300/400 Series
Model Number	201/304/409/410
Standard	A240M, EN10088-2, JIS, GB3280
Thickness	0.1-1.2mm
Width Range	10-1000-1250mm
Surface Finish	304 BA / NO.4 / 2B / 304L 2B . 304 2D (1/2H, 3/4H, H) / 304 (1/2H, 3/4H, H)
Export to	India, Indonesia, Japan, Korea, Pakistan, Russia, Turkey, Vietnam, etc.
Application	Hypodermic needle, Hose clamp, Spiral spring, Flexible hose, Button battery, Computer fittings, Cell phone parts, Stamping parts,Photo etching, Electronics, Bathroom decoration, Elevator decoration, Hotel decoration, Kitchen equipment, Kitchen sink,etc.
Lead time	Abt 30 days (Please confirm with the seller before placing an order)
Payment terms	T/T, L/C, D/P
Packing	Factory standard export packing (according to customer's request)

Product Details

The most important feature of high manganese steel is that under the condition of strong impact and extrusion, the work hardening phenomenon occurs rapidly on the surface layer, so that the hardened layer has good wear resistance while maintaining the good toughness and plasticity of austenite in the heart. This is beyond other materials. However, the wear resistance of high manganese steel shows its advantages only when it has enough conditions to form work hardening, and it is very poor in other cases.

The typical mn17 wear-resistant high manganese steel increases the amount of manganese on the basis of Mn13 steel, improves the stability of austenite and prevents the precipitation of carbide, which can improve the strength and plasticity of the steel and improve the work hardening ability and wear resistance of the steel. For example, the service life of zgmn18 railway fork used in the north is 20% ~ 25% higher than that of ZGMn13.

workmanship

Due to work hardening of high manganese steel, machining of castings should be avoided as far as possible. The holes and grooves on the casting shall be cast as far as possible. However, the processing of high manganese steel is not completely impossible. Tool dressing can be carried out after one feed. For inevitable machining, the machining amount should be enlarged in the casting process design to make the machining feed avoid the work hardening layer.

Surface Treatment

The temper of manganese steel is very strange and interesting: if 2.5-3.5% manganese is added to the steel, the low manganese steel is as brittle as glass and will break when knocked. However, if more than 13% manganese is added to make high manganese steel, it will become both hard and ductile. When heated to light orange, high manganese steel becomes very soft and easy to process. In addition, it has no magnetism and will not be attracted by magnets. At present, manganese steel is widely used to make frequently worn components such as steel mills, ball bearings, buckets of bulldozers and excavators, as well as rails and bridges. The roof of the auditorium of Shanghai's new cultural square adopts a novel grid structure and is welded with thousands of manganese steel pipes. In the 76 meter vertical and 138 meter horizontal fan-shaped hall, there is no column in the middle. Because manganese steel is used as the structural material, it is very strong, and the materials are less than other steels. On average, only 45 kg of manganese steel is used for the roof per square meter. In 1973, Xingjian's Shanghai Gymnasium (containing 18000 people) also used manganese steel as the structural material of the grid roof. In military affairs, high manganese steel is used to make steel helmets, tank steel armor, warheads of armor piercing bullets, etc. When smelting manganese steel, it is made by mixing soft tin ore containing 60-70% manganese with iron ore

Product Process

When the high manganese steel is reheated, there is a brittle temperature range of carbide precipitation between 250-800 ° C, and there are network carbide and casting stress in the as cast high manganese steel. Therefore, the welding performance is very poor. For high manganese steel castings, the riser shall be cut or defects repaired by welding after water toughening treatment, and the castings shall be cooled quickly after welding. In order to eliminate or minimize the heat affected zone, small current, discontinuous welding, or watering while welding shall be applied for cooling. The welding rod adopts high manganese steel welding rod or austenitic stainless steel welding rod. If work hardening exists, it shall be removed before welding.

Packing & Delivery

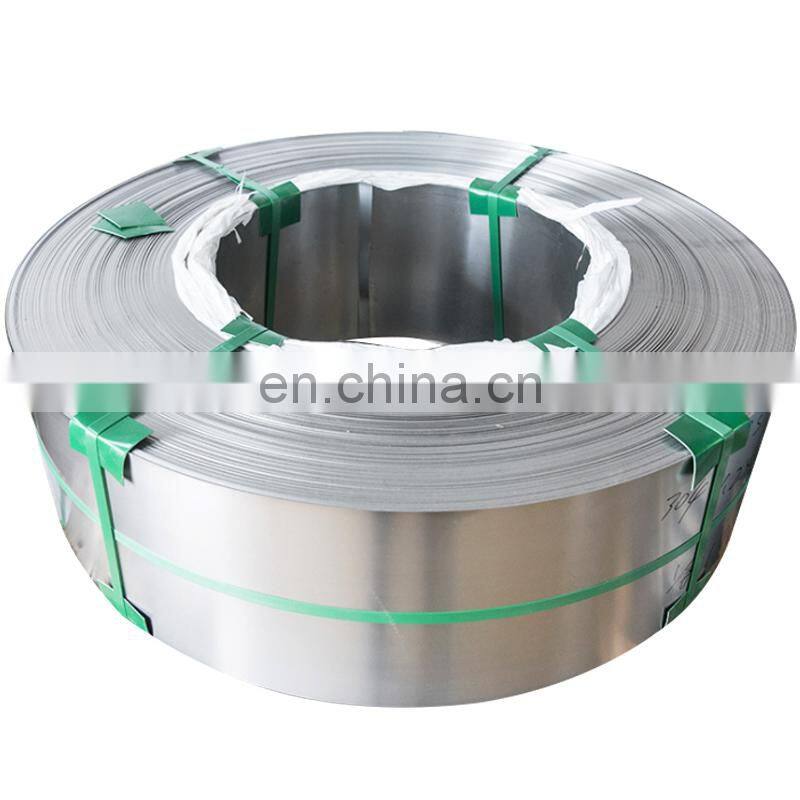

Packaged with water proof paper, inner protective steel ring, protective wood block, metal band strapping.

Company Profile

Shandong Ganquan Trading Co., Ltd., located in Jinan, the beautiful capital of Shandong Province, is a company integrating steel export and customized design. The company's main products: H-section steel, I-beam, angle steel, channel steel, flat steel, round steel, galvanized profile, stainless steel and p-section steel. Our precision cold-rolled pipe series has smooth appearance and no oxide layer. It is widely used in automobile manufacturing, petrochemical industry, aerospace, boiler equipment, medical equipment and other industries. Comply with Chinese national standard (GS) and American Standard ASTN. The company has advanced product testing instruments, excellent marketing team and domestic channel partners, and has a perfect management plan for product market development and product after-sales service. The sales network and product sales agencies are all over the country. Strong and professional R & D team and advanced and perfect sales and service concept make our products have high popularity and market share at home and abroad. At the same time, we will always adhere to the principle of "reputation first, customer first", always put the interests of customers first, and wholeheartedly provide each of our customers with the best products and the best service. We look forward to working with friends all over the world to create a better future!

FAQ

Q: Are you trading company or manufacturer ？ A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products. Q: Will you delivery the goods on time? A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't. Q: Do you provide samples ? Is it free or extra ? A: The samples are free,you just need to pay the courier freight. Q: How could you guarantee your products? A: Products are manufactured by certified workshops, inspected by professional inspector. We also issuethe warranty MTC to guarantee the quality. Q: How do we trust your company? A: We specialized in steel business for many years, authenticated by SGS,welcome to visit our factory. Q: What's your advantages? A: Our own production lines make the good prices and high quality possible and seasoned workers serve you 7*24 hours.
