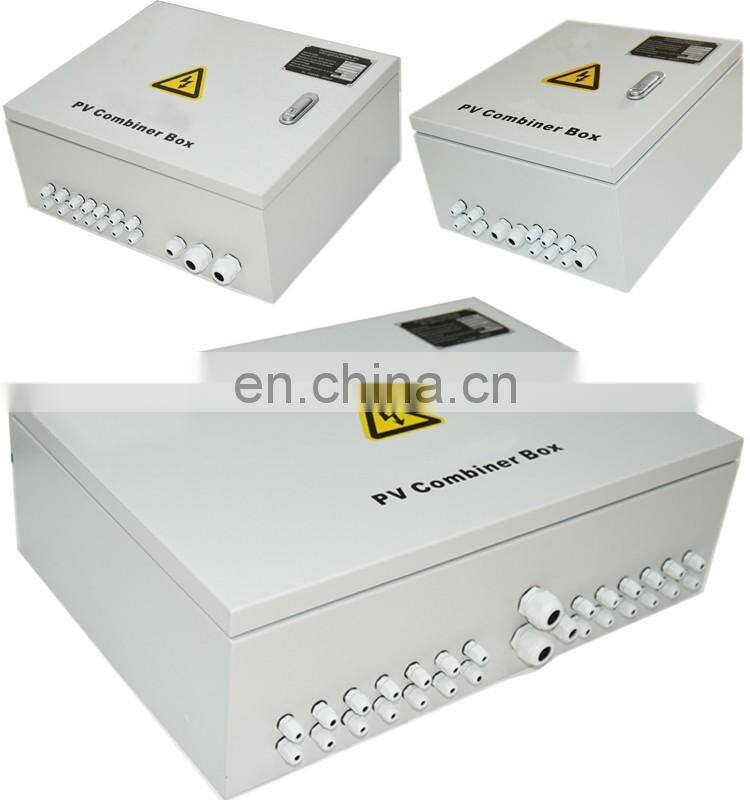

8 Input,1output PV Lighting Protection Combiner Box for Solar Panels

DC1200V 40kA IP65 4 in 1 out Solar PV Array Junction Combiner Box

For large-scale PV grid connected power generation power system, in order to reduce the connecting lines between PV modules and inverter, easy maintenance and  improve the reliability, generally it needs to increase the DC bus system between photovoltaic modules and inverter. This PV combiner box is specially designed to meet this requirement, it can match with inverter products to compose complete PV system solution. DK-PV series PV combiner box, there are surge protective device(SPD)in the output terminal, which can protect the DC fuse cutout of the PV combiner box, inverter and other terminal equipments, to ensure the whole PV power generation system operate long-term and steadily.

PV Power Generation System with PV Lightning Protection Combiner Box is as follow:

Main Function

1. Simultaneously access multipath solar power photovoltaic array, rated current of each line can reach 10A, IMax 15A, which can meet the requirements of different clients.

2. Equipped with DC fuse cutout in each input line  to avoid system damage from over-current, make sure the system can operate steadily.

3. Equipped with DC high voltage lightning protection module in the output terminal, which can tolerate Max40kA lightning current.

4. Adopt high voltage breaker, the DC withstand voltage is not lower than DC1000V, safe and reliable.

5. With high power anti-reflaction device, which can avoid the countercurrent flowing backward due to the malfunction.

6. Protection level is IP65, which meets the using requirement of outdoor installation.

Technical Parameter

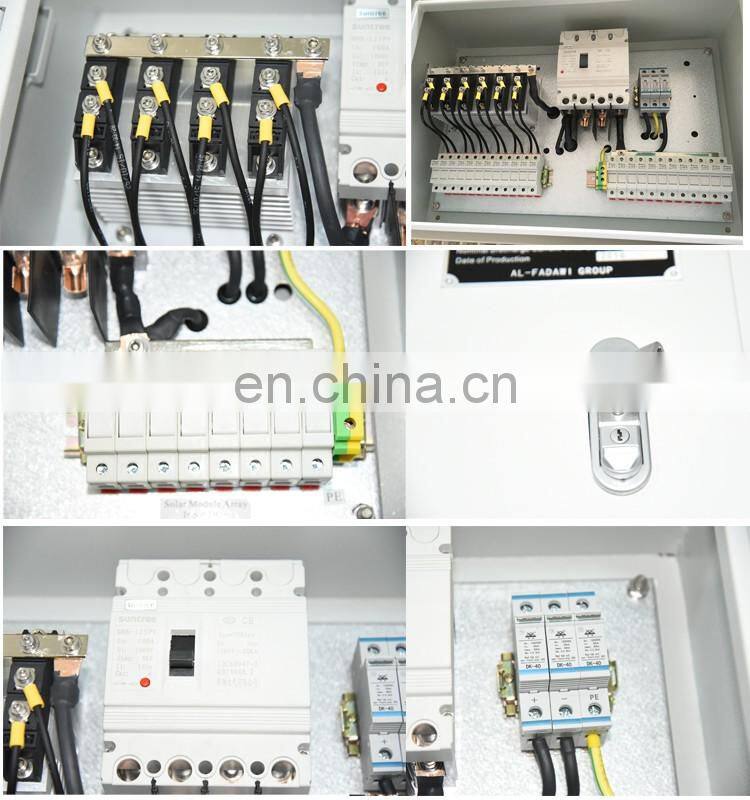

Production Details

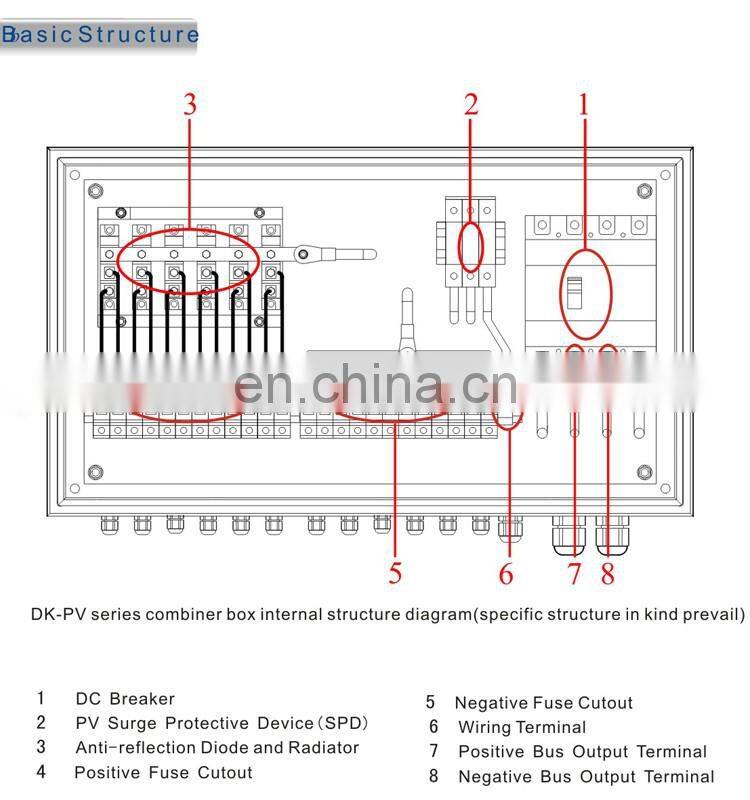

Internal Structure

Production Plant

About Guangxi Dikai Sci&Tech Co., Ltd.

Guangxi Dikai Sci&Tech Co., Ltd. was established in 1989,  is mainly specialized in lightning protection, PV Solar energy, with more than 28 years experiences. We are providing high quality products with very competitive price, prompt delivery and excellent service. We can also provide supports for large projects such as power station, gas station,  railway station, etc. OEM and ODM are acceptable.

We are looking forward to cooperation with overseas clients based on mutual benefits.

Our Advantages

-More than 27 years specialized.
-25,000 square metres industrial park.
-More than 100,000 cases project services.
-Five series products, more than 160 items.
-ISO ,OHSAS & CE certificated.
-CNAS National Laboratory.

Certificates
