2 in 1 CCTV Camera Combined Surge Protective Device
(8/20μS Class II Testing 10kA)
1. Product Introduction
DK-DS/m CCTV camera series combined surge protective device(SPD) is designed according to IEC standard. It is suitable for lightning protection of power and video transmission. With features of combined power and video connectors, high discharge capacity and fast response, it can effectively ensure the equipment to work properly.

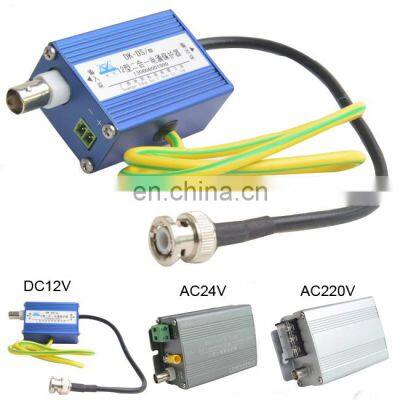

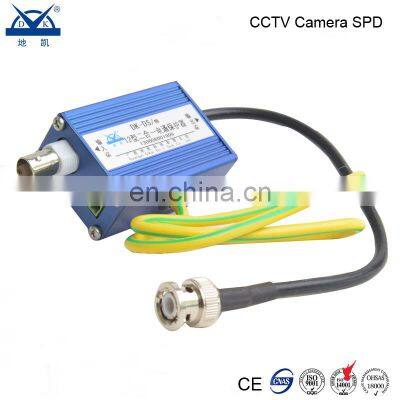

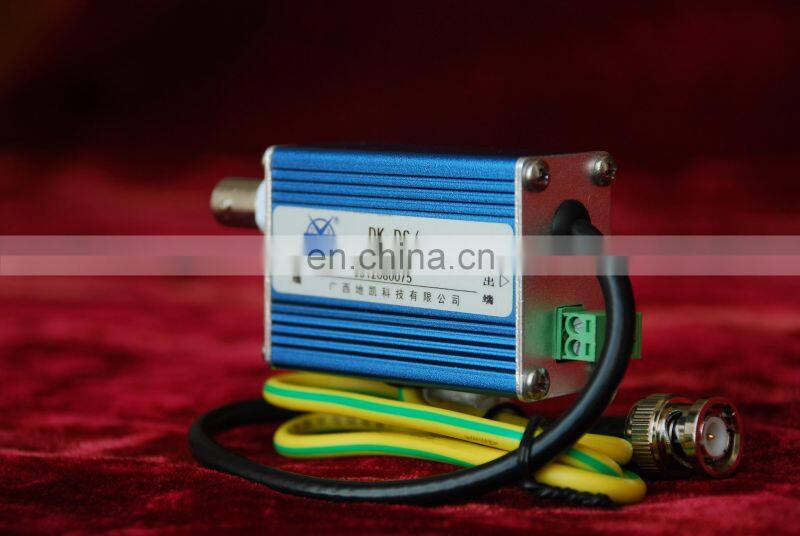

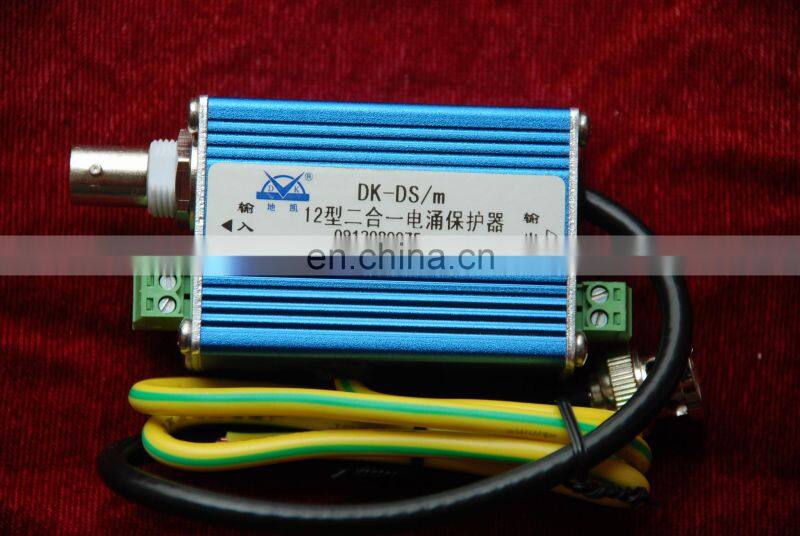

2. External View
3. Technical Parameter
|
Power Line Lightning Protection Characteristic |
|
|
Nominal Discharge Current In(8/20µs) |
10kA |
|
Maximum Discharge Current In(8/20µs) |
20kA |
|
Respond Time tA |
≤10ns |
|
Maximum Load Current |
10A |
|
Video Line Lightning Protection Characteristic |
|
|
Voltage Protection Level (8/20µs) |
<150V |
|
Rated Working Voltage Un |
1V |
|
Maximum Continuous Working Voltage Uc |
8V |
|
Nominal Discharge Currents In(8/20µs) |
10kA |
|
Maximum Discharge Current In(8/20µs) |
20kA |
|
|
≤30V |
|
Respond Time tA |
≤1ns |
|
Type of Connector |
BNC |
|
Working Environment Characteristic |
|
|
Material of Shell |
Aluminum |
|
Protection Level of Outer Shell |
IP20 |
|
Working Temperature |
–25~+70℃ |
|
Relative Humidity |
95%RH |
4. Item No.
|
Item No. |
Un |
Uc |
Up |
|
DK-DS/m 12 |
DC12V |
DC18V |
100V |
|
DK-DS/m 24 |
AC24V |
AC36V |
450V |
|
DK-DS/m 220 |
AC220V |
AC275V |
900V |
5. Dimension
6. Wiring Diagram
7. Application Scope
1) 12V/24V/220V power supply video camera.
2) Fixed installed camera.
3) Combined power and video signal lightning protection together.
OEM support, contact us if you need.
