Product Description
wooden toothpicks product line bbq stick making machine
Brief Introduction of bbq stick making machine:

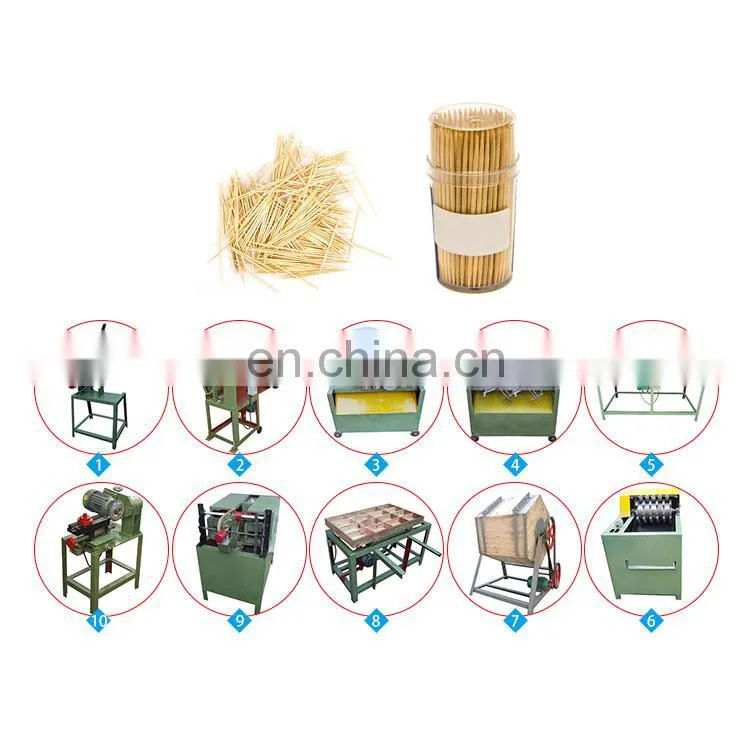

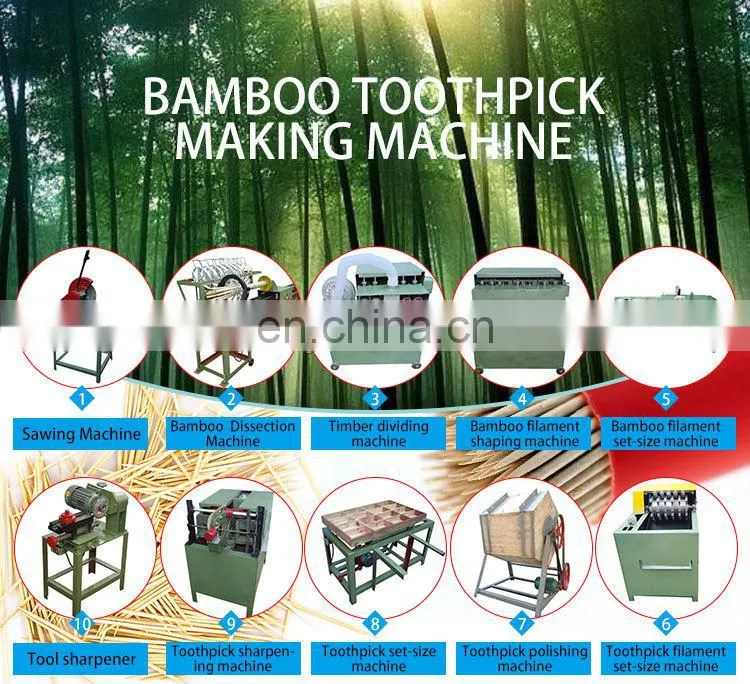

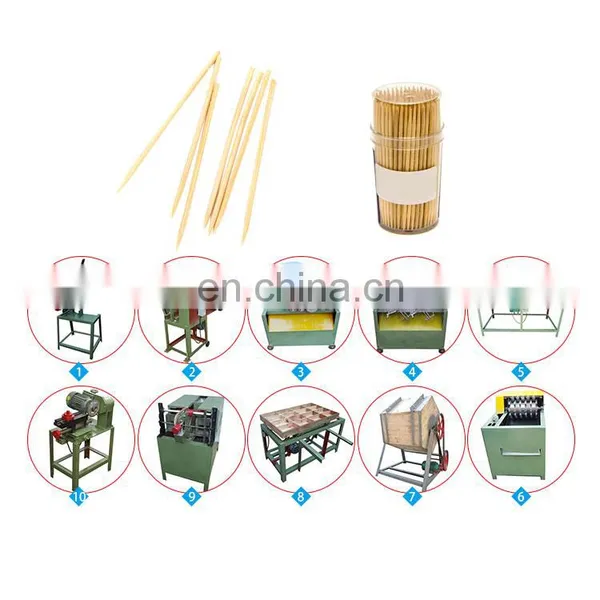

The production series include the wood toothpick machine and bamboo toothpick machines.Toothpick Machine is composed of 7 machines which is used for producing wooden and bamboo toothpicks from square timber to finished products.
:
Toothpicks Making Machine includes 10 machines totally.
v Raw bamboo sawing
v Bamboo dissection machine
v Fixed thickness and width slicer
v Bamboo filament shaping machine
v Bamboo filament set-size machine
v Toothpick set-size machine
v Polishing machine
v Toothpick sorting machine
v Tooth pick mincing machine
v Sharpen machine
The specification of toothpicks production Line:
Item | Model | Power(kw) | Weight(kg) | Outsize(mm) | |
Raw bamboo sawing | TZ-101 | 2.2 | 65 | 900*510*930 | |
Bamboo dissection machine | TZ-102 | 3.0 | 630 | 3000*850*1200 | |
Fixed thickness and width slicer | TZ-103 | 3.7 | 450 | 1460*660*1000 | |
Bamboo filament shaping machine | TZ-104 | 9.1 | 450 | 1050*650*990 | |
Bamboo filament set-size machine | TZ-105 | 0.75 | 85 | 1500*650*990 | |
Toothpick set-size machine | TZ-108 | 2 | 210 | 900*600*800 | |
Polishing machine | TZ-109 | 1.5 | 120 | 1000*800*1200 | |
Toothpick sorting machine | TZ-110 | 0.55 | 65 | 530*1000*800 | |
Tooth pick mincing machine | TZ-111 | 2.75 | 260 | 900*570*1010 | |
Sharpen machine | TZ-107 | 0.55 | 65 | 370*330*720 |

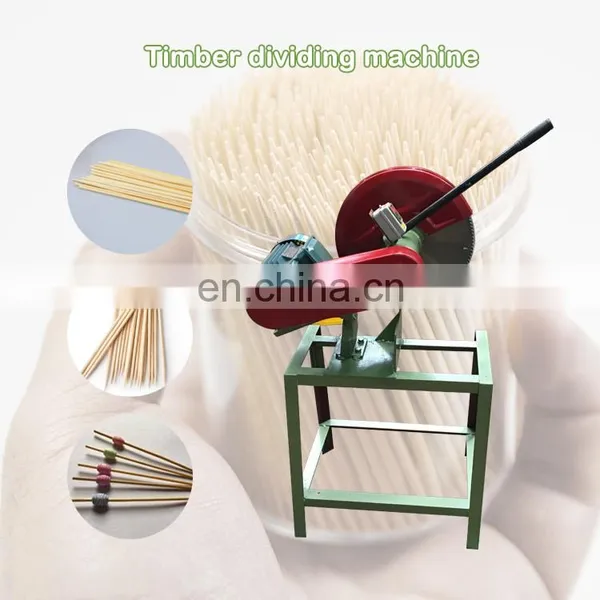

1.Raw bamboo sawing
Usage: Sawed used for feeding and cutting bamboo, better length is 1-1.2m

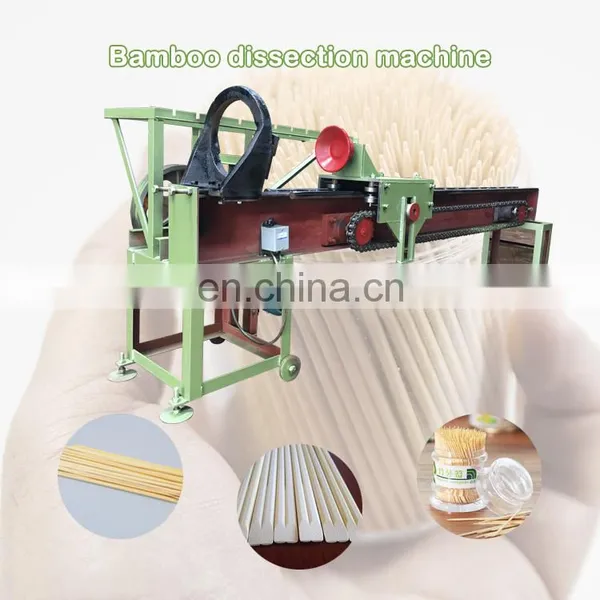

2.Bamboo dissection machine
Usage: Dissection cutter head(9-18heads)total 10, put the finished bamboo into the suit cutter head according
to the size and Polish them into bamboo flakes, width from 20mm to 22mm, speed of feeding is 57m/min
3.Fixed thickness and width slicer
Usage: Put some of the flakes into this machine and flake, width is 3-4mm, speed of
feeding is 87m/min
4.Bamboo filament shaping machine
Usage: Put the polished bamboo flakes into this machine and make it
5. Bamboo filament set-size machine
Usage: The normal standard is 2*2.2mm, speed of feeding is 87m/min
6. Toothpick set-size machine
Usage: Set the filament, length of 34mm
7.Polishing machine
Usage: Polish the raw toothpick after the set-size
8.Toothpick sorting machine
Usage: Saw web300mmX120T, the normal length of toothpick is set 65mm

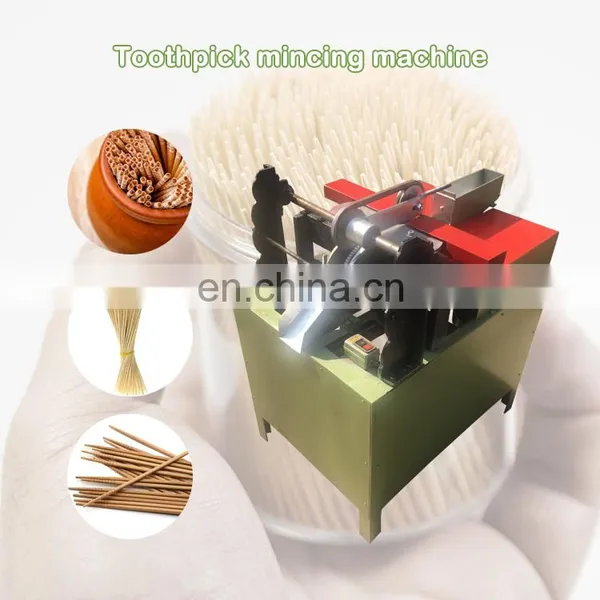

9. Toothpick mincing machine
Usage: Sharp the toothpick, feeding automatically, 1500PCS/min

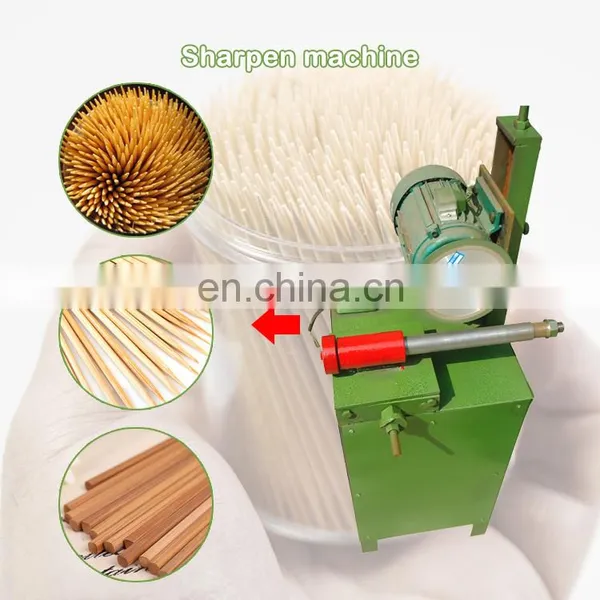

10.Sharpen machine
Usage: Special for a divided slice and set-sized raw web
Remarks: This machine is used for two head point type bamboo toothpicks.
Normal specification :dia 2.0mm,length 65mm.
The capacity of the entire production line: 800,000 sticks/ 8hours.
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
Zhengzhou Shuliy Machinery Co., Ltd was found in 2000. Our company specializes mainly produce Recycling and environmentally friendly processing machines, cardboard shredder machine, egg tray making machine, woodworking machine, aerators, toothpicks making machine, feed processing machinery, charcoal processing machinery and so on. We not only provide customers with cost-effective products, but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
