5MP 40X PTZ Optical Zoom Pan Tilt Rotation HD 4G SIM Card IP 360 6 Inch Camera Outdoor Speed Dome PTZ Camera Wireless

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Wireless PTZ 5MP WIFI 3G 4G SIM Card Security IP Camera HD CCTV 40X Optical Zoom Outdoor Home Surveillance Cam CamHi 360 degree infinite rotation High Speed Dome 300m night vision

Features :

Support AI Human Feature Tracking&Automatically Zoom
40X Zoom Auto Focus Lens(4.7-141mm 30X Optical+10X Digital)
Support WIFI/4G (Depends on the models you choose,See Detail on Specification )

4G Version support Multi-network. 4G, WIFI, and RJ45 wired networks are available (4G and WIFI can not work at the same time, the default 4G mode; WIFI mode requires manual switching).

WIFI Version only support WIFI AND RJ45 wired networks(NOT SUPPORT 4G NETWORK)
Support HD 5MP (2560*1920) 20 frame rate High quality resolution
6pcs Array Infrared LEDs（4pcs Adjustable high power laser infrared LED）

6pcs White light LEDs Full color night vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF card, up to 256G(Don't included TF Card)
Pan tilt rotation, horizontal:360° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi/Camhipro)
Support 8 preset points , zoom lens status can be saved during the preset
Support Cruise Zoom /Auto Tracking AI Human Detection
Metal Housing Material,Outdoor Use,Waterproof IP66

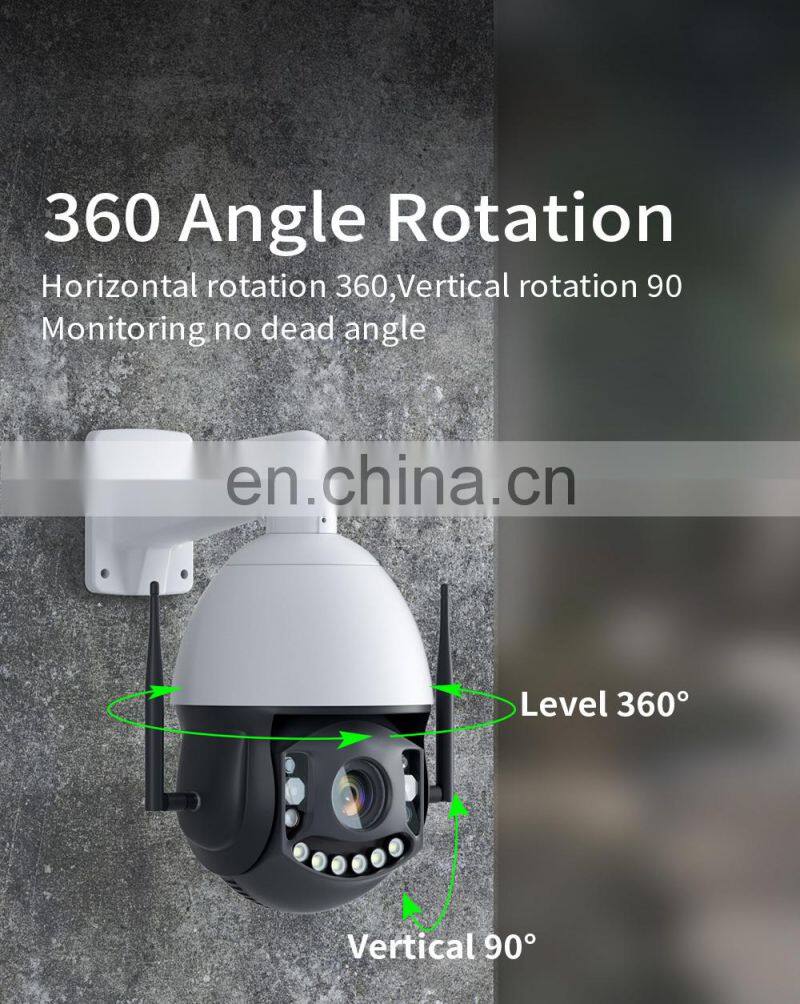

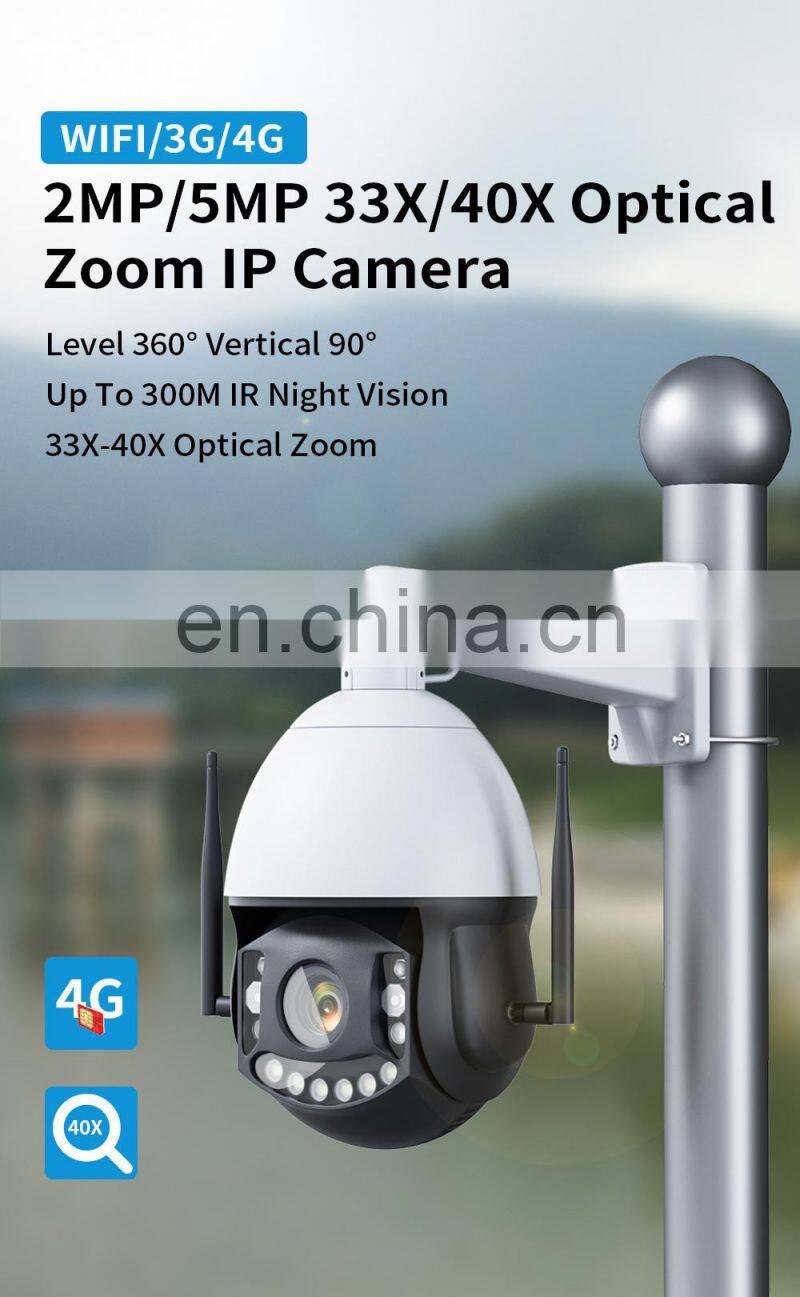

REAL 360 Angle Rotation

Horizontal rotation 360(Infinitely rotatable in the same direction) ; Vertical rotation 90 ;
Monitoring no dead angle.

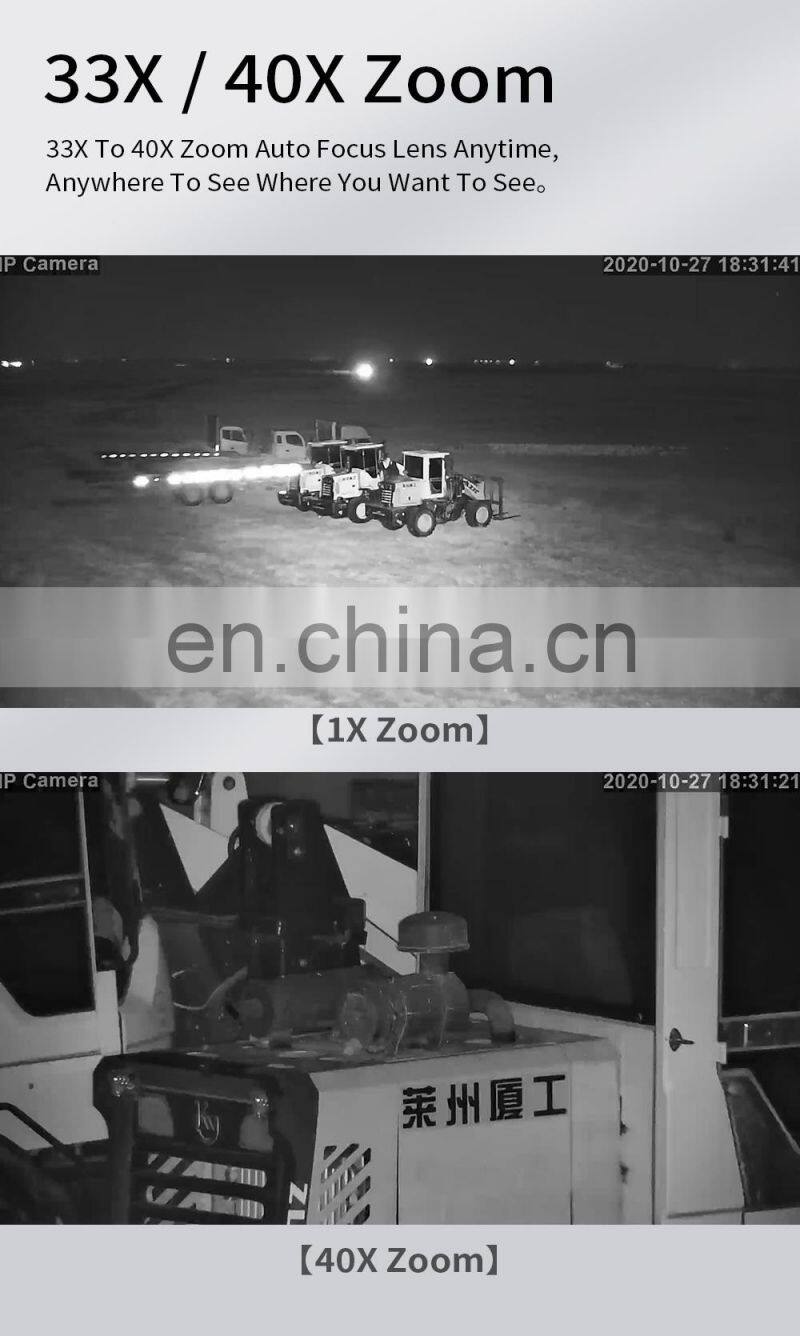

40X Zoom

40X Zoom Auto Focus Lens Anytime,Anywhere To See Where You Want To See.
(Note : This link is 40X zoom camera )

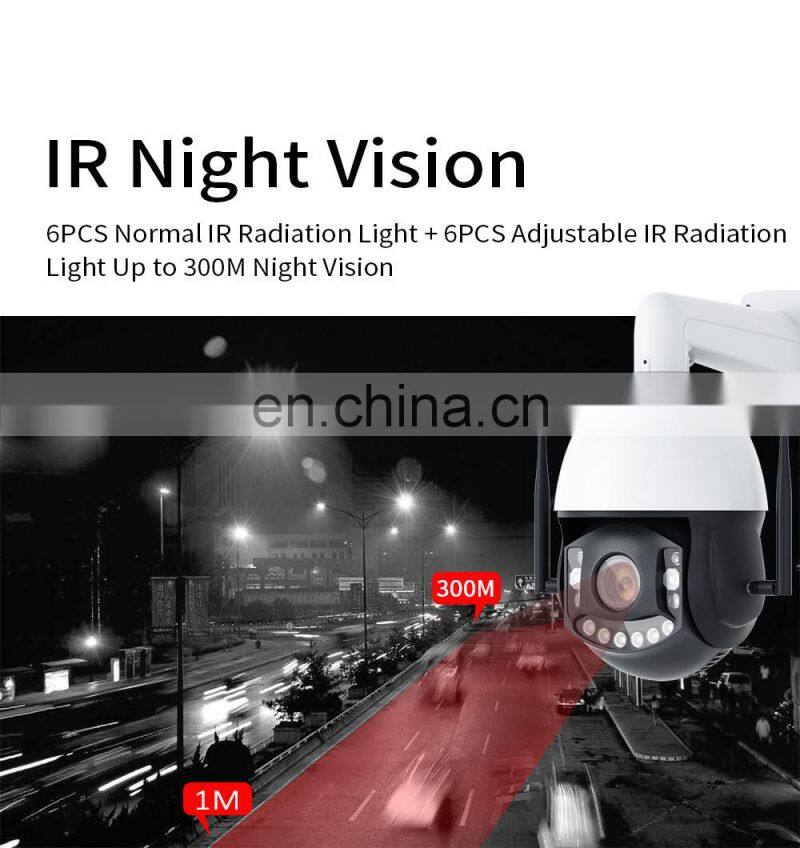

IR Night Vision

Support infrared and full color night vision mode.
6pcs Array Infrared LEDs（4pcs Adjustable high power laser infrared LED）, 6pcs White light LEDs .

With an intelligent brightness adjustment system that enables automatic brightness adjustment based on distance, it is possible to obtain quality images at night from a distance of up to 300 meters.
( Note : Night vision range and clarity vary depending on installation environment, weather, whether there are shades, reflective objects and other factors.)

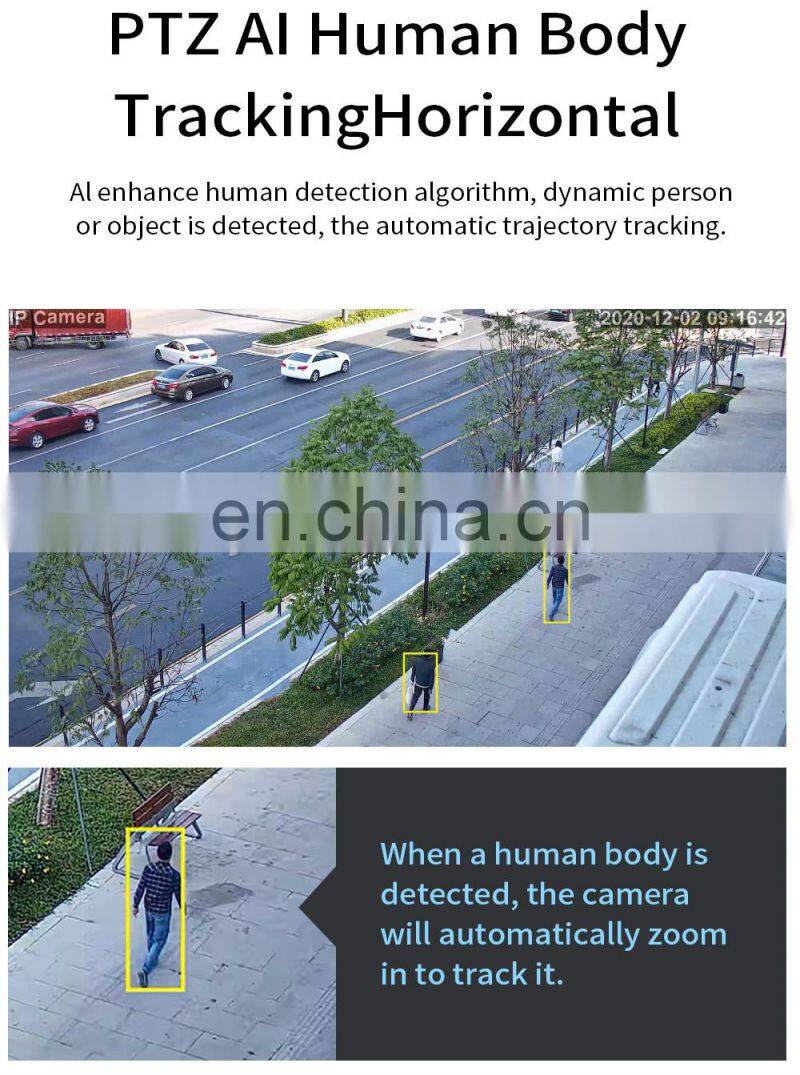

PTZ AI Human Body Tracking

AI enhance human detection algorithm,dynamic person or object is detected,the automatic trajectory tracking.Linkage can trigger alarm pushing and alarm ringing to warn intruders.Can reduce invalid alarm triggers compared to moving object detection.

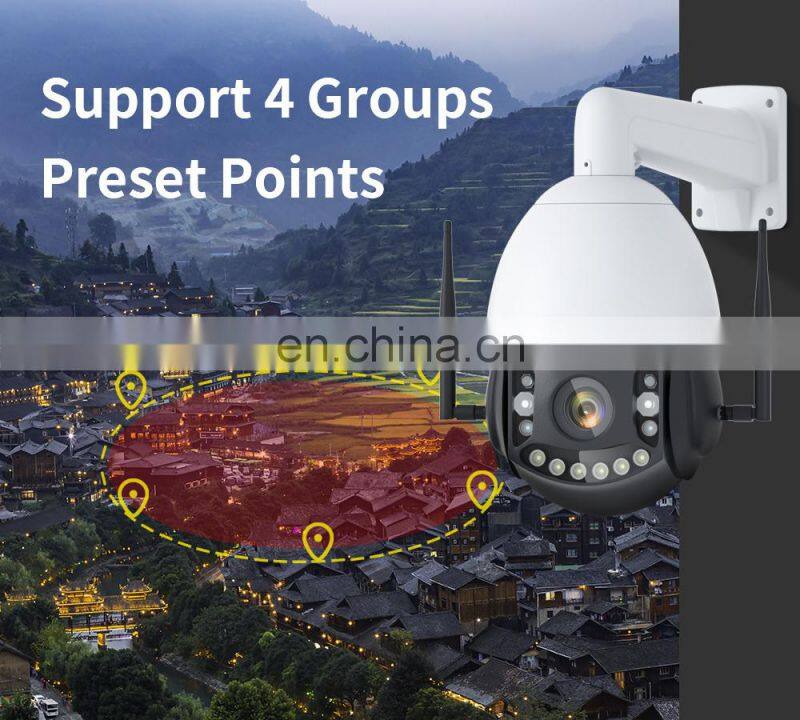

Support 4 Groups Preset Points

Camera can make the camera quickly locate the preset points, mean while the zoom lens status can be saved during the preset.

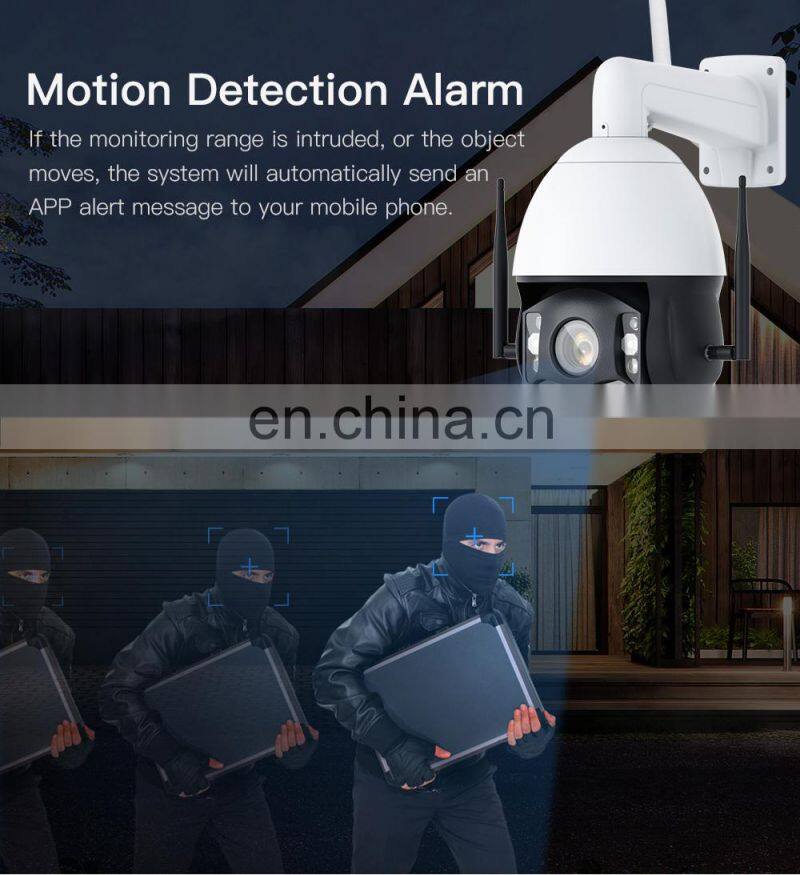

Get Real-Time Alerts That Matter

When invasion happens without your permission, this camera will send real time alerts to your App or email account, and record on SD card. Protect your home and business effectively from burglars, intruders and break-ins.Used in conjunction with AI human detection, used for humanoid moving object alarm use to reduce false alarms caused by other factors.

Two-way Audio

Equipped with microphone and speaker, at any time you can remotely view or talk to your pet, dog, family, employee,etc

4G mode switch to WIFI mode instructions

4G Version support Multi-network. 4G, WIFI, and RJ45 wired networks are available (4G and WIFI can not work at the same time, the default 4G mode; WIFI mode requires manual switching).If you need to use WIFI mode, please follow the method shown below to switch to WIFI mode.

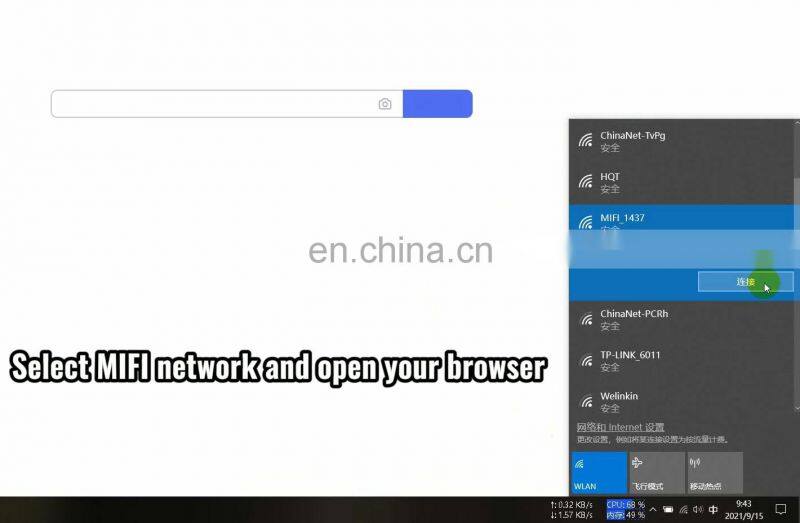

1. Use your computer or cell phone WIFI to connect to the camera MIFI hotspot.

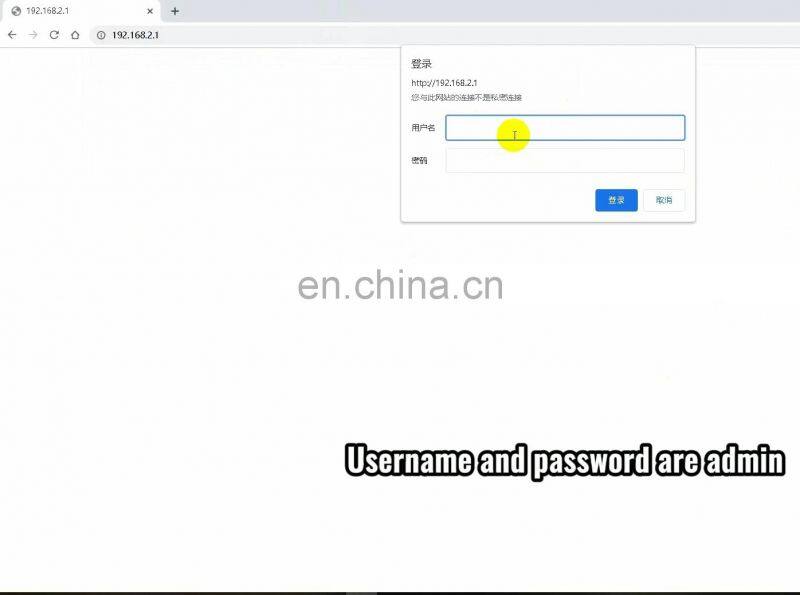

2.Enter the camera address 192.168.2.1 in the browser. In the pop-up window, enter username ：admin , password ：admin

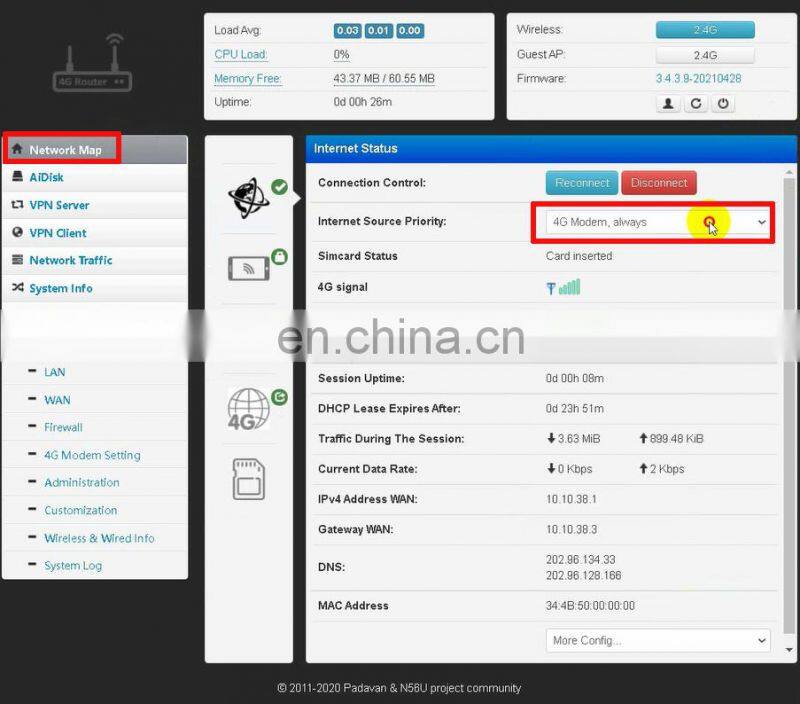

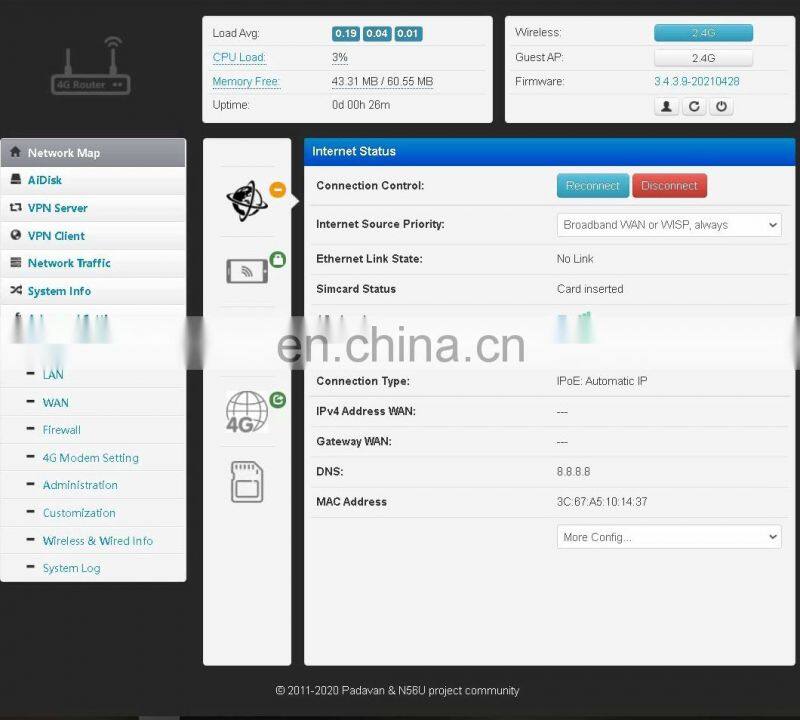

3.In the management interface , Select : Network Map ------ Internet Source Priority ------ Broadband WAN or WISP.

4. After selection, the mode will switch automatically.

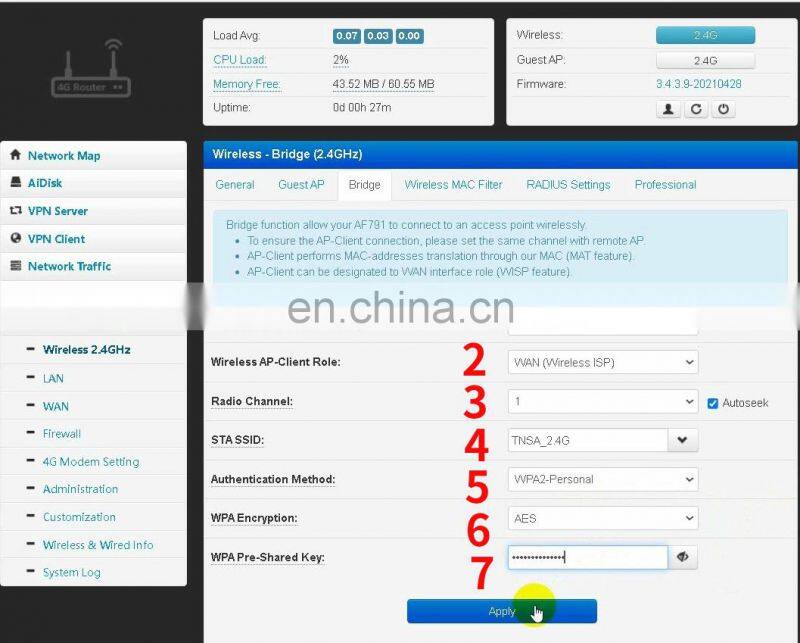

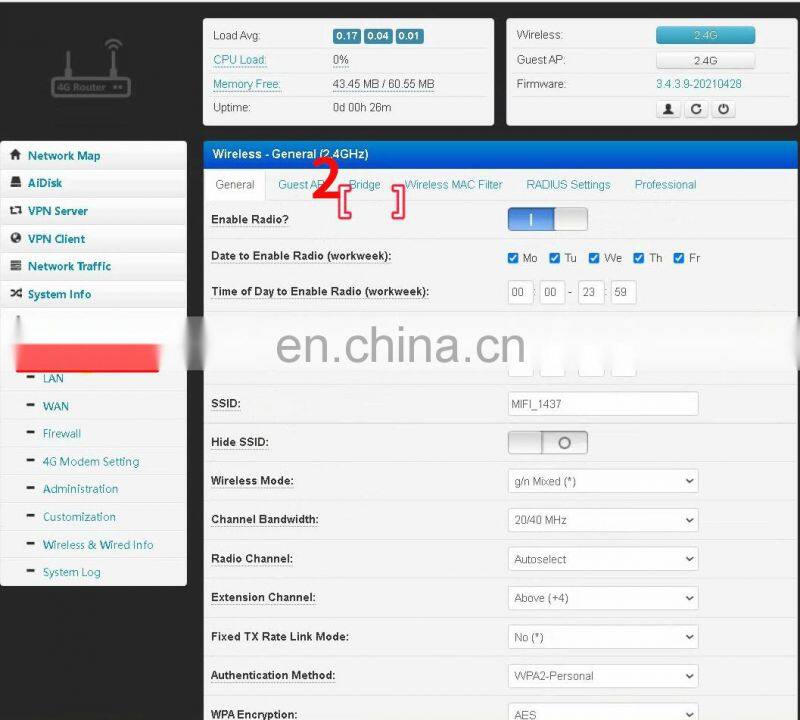

5.In the management interface , Select : Wireless 2.4GHz ------Bridge.

6.Please select and set the top icon number: 1, 2, 3, 5, 6 as shown above. For the 4th item, please select the WIFI SSID of your home, and for the 7th item, please fill in the correct WIFI password. Then, select Accept and wait for the camera to reboot and then you can use it. If you are the first time to use the state of the camera, please scan the code way to add the camera.

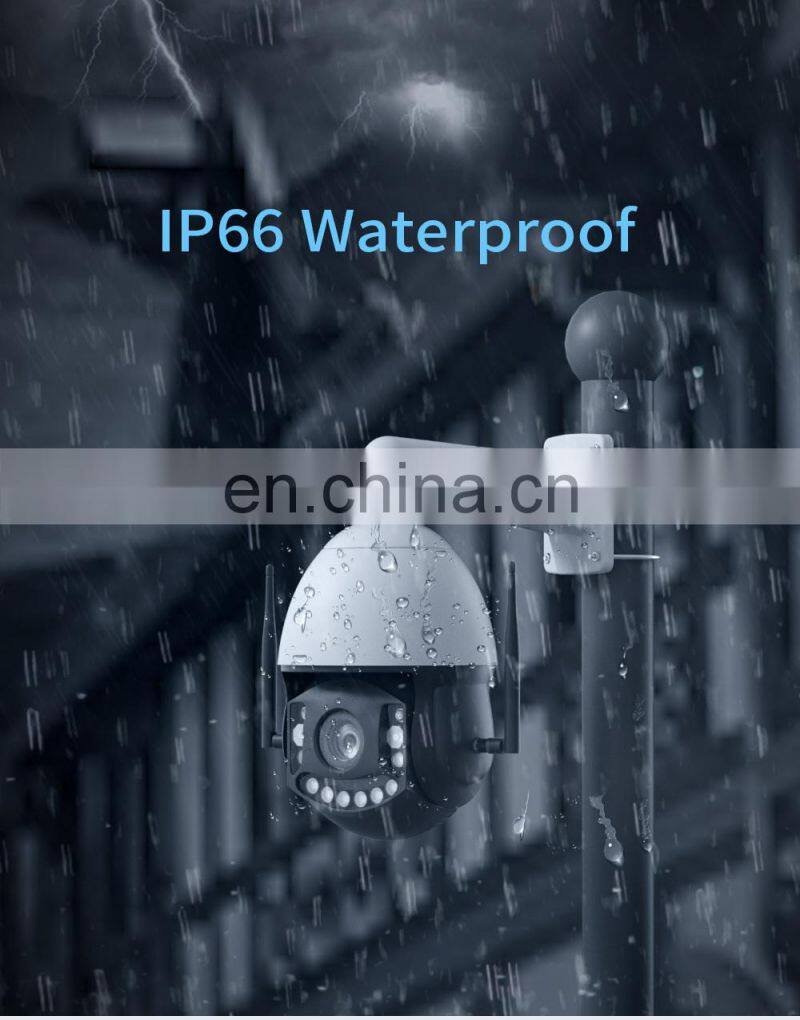

Support IP66 Waterproof and Cold Weather.

Outdoor camera with waterproof body and power adapter, work temperature minus -40 degrees Celsius to 60 degrees Celsius.

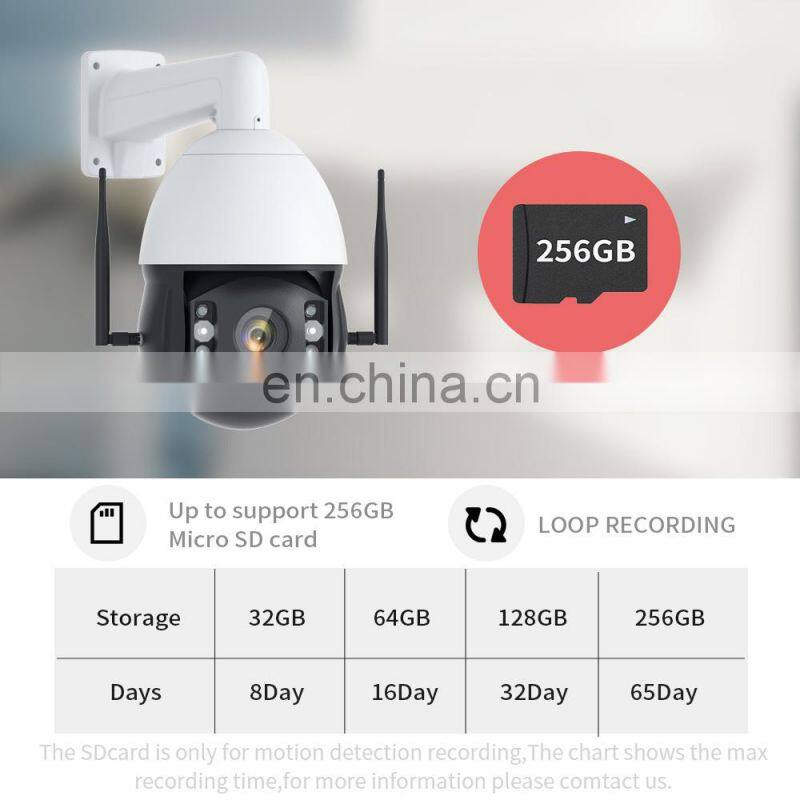

TF Card Storage

UP TO SUPPORT 256GB TFCard

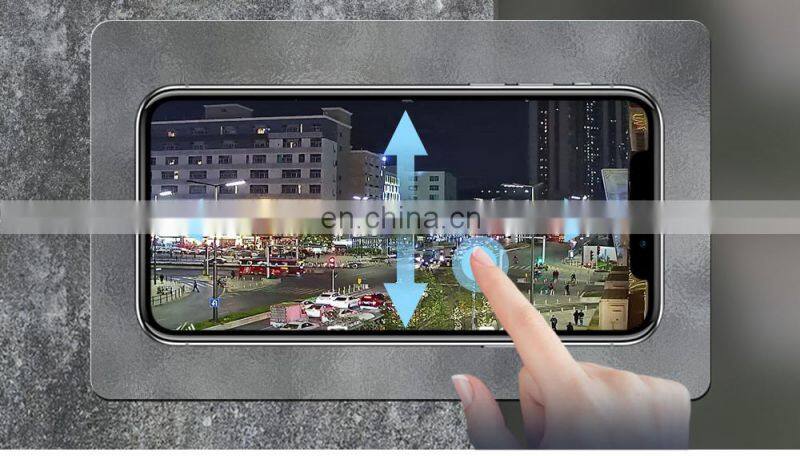

Remote Viewing, Anytime, from Anywhere

40X Optical Zoom Wireles 4G Camera,no matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: free CamHipro App on your mobile device.

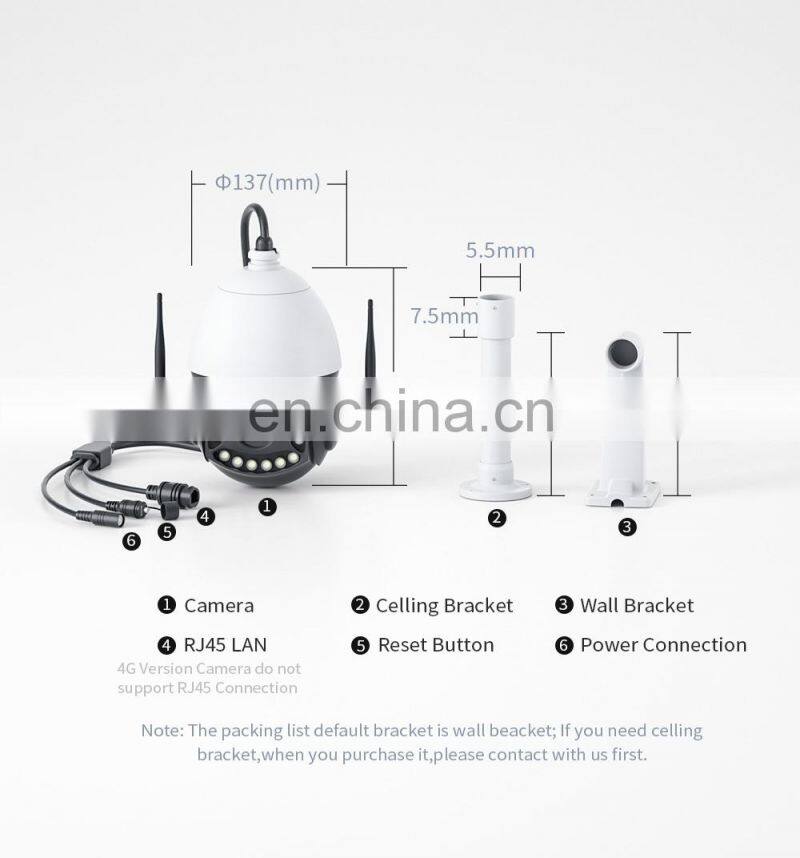

Camera Size :

Package:

1Pcs * WIFI / 4G security camera
2Pcs * Antenna

1Pcs* RCA Speak
1Pcs * Power Adapter
2Pcs * Screw Bag
1Pcs * Manual
1Pcs * Side Mount Wall Bracket .(Celling Bracket NOT INCLUDE)

1Pcs*Anti-dislodging two-way hook
(Note: If you need Celling Bracket,please contact with us.)

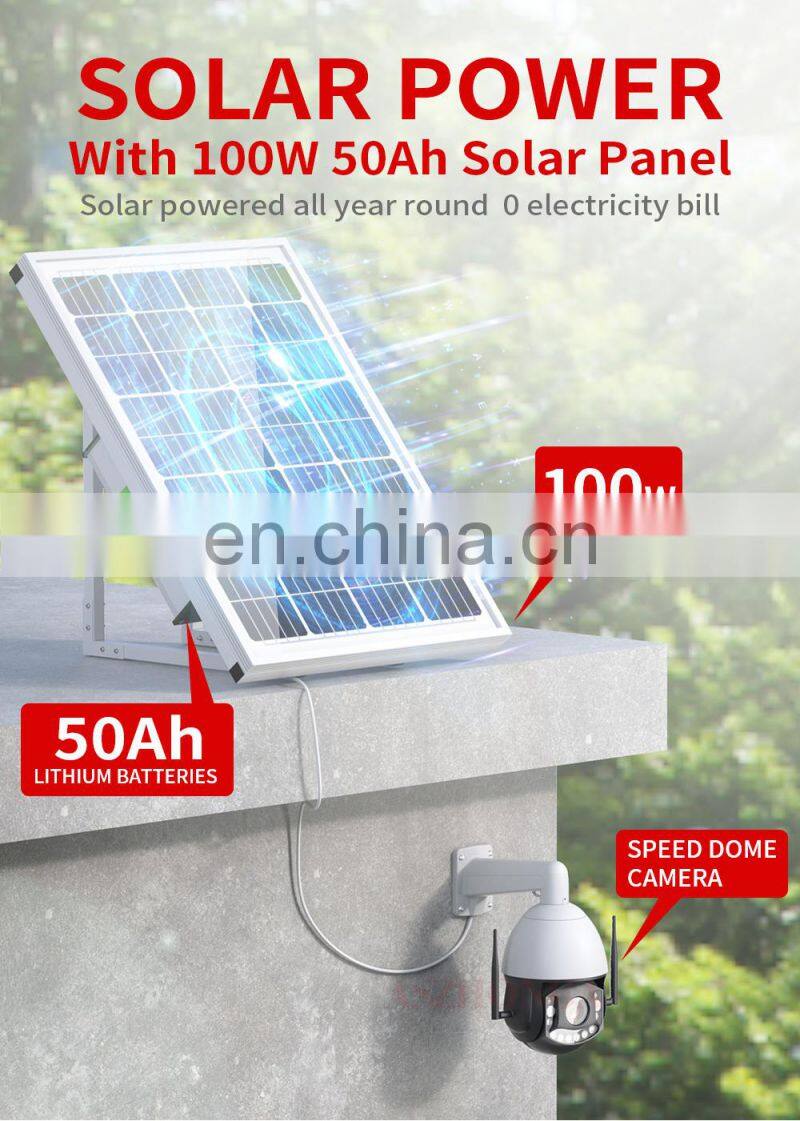

Optional Solar-Powered Solution

Optional solar-powered solutions are available for more flexible deployment.

This model is recommended to use 100W solar panel with more than 50AH capacity battery with the use of 365 days of all-weather work (affected by solar light intensity, please subject to the actual situation).

Specification

Products Model	P70-A2WB-5MP406C2WHFD-Cam	P70-A2WB-5MP406C4GHFD-EU-Cam
Operating system	Embedded Linux OS
Effective pixels	5MP(2560x1920)
CMOS Sensor	1/2.8"
Lens interface type	M12
Lens	40X Zoom Auto Focus Lens(4.7-141mm 30X Optical+10X Digital)
View angle	68.5°-4.2°
Min.illumination	0.05 Lux / 0 Lux(IR on)
Day&Night mode	Auto IR-CUT
Night vision distance	6pcs Array Infrared LEDs（4pcs Adjustable high power laser infrared LED） 6pcs White light LEDs Full color night vision
Video compression Standard	H.265
Video streaming	Triple streaming
Video resolution	First stream:2560x1920 or 2560x1440 Main Stream
		Second stream:VGA
		Triple stream :QVGA
Video code rate	32 to 8192Kbps. supports constant bitrate/variable bitrate
Video frame rate	15fps(PAL 50HZ/NTSC 60HZ)
Audio	Audio compression standard: G.726/G.711
		Audio code rate: Rate adaptive
		Audio Input: Support, built-in Microphone
		Audio Output: Support Two Way Audio Talk Back(RCA Speaker)
Image settings	Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement	Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
Audio function	Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
Motion detecting	Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage	Alarm send pictures to the specified mailbox,
		alarm upload pictures and videos to the FTP server,
		alarm write pictures and videos to Micro TF card, alarm message push
Privacy mask	Maximum support 4 users to simultaneously browse
OSD	Support camera name, date and time information superimposed
User management	Supports user and rights management
Simultaneous viewers	maximum support 12 users to simultaneously browse (each stream supports 4 users)
Network protocol	TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
Network protocol		FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
Connection protocol	ONVIF-Compatible 2.1Version (backward compatible)(4G MODE IS NOT SUPPORT) CGI
Network Support	2.4 GHz to 2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft		GSM 900/1800 MHz UTRA FDD Band I/VIII E-UTRA FDD Band 1/3/7/8/20/28 E-UTRA TDD Band 38/40/41 (WIFI Version not supported)
Wireless Security	64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
Transmission rate	11b: 11Mbps,11g :54Mbps,11n :135Mbps
Rotation angle	Horizon: 360°Infinite rotation. Vertical: 0° to 90°
Horizontal speed	1° to 60°/S
Vertical speed	1° to 30°/S
Preset	Support 8 preset points , zoom lens status can be saved during the preset
Cruise Zoom	Support Cruise Zoom/Auto Tracking Zoom In
Power interface	1* DC φ2.1*5.5mm power interface
Ethernet	1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface (4G Version not supported)
TF card Slot	1 * TF card slot. up to256GB (NOT included TF Card)
Reset button	Support(On the side of the TF Card Slot)
Power supply	DC 12V 3A
power	Day: 3W; Night: 15W
Operating temperature	-20 to +60 degree
Operating humidity	10% to 95%
Material	Metal Housing ,Outdoor Use,Waterproof IP66
Installation	Rack mounting
Size(mm)	Φ137(mm)×239(mm)
Weight(kg)	2.45kg
Package Size(mm)	254229394
Package Weight(kg)	3.5kg

Company Profile

Shenzhen Aoshizhongan Technology Co.,Ltd. was established in 2009, specializing in the production, development and sales of security surveillance cameras. Development and manufacturing of 4G network-enabled cameras began back in 2014. In 2015, we started to develop a solar-powered 4G network camera suitable for long-term outdoor work. the camera with this function has been popular among customers at home and abroad since its launch. The current product line involves: home wireless security monitoring products and overall solution design, water/meteorological/highway solutions, remote monitoring solutions for farms/breeding and other environments without network or electricity. ASZHONGA provides you with quality and reliable network monitoring solutions.

Why Choose Us

FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(40.00%),Western Europe(10.00%),Oceania(10.00%),North America(10.00%),Southeast Asia(8.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CCTV Camera,IP Camera,4G Camera,Solar Power Supply,Rechargeable Battery

4. why should you buy from us not from other suppliers?
Development and manufacturing of 4G network-enabled cameras began back in 2014.In 2015, we started to develop a solar-powered 4G network camera suitable for long-term outdoor work.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
