Parallel Thread Quick Stainless Steel Directional Coupler Rebar Straight Connector
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cheap Building Material Prices China Building Materials Wholesalers Mechanical Splicing Threaded Rebar Coupler
-
Rebar Connection Precast Concrete Rebar Connector Grout Coupler
-
Carbon Structure Steels Precast Concrete Connector Grouting Rebar Coupler
-
Dia. 12mm-40mm Full Grout Filled Rebar Splicing Coupler
-
Construction Industry Steel Bar Sleeve Full & Semi Rebar Grouting Coupler
-
Structural Steel Reinforcement Grout Sleeve Semi Rebar Grouting Coupler
Product Description
Products Description

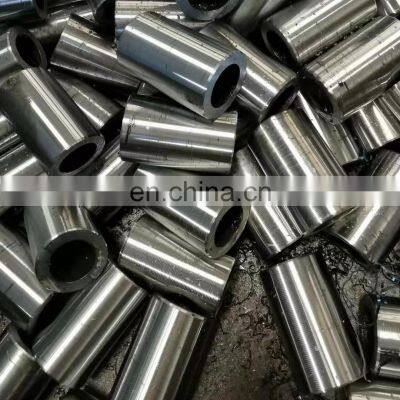

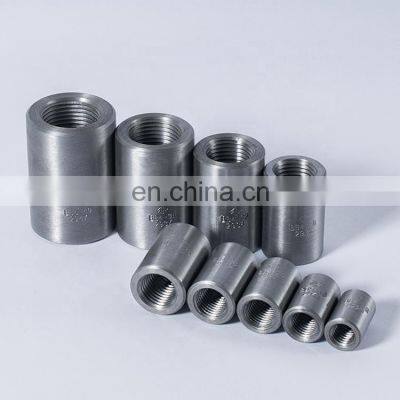

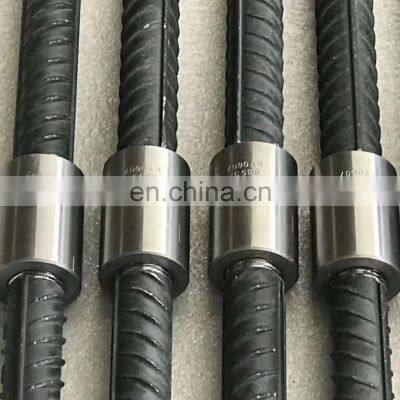

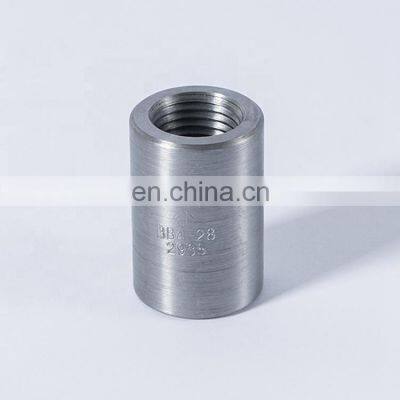

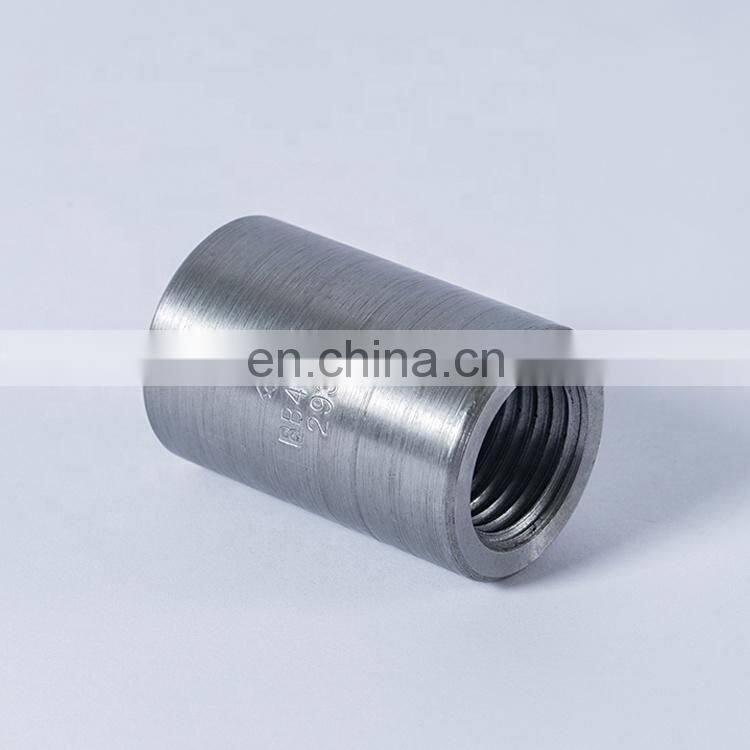

Parallel Thread Quick Stainless Steel Directional Coupler Rebar Straight Connector

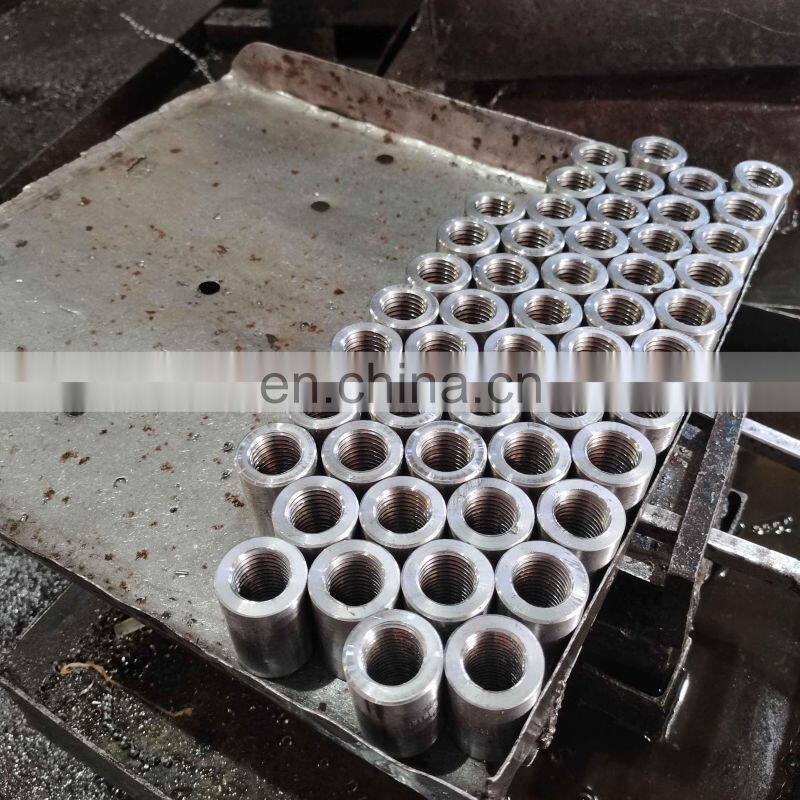

The steel bar connection sleeve produced by our company is made of high-quality 45# carbon steel or 50 steel, and the surface is treated with anti-embroidery. It has passed the inspection of the National Construction Engineering Quality Supervision and Inspection Center and has an inspection report; the production specifications are standard 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40, 50 steel sleeves and positive and negative wires and reducers; also accept customization.
Minimum Size Of Steel Parallel Thread Rebar Coupler (unit: mm) | ||||||||||||
Applicable Steel Strength Level | ≤400 | |||||||||||
Upset straight thread sleeve | Stripping and Rolling Straight Thread Sleeves | Direct Rolled Straight Thread Sleeves | ||||||||||
Size | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | ||||||
12 | 19.0 | 24.0 | 18.0 | 28.0 | 18.5 | 28.0 | ||||||
14 | 22.0 | 28.0 | 21.0 | 32.0 | 21.5 | 32.0 | ||||||
16 | 25.0 | 32.0 | 24.0 | 36.0 | 24.5 | 36.0 | ||||||
18 | 28.0 | 36.0 | 27.0 | 41.0 | 27.5 | 41.0 | ||||||
20 | 31.0 | 40.0 | 30.0 | 45.0 | 30.5 | 45.0 | ||||||
22 | 34.0 | 44.0 | 32.5 | 49.0 | 33.0 | 49.0 | ||||||
25 | 38.5 | 50.0 | 37.0 | 56.0 | 37.5 | 56.0 | ||||||
28 | 43.0 | 56.0 | 41.5 | 62.0 | 42.0 | 62.0 | ||||||
32 | 48.5 | 64.0 | 47.5 | 70.0 | 48.0 | 70.0 | ||||||
36 | 54.0 | 72.0 | 53.0 | 78.0 | 53.5 | 78.0 | ||||||
40 | 60.0 | 80.0 | 59.0 | 86.0 | 59.5 | 86.0 | ||||||
50 | — | — | 74.0 | 106.0 | 74.0 | 106.0 | ||||||
Applicable Steel Strength Level | 500 | |||||||||||
Upset straight thread sleeve | Stripping and Rolling Straight Thread Sleeves | Direct Rolled Straight Thread Sleeves | ||||||||||
Size | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | ||||||
12 | 20.0 | 24.0 | 19.0 | 32.0 | 19.5 | 32.0 | ||||||
14 | 23.5 | 28.0 | 22.5 | 36.0 | 23.0 | 36.0 | ||||||
16 | 26.5 | 32.0 | 25.5 | 40.0 | 26.0 | 40.0 | ||||||
18 | 29.5 | 36.0 | 28.5 | 46.0 | 29.0 | 46.0 | ||||||
20 | 32.5 | 40.0 | 31.5 | 50.0 | 32.0 | 50.0 | ||||||
22 | 36.0 | 44.0 | 34.5 | 54.0 | 35.0 | 54.0 | ||||||
25 | 41.0 | 50.0 | 39.5 | 62.0 | 40.0 | 62.0 | ||||||
28 | 45.5 | 56.0 | 44.0 | 68.0 | 44.5 | 68.0 | ||||||
32 | 51.5 | 64.0 | 50.5 | 76.0 | 51.0 | 76.0 | ||||||
36 | 57.5 | 72.0 | 56.5 | 84.0 | 57.0 | 84.0 | ||||||
40 | 63.5 | 80.0 | 62.5 | 92.0 | 63.0 | 92.0 | ||||||
50 | — | — | 78.0 | 112.0 | 78.5 | 112.0 | ||||||
Product name: | parallel straight thread coupler rebar connector |
Project Solution Capability: | Total solution for projects |
Fit For Rebar Diameter: | 12mm-50mm |
Market: | South&north America/Europe/ Asia/ Australia/Africa and etc. |
Application: | metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc |
Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; |
Customized | OEM/ ODM |

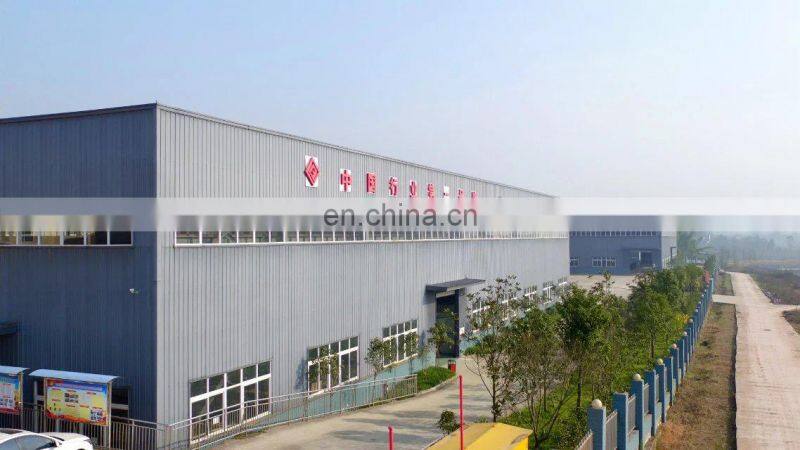

Company Profile
Chongqing Grace Trading Co., Ltd.
Chongqing Grace Trading Co., Ltd. is a global e-commerce trading company located in the main urban area of Chongqing, dedicated to supporting services for the trade of steel bar connectors.
We adhere to the principle of "quality first, customer first", pay attention to mastering the global industry product information standards, have excellent technical research and development, after-sales and management teams in the industry, flexible and professional marketing service teams, and can provide customers with professional and comprehensive services.

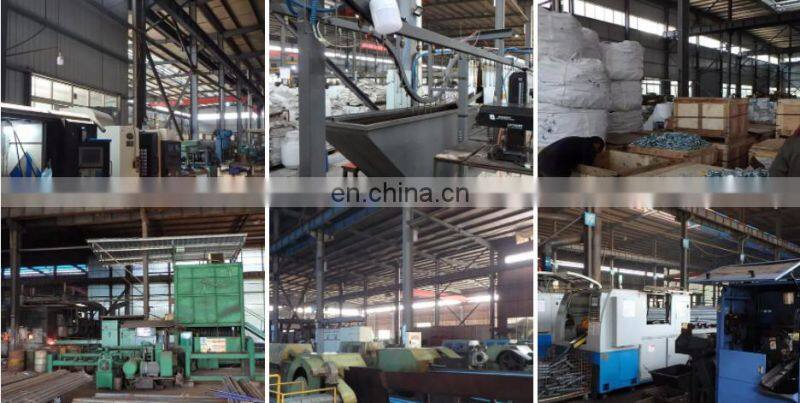

On the basis of fully absorbing foreign advanced technology, our company has cooperated with large factories for many years, realizing the whole process supervision from raw materials to finished product delivery, supporting ODM & OEM special services,providing high-quality products to customers all over the world, and constantly innovating and serving customers. Provide more
cooperation options, determined to become a high-quality supplier well received by customers after years of hard work.
cooperation options, determined to become a high-quality supplier well received by customers after years of hard work.
