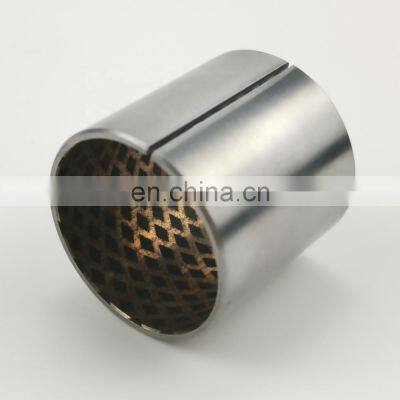

TCB300 Graphite Bimetal Bushing Steel Backing And Bronze Copper Alloy Inside to Improve Performance Starting Motor Bush Bearing.
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Heavy Load Bimetal Bearing Made of Steel Base and Different Alloy Material Sintered On the Steel Back With Oil Sockets Bushing.
-
Graphite Bimeatal Starting Motor Bearing Composed of Steel Backing And CuPb10Sn10 Customize Copper Alloy Thickness As Demand.
-
Steel Base And CuPb10Sn10 Engineering Agriculture Machine Bear Heavy Load Copper Alloy Bronze Bimetal Bearing Bushing.
-
TCB300 Bimetal Bushing Composed of Steel Base CuPb10Sn10 With Graphite Sintered in Diamond Oil Sockets Starting Motot Bushing.
-
TCB301 Tehco Steel Base Bimetal Bushing With Different Kinds of Copper Alloy Material And Thickness Construction Machine Bushing
-
Tehco Bimetal Starting Motor Heavy Load High Speed With Different Alloy Material Sintered On the Steel Back Graphite Bushing.
Product Description
Products Description
TCB300 Graphite Bimetal Bushing Steel Backing And Bronze Copper Alloy Inside to Improve Performance Starting Motor Bush Bearing.
It has high fatigue strength, load capacity and impact strength.
The product is applied to starting motor.
Performance Index | Data | |||
Max load capacity P | 140N/mm² | |||
Max line speed V | Grease Lubrication | 2.5m/s | ||
PV value limit | 2.8N/mm²·m/s | |||
Friction coef u | 0.05~0.15 | |||
Max line speed V m/s | Oil lubrication | -- | ||
Max PV value | -- | |||
Friction coef u | -- | |||
Max Working temperature | Grease lubrication | 150 | ||
Oil lubrication | -- | |||
Mating Axis | Hardness | ≥53 HB | ||
Roughness | Ra=0.32~0.63 | |||
Material | Steel＋CuPb10Sn10+ Graphite | |||
Typical application | Starting Motor. | |||
Alloy layer hardness | 60~90 | |||
Thermal conductivity | 47W/(m·k) | |||
Coefficient of linear expansion | 18×10-6/K | |||
Notice: We can also develop according to customers special request while out of this table | ||||
Details Images
Application
Company Profile
FACTORY WORKSHOP
Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Packing & Delivery
1. Inner Packing
For small products:
100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
2. Outer Packing
8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Delivery pictures
Products loaded on container.
Products arrives at the destination.
Customer is unloading.
Our Advantages
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
