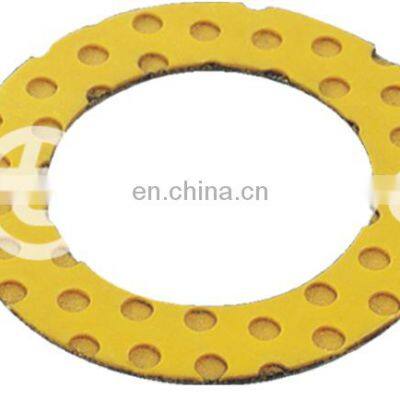

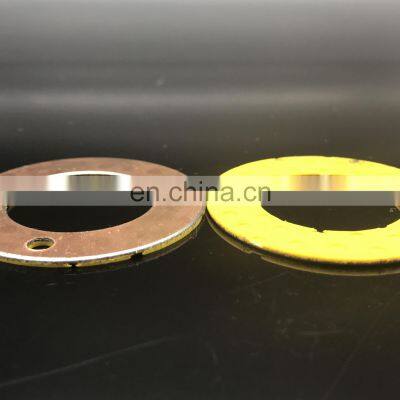

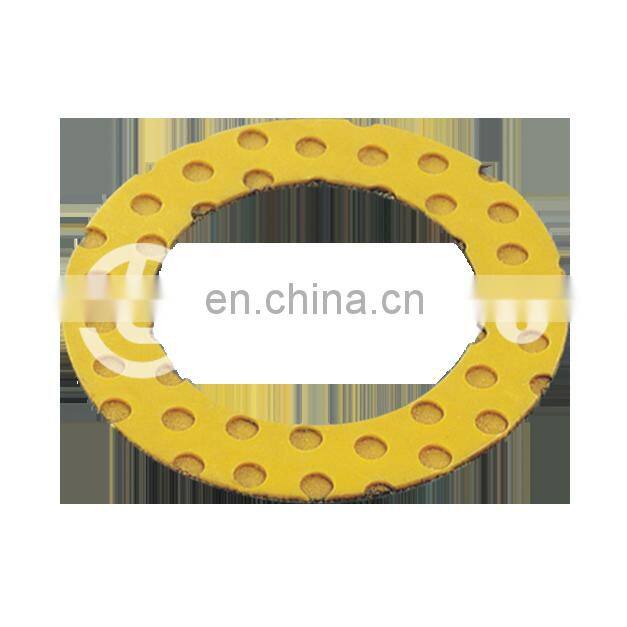

SF-2 Thrust Washer POM Thrust Washer
- T/T Credit Card
You May Like
-
Lubrcaiting Bushing Barbell SF-1Bushes
-
Factory Supplier Yellow POM Oilless Boundary Lubricating Multi-layer Bushing Made of Steel and Bronze for Automotive Chassis.
-
Self Lubricating PAP P10 SF-1 Bushes
-
SF-1 Bushes PAP Oilless Bushing PTFE Composite
-
PAP Bushing PTFE Composite Split Bushing Oilless
-
Split Bushing Oilless Bush Self Lubricated Bushing
Product Description
SF-2 Thrust Washer POM Thrust Washer


Product Type: | TCB201 | |
Application : | The vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc | |
Material: | Steel +Bronze +POM | |
Max load capacity P: | Static load 140N/mm² / Dynamic load 70N/mm² | |
Max line speed V: | Grease lubrication 2.5m/s | |
PV value limit: | Grease lubrication 2.8N/mm²·m/s | |
Friction coef u: | 0.06~0.12 | |
Mating Axis: | Hardness >270HB / Roughness Ra=0.4~1.25 | |
Working Temperature: | -40~+120℃ | |
Thermal conductivity: | 52W/(m·k) | |
Coefficient of linear expansion: | 11×10-6/K | |
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements. | ||





TEHCO is dedicated to the research and manufacture of all kinds of bushings,spare parts,machinery parts and precision parts. We are approved by the third party concerning the quality certificate. Up to now, we have developed a total of ten categories of products,including composite self-lubricating bushing, boundary lubricating bushing, bimetal bushing, oil sintered bushing,solid lubricating bushing with graphite, steel bushing, casting copper bushing, wrapped bronze bushing,spherical plain bearing and filament wound bearing. The quality and performance have met or exceed international standards. We have complete in-house research and development, production, testing and marketing capabilities.









Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)

Outer Packing
8pcs-300pcs per carton
(depends on the product size)

Shipment Packing

Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
Welcome Your Inquriy and Trial Order !
