Home > Products > Oil Sintered Bearing > Factory Customize Flange Bronze Oil Sintered Bushing Pressed In High Pressure and Oil Sintered In Vacuum.

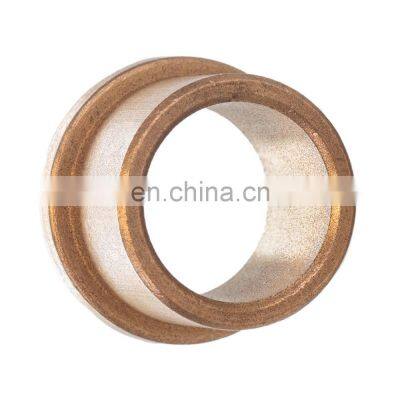

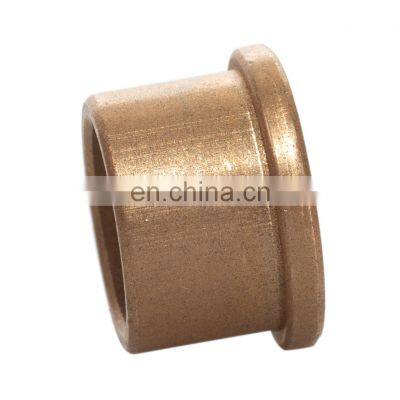

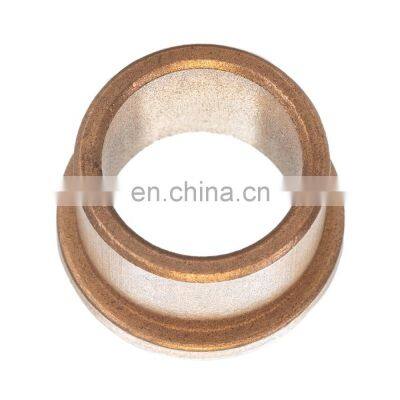

Factory Customize Flange Bronze Oil Sintered Bushing Pressed In High Pressure and Oil Sintered In Vacuum.
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Bujes Para Ventilador Brass Bearing Motores De Ventiladores
-
Bucha De Ventilador Brass Bushing for Electric Fan
-
Powder Metallurgy Copper Bush Bearing for Washing Machine
-
Bujes De Bronce Bearing Bushes for Washing Machines
-
Flange Brass Bushing Oil Impregnated Bush
-
TCB40 Series Fan Motor Oil Sintered Bushing Iron Powder Bushing Electric Tools Orientation Textile Machine Bushing.
Product Description
Product Description
Factory Customize Flange Bronze Oil Sintered Bushing Pressed In High Pressure and Oil Sintered In Vacuum.
is mold pressed under high pressure and then sintered under high temperature, and oil is
soaked into the homogeneously spreaded tiny pores of the metal under vacuum.
soaked into the homogeneously spreaded tiny pores of the metal under vacuum.
This bearing can withstand dry condition in medium speed and low load for short time. Moreover it is cheap and stable in dimension.
Application:
is widely used in domestic electric and electronic machines, electric tools, textile machines, chemical engineering machines, automobiles and official business machines.
Product Type | Customized Spherical Table Fan Electric Motor Ball Bearing Bushing | |
Material | Bronze powder | |
Density | 6.4~6.8g/cm3 | |
Static Load | 200N/mm² | |
Dynamic Load | 18N/mm² | |
Max linear speed | 7m/s | |
Volume of oil impregnation | 22% | |
Hardness | 25HB | |
Friction coefficient | 0.03μ | |
Traction resistance | 10~20N | |
Elongation | 1~2.5% | |
Max thermal temperature | -20~+120℃ | |
Application | Domestic electric and electronic machines,electric tools,textile machines,chemical engineering machines,automobiles and official business machines , fan parts,etc. | |
Notice: In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements. | ||
Detailed Images
Application
Company Introduction
Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Packing & Delivery
1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
2. Outer Packing
8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Delivery pictures
Products loaded on container.
Products arrives at the destination.
Customer is unloading.
Our Advantages
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
