Products Description
MedFuture Mobile PCR Laboratory Chamber
Application:

The mobile PCR chamber laboratory meets the requirements of the enhanced medical BSL-2 laboratory, highly integrated with water, electricity, HVAC and other equipment, and equipped with the necessary instruments for the experiment.It adopts factory modular form a complete set.
Area
Name
Model
Specification
Quantity


Reagent preparation room
Laminar flow cabinet
BBS-DDC
1040*615*1770mm
1
Water purifier
SCSJ-20VF
410*270*500mm
1
Refrigerator
MXC- 5V160
500*550*1300mm
1
Freezer
MDW-40V90
544*623*842mm
1
Mini centrifuge
Mini-7K


They are placed in the designated place for transportation and in the Laminar flow cabinet for use
1
Rotating mixer
MX-RL-PRO
1
Pipette
MicroPette0.1-1000ul
1
Balance
BA2204B
1


Specimen preparation room
Biosafety cabinet
BSC-110IIB2-X
1100*750*2250mmmm
1
Refrigerator
MXC- 5V160
500*550*1300mm
1
Freezer
MDW-40V90
544*623*842mm
1
High speed centrifuge
BKC-TH16
Equipped with 24*1.5/2ml angle rotor
1
Nucleic Acid Extraction System
BNP32
430*380*450mm
1
Water bath
SY-1L2H
320*180*210mm
1
Rotating mixer
MX-RL-PRO
They are placed in the designated place for transportation and in the Laminar flow cabinet for use
1
Mini centrifuge
Mini-7K
Pipette
MicroPette 0.1-1000ul
1
Amplification& Analysis room
Fluorescence Quantitave PCR Detection System
FQD-96A (4-channel)
410*386*352mm
1
Washing room
Autoclave
MFS-B50II
640*550*970mm
1
Feature:
1.The PCR laboratory was designed in strict accordance with the three functional divisions: reagent preparation area,specimen preparation area and product amplification and analysis area, with independent buffer room.In addition, configure the washroom and equipment room. 2.The built-in PCR corridor facilitates the observation of the operation of each tition
3.The pressure gradient decreases step by step according to the direction of reagent preparation area, specimen preparation area and product amplification analysis area, and the airflow trend is one-way flow.

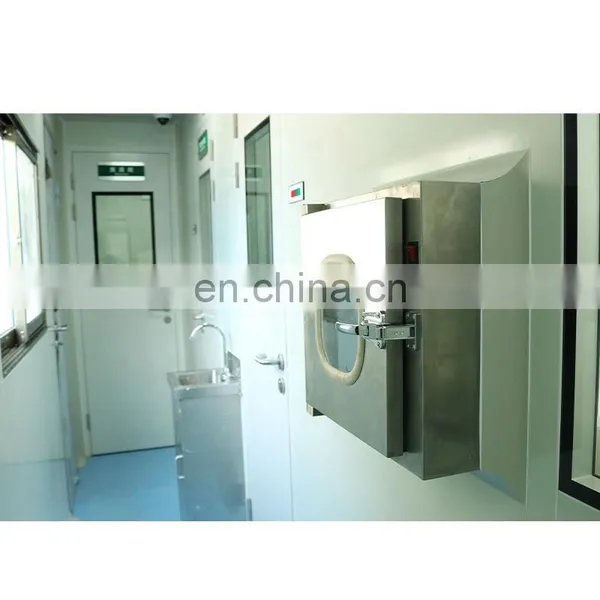

4.Each area is equipped with transfer window for goods transfer. The transfer window has the function of interlock and ultraviolet lamp disinfection.
5.Each area is equipped with LED clean lamps,which are energy saving and easy to maintain, and can effectively prevent the breeding of bacteria. The room illumination meets the standard requirements.
6.It is equipped with special ultraviolet lamp and time-delay function to protect the safety of
experimental personnel.
7. A pressure differential meter is installed at the door of the buffer room to display the dynamic pressure in the room in real time.

Capsule
1.Single box structure, factory modular form a complete set.
2.Dimensions: 12192mm×2438mm×2896mm (l/D), standard container body,
easy to transport.
3.The wall is made of 2mm-thick reinforced wavy steel plate, and the floor is
made of 5cm-thick special wood plate with high strength, which is suitable
for transportation under various terrain conditions.
4.6mm thick high-quality steel support frame, stable and durable;
5.Stainless steel outer door, double door design, with access control
system;
6.The surface is treated with rust removal, anti-rust paint and container
special paint for three times. It is all-weather and durable.
Inside cabin
1.The ceiling and internal partition walls are made of 50mm laboratory
dedicated antibacterial purification board with a thickness of up to 0.426mm,
which has good antibacterial effect, fire prevention, moisture-proof
2.The Angle of Yin and Yang in the box is equipped with a special circular
aluminum profile for the clean room, which ensures that the inside of the box
is smooth and has no dead Angle, no ash accumulation, and is not easy to
produce mold.
3.Special steel clean sealed door, with glass observation window, two doors
in buffer room have interlock device, and equipped with emergency opening
device, can be manually opened in emergency situations such as power
failure;
4.The ground is made of 2mm PVC floor leather, which is fireproof,
antibacterial, wear-resistant and non-slip.
Area arrangement
1.The PCR laboratory was designed in strict accordance with the three
functional divisions: reagent preparation area, specimen preparation area and
product amplification and analysis area, with independent buffer room.In
addition, configure the washroom and equipment room.
2.The built-in PCR corridor facilitates the observation of the operation of each partition
3.The pressure gradient decreases step by step according to the direction of
reagent preparation area, specimen preparation area and product
amplification analysis area, and the airflow trend is one-way flow.
Ventilation
1.Strictly follow the PCR laboratory air supply and exhaust design to ensure
the air volume and ventilation frequency in the experimental area;
2. The combined clean air conditioning unit adopts primary and medium
efficiency two-stage filter air supply for the fresh air unit and high-efficiency
filter for the terminal air supply port to carry out three-stage filter air supply
to ensure the cleanliness of the room meets the requirements.
3. The combined air conditioning unit carries out initial and medium
efficiency, surface cooling and reheating system, filtration and temperature
regulation for fresh air, which can meet the whole weather conditions of -20 °
C to 40 ° C and ensure the indoor temperature is constant.
Water supply and drainage system
1.The clean water tank and waste water treatment equipment are integrated
between the equipment to maintain the normal operation of the laboratory
under the condition of water cut off.
2.Equipped with 260L capacity of clean water tank;
Laboratory table
1. The mesa is 12.7mm thick and the edges of the high-quality solid core
physicochemical board are thickened to 25.4mm, which is resistant to
corrosion, abrasion and strong acid and alkali.
2. The frame is made of 1.2mm high-quality cold-rolled steel plate, the
surface is sprayed with epoxy resin electrostatic, the surface is smooth and
smooth, without falling off bubble pits, indentation and scratch pitting points,
cracks and cutting edges and other defects;The bottom is supported by
adjustable feet, used for horizontal trimming joints of mesa
Controlling system
1.Visual intelligent control system, with room temperature and humidity,
pressure gradient, lighting, uv lamp control;
2. With dynamic pressure control ability, it can automatically balance the
change of pressure difference caused by air conditioning filter screen and
high efficiency filter blockage, and display the running state of air supply and
exhaust unit;
