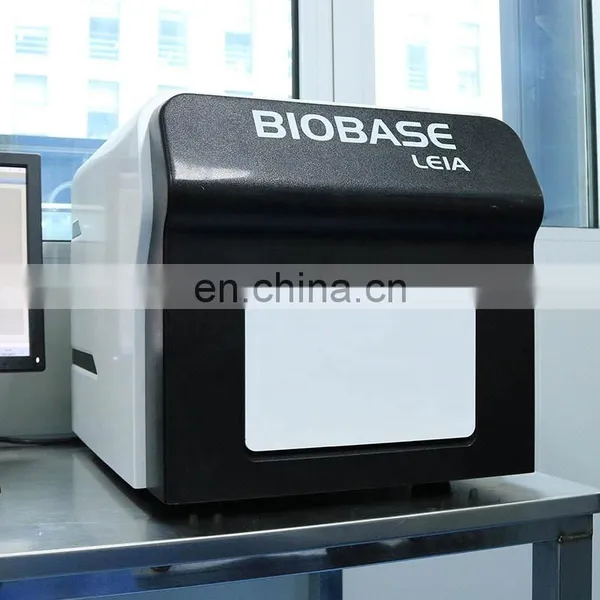

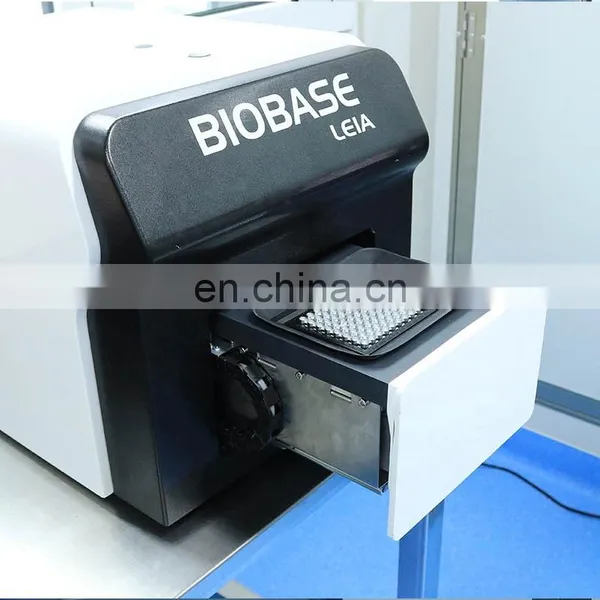

BIOBASE Fluorescence Quantitative Pcr Detection System LEIA-X4 Pcr Real Time Detection System for Laboratory or Hospital
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BIOBASE LN UV Air Sterilizer Mobile Air Disinfection BK-Y-600NegotiableMOQ: 1 -
BIOBASE China Real-time PCR Instrument LEIA-X4 4 Channels Real Time PCR Testing Machine for Hospital LabNegotiableMOQ: 1
-
BIOBASE LN UV Air Sterilizer (Wall Mounted) Air Disinfector BK-B-1000NegotiableMOQ: 1
-
H China Newest UV Air Sterilizer BK-Y-600 Air Disinfection Hospital and Blood Station Used UV Air SterilizerNegotiableMOQ: 1
-
MedFuture Acid Base Karl Fischer Automatic High Potential Titrator Therapeutic Equipment Tester MachineNegotiableMOQ: 1
Product Description
Feature：
*Excellent temperature control performance of the instrument, the maximum temperature rise and fall ≥5.0℃/s.
*No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
* Fluorescence detection adopts MPPC sensor with high sensitivity.
* Long-life LED light source, stable emission wavelength, maintenance-free.
*4-channel fluorescence detection, no cross interference between channels.
* User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions, all the parameters can be stored.
*No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
* Fluorescence detection adopts MPPC sensor with high sensitivity.
* Long-life LED light source, stable emission wavelength, maintenance-free.
*4-channel fluorescence detection, no cross interference between channels.
* User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions, all the parameters can be stored.
Specification
Product Name |
Fluorescence Quantitative PCR Detection System |
||||||
Model |
LEIA-X4 |
||||||
Sample Capacity |
96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube (Transparent Cover) |
||||||
Reaction System |
10~50μl |
||||||
Dynamics Range |
1-1010 copies |
||||||
Channel |
4 |
||||||
Emission Light |
LED |
||||||
Detector |
MPPC |
||||||
Detection Path |
F1 |
F2 |
F3 |
F4 |
|||
Suitable Probe/Dye |
FAM/SYBR GREEN |
VIC/JOE/ HEX/TET |
ROX/TEXAS-RED |
Cy5 |
|||
Excitation Wavelength |
455~680nm |
||||||
Detection Wavelength |
510~730nm |
||||||
Fluorescence Detection Repeatability |
CV≤2% |
||||||
Fluorescence Detection Accuracy |
CV≤3% |
||||||
Fluorescence Detection Linearity |
r≥0.995 |
||||||
Module Temp. Range |
4-99℃(resolution:0.1℃) |
||||||
Ramp Rate |
5.0℃/s(max) |
||||||
Temp. Accuracy |
±0.3℃ |
||||||
Temp. Uniformity |
≤ ±0.3℃ |
||||||
Temp. Control Mode |
Block mode |
||||||
Gradient Temp. Range |
1-36℃ |
||||||
Hot-Lid Temp. Range |
100℃, Automatic Hot-lid |
||||||
Scanning Mode |
Full plate scanning |
||||||
Programming |
Max 100 Segments for Each Program, Max 99 Cycles |
||||||
Operation Mode |
Continuous |
||||||
Scanning Time |
8.5s |
||||||
Special Function |
Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. |
||||||
Operation System |
Microsoft: Windows10 |
||||||
Power Supply |
220V,50/60HZ; 110V,60HZ |
||||||
Dimension(L*W*H) Mm |
375*490 *365 |
||||||
Port Method |
USB Port |
||||||
Packing Size(L*W*H) Mm |
645*565 *605 |
||||||
Gross Weight |
45 |
||||||
