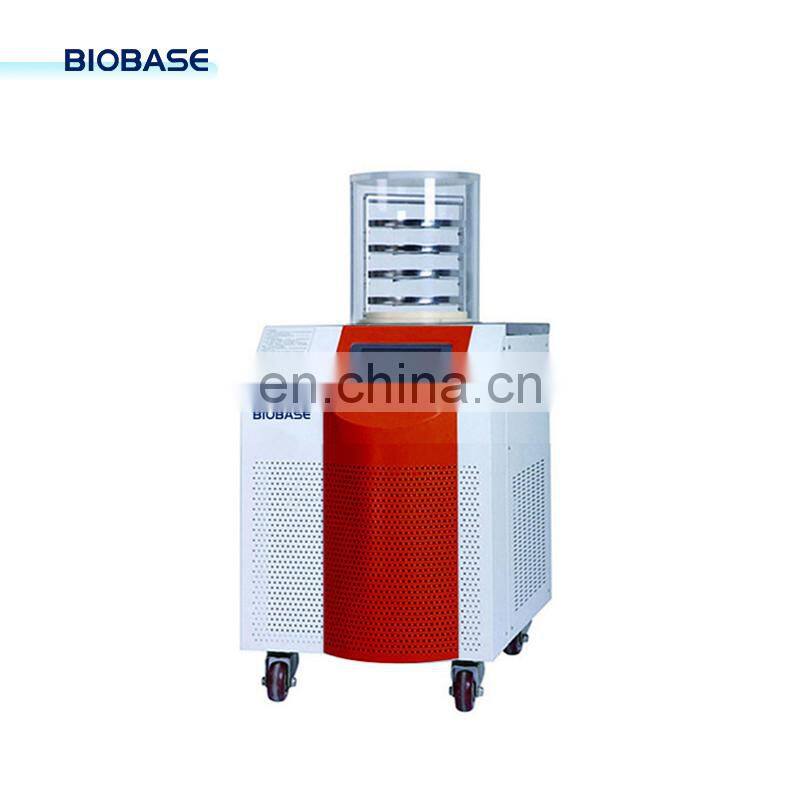

BIOBASE Vertical Freeze Dryer BK-FD12S for Freeze Drying Test of Laboratory Biomedical Samples

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.

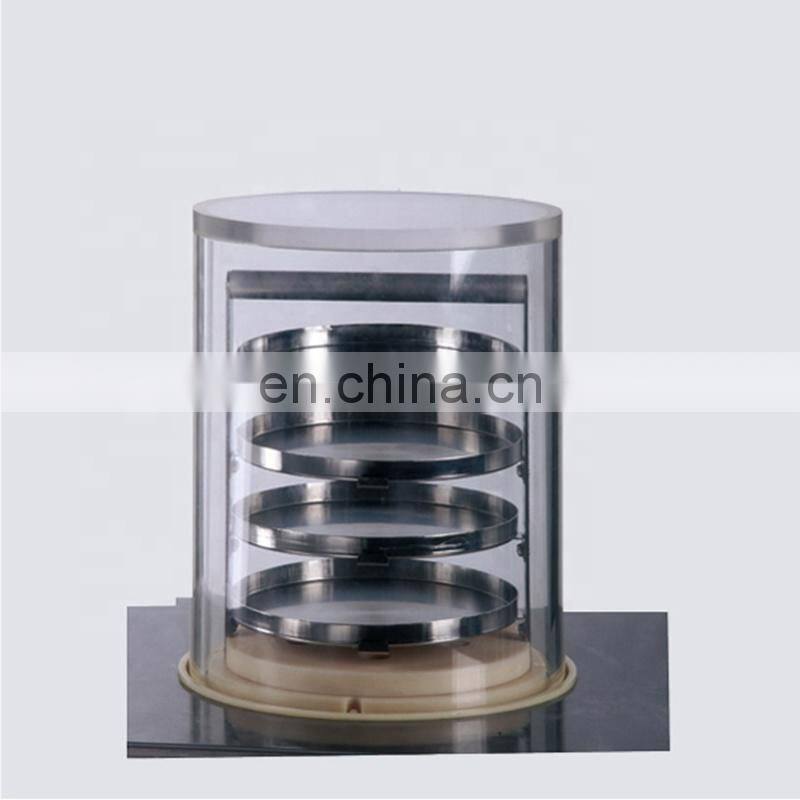

8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Specification

Model			BK-FD12S(-60/-80)
Type			Standard chamber
Freeze Drying Area			0.12/0.18 ㎡
Tray			4/6(Optional) pcs
Height Between Trays			76/50mm
Cold Trap Temperature			≤-60℃/-80℃
Cold Trap Capacity			9.3L
Cold Trap Size (Dr*H)			Φ217*250mm
Vacuum Degree			<10 Pa
Water Capture Capacity			4kg/24h
Tray Size (D*H)			Φ200*20mm
Freeze Drying Time			24h
Loading Capacity/Shelf (Liquid)			0.3L
Total Loading Capacity (Liquid)			1.2/8L
Can Load Vials Qty	Φ22mm	260
	Φ16mm	480
	Φ12mm	920
Refrigerant			R600a+R290+R23
Cooling System			Air cooling
Consumption			-60℃: 0.9kW,-80℃: 1.5kW
Power Supply			AC220V, 50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase, only for -60℃)
Standard Accessory			Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT)
Optional Function & Accessory			Tray heating (for all models), Cold trap defrosting (for all models), Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), Import vacuum pump
External Size (WDH)			480620920/1370mm
Package Size (WDH)mm/ Gross Weight	Main Body	7306001180/80kg
	Drying Chamber	620400400/15kg
	Vacuum Pump	570360240/22kg
