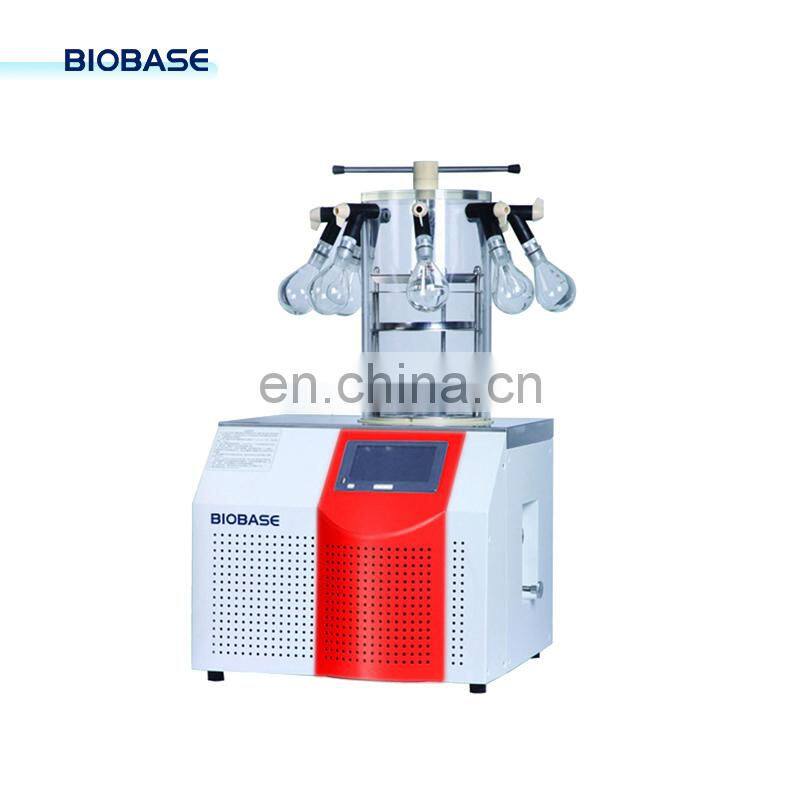

BIOBASE Vacuum Pump Stoppering Chamber Tabletop Freeze Dryer BK-FD10TP for Liquid and Solid Sample With Cheap Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.Widely used in drugs, biological
products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones
and other biological tissue enzymes, freeze-drying technology is applied.

Specification

Model			BK-FD10S	BK-FD10P	BK-FD10T	BK-FD10PT
Type			Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area			0.12 m2			0.09 m2
Tray			4 pcs			3 pcs
Height Between Trays			50mm			68mm
Cold Trap Temperature			≤-56℃
Cold Trap Capacity			9.5L
Cold Trap Size (Diameter*H)			Φ215*260mm
Vacuum Degree			<10 Pa
Water Capture Capacity			3kg/24h
Tray Size (D*H)			Φ200*20mm			Φ180*20mm
Freeze Drying Time			24h
Loading Capacity/Shelf (Liquid)			0.3L
Total Loading Capacity (Liquid)			1.2L			0.9L
Drying Chamber Size (Diameter*H)			Φ260*310mm	Φ260*450mm
Total Qty. Of Vial Φ22			260			195
Total Qty. Of Vial Φ16			480			360
Total Qty. Of Vial Φ12			920			690
Refrigerant			R600a+R290+R23
Cooling System			Air cooling
Power Supply			220V/50Hz,60Hz (single phase) 110V/60Hz (single phase)
Power Consumption			1.3KW
Power Supply			AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
Standard Accessory			Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)
Optional Function & Accessory			Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump
External Size (WDH)			640610550/810mm	640610550/950mm	640610550/990mm
Package Size(WDH)mm/ Gross Weight	Main Body	720705730(85kg)
		Drying Chamber /Vacuum Pump	705590530 (50kg)	705590530 (55kg)	705590530 (60kg)	720705730 (65kg)
