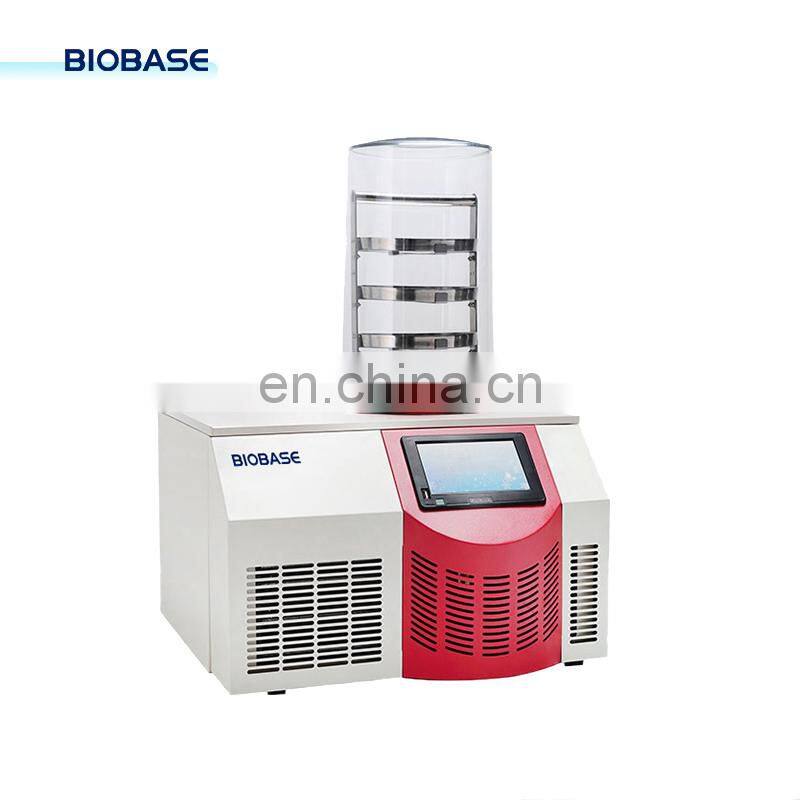

BIOBASE China Benchtop Laboratory Vacuum Freeze Drying Machine BK-FD10S For Sale Mini Freeze Dryer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

BIOBASE GROUP adheres to the mission of “SERVICE FOR HEALTH FOR THE FUTURE”

We provide with high quality products and best service!

Product Show

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Features:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Technical Parameters

Model		BK-FD10S	BK-FD10P	BK-FD10T	BK-FD10PT
Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area		0.12 m2			0.09 m2
Tray		4 pcs			3 pcs
Height Between Trays		50mm			68mm
Cold Trap Temperature		≤-56℃
Cold Trap Capacity		9.5L
Cold Trap Size (Diameter*H)		Φ215*260mm
Vacuum Degree		<10 Pa
Water Capture Capacity		3kg/24h
Tray Size (D*H)		Φ200*20mm			Φ180*20mm
Freeze Drying Time		24h
Loading Capacity/Shelf (Liquid)		0.3L
Total Loading Capacity (Liquid)		1.2L			0.9L
Drying Chamber Size (Diameter*H)		Φ260*310mm	Φ260*450mm
Total Qty. Of Vial Φ22		260			195
Total Qty. Of Vial Φ16		480			360
Total Qty. Of Vial Φ12		920			690
Refrigerant		R600a+R290+R23
Cooling System		Air cooling
Power Supply		220V/50Hz,60Hz (single phase) 110V/60Hz (single phase)
Power Consumption		1.3KW
Power Supply		AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
Standard Accessory		Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)
Optional Function & Accessory		Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump
External Size (WDH)		640610550/810mm	640610550/950mm	640610550/990mm
Package Size(WDH)mm/ Gross Weight	720705730(85kg)
		705590530 (50kg)	705590530 (55kg)	705590530 (60kg)	720705730 (65kg)
