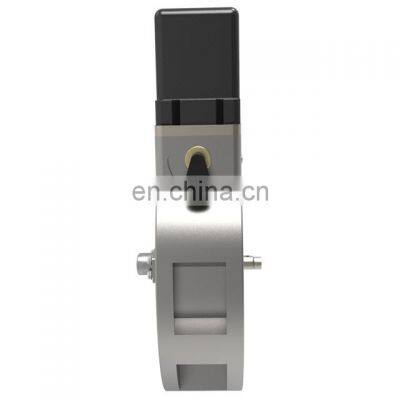

Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock

Shenzhen Joint Technology Co., Ltd.
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock thumbnail-1
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock thumbnail-2
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock thumbnail-3
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock thumbnail-4
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock photo-1
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock photo-2
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock photo-3
Tanker Valves Live Monitoring Guard Security Seal Oil Drain Valve Lock photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1997
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

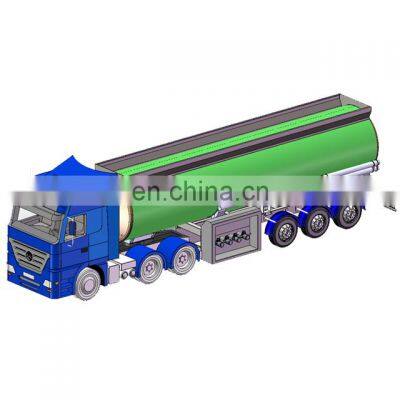

Advanced wireless asset tracking system for Tanker Truck Monitoring System (TTMS) solution

Tanker Truck Monitoring System (TTMS) solution is an advanced wireless asset tracking system for control of fuel tankers during all phases of operation.

The main purpose of a TTMS system is to provide the customer management team with information to gauge the performance of their employees and fleet so that the correct actions can be taken to reduce pilferage, prevent contamination, improve efficiency, improve safety and create competitive advantages for customer.

Our TTMS system will help the customer to further enhance their leadership position in the market by ensuring the reliable delivery of clean, uadulterated fuel to all of its customers all of the time.

Features
1.  Lora and BLE wireless communication 2.  Anti-explosion certification(TUV) 3.  Low power consumption, 2 years working life 4.  Smart unlock + manual unlock

HIGHLIGHT:  Unlock by BLE-nearby/Lora command-remote/manual   Application:  Fuel Transportation security usually used on fuel tanker valves.
Type
Function
Transmission mode
Lora/BLE
Lock status detecting
Real time
Unlock option
Remote/BLE
Data info
Lock status; unlock detecting; left battery; real time location.
Data storage
1000 pcs
Alarms
Low power
Valve remove
Top Cover open
Manual lock cover open
Offline alarm (valid with JT701D master)
Battery management
Low power working mode
Sleep mode
Low power deep sleep mode
Battery life
2 years
[suppose 10 unlock per day]
Wake-up resource
BLE connection
Manual lock cover open
RTC
Valve remove
Manual wake-up
Parameters
Dimension( L x W x H )
248.5*190.1*165mm
Weight
2.4kg
Working and storage temp
-30°C -- +70°C
Battery
4000mAh, disposable Lithium manganese battery
Protection
IP67
Store temperature
-40°C -- +85°C
Average working current
16mA
Average current stand by
50uA
Certification
IECEx： Ex ib IIB T4 Gb
ATEx: II 2 G Ex ib IIB T4 Gb
Why Choose Us

Benefits:

Quality control with the assurance that product that leaves the loading point will arrive at the destination unadulterated.

• Elimination of Cargo theft • Full vision of the fleet 24/7 • Ensures Compliance to TRA ECTS requirements for Transit Cargo • Improve turnaround times, hence better productivity and improved profts to the transporters. • Complete Fleet management system for Fleet Operators. • Enhanced Fleet Security • Quicker recovery in event of Vehicle and Cargo Theft • Reduced Operating Costs • Quicker Response to Emergency/Recovery/Rescue because of GPS Accuracy • Identify Vehicle Misuse • Better Route and Resource Planning • Enhanced Road Safety through Better Driver Behavior
Packing&Shipping
Company Introduction
FAQ
1) Do you have your own factory?
A: Yes, we are manufacturer in China for over 15 years located in Guangdong, China.

2) Why choose us?
A: We have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.

3) Do you have your own tracking platform?
A: Yes, we can provide not just web based tracking software, but also IOS/Android APPS.

4) Do you provide customized hardware and software?
A: Yes, we can provide not just customized hardware, but also software funcationalities.

5) What's your delivery time?
A: For samples, 2-4 days, bulk order, 7-15 days generally.

6) What is the MOQ?
A: MOQ will be 1pcs.

7) How can I get your price list?
A: Please send us your company's information and the volume. We will email you the quotation.

8) Can we have our logo or company name to be printed on your products or the package?
A: Yes, of course.

9) What is the Warranty period of your products?
A: 12 months.

10) What after-sale service I can get? If the products have quality problems, what should I do?
A: Online chat service, remote technology support and platform service. Contact us ASAP if any problem with the products.
