Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control

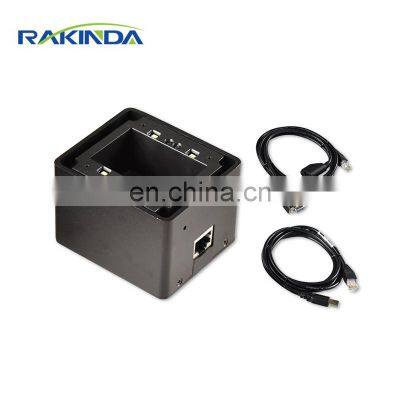

Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control photo-1

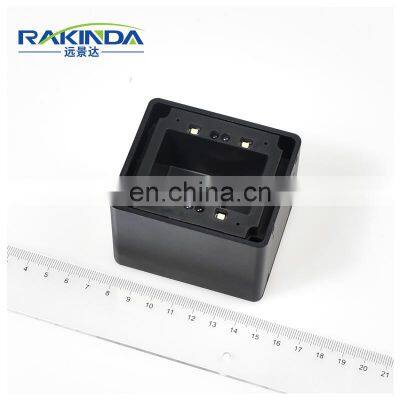

Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control photo-2
Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control photo-3
Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control photo-4
Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Rakinda RD4500L Long Distance Mobile QR Code

Scanner Module for Parking Lot Payment Access Control



Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control

Product Description



Main Features:



Metal Case design makes it durable

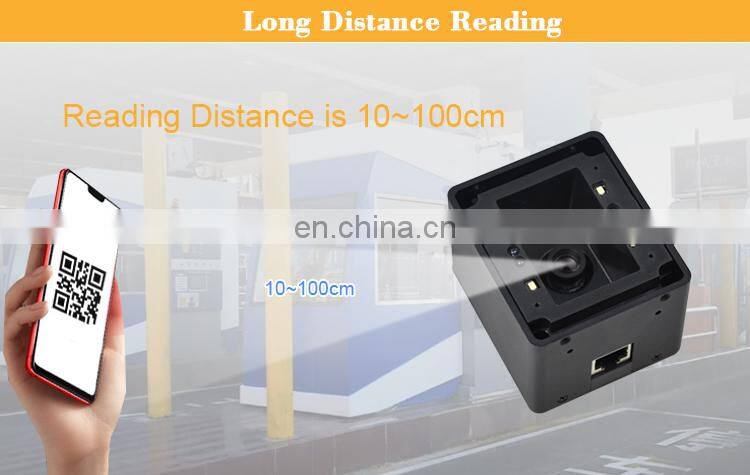

Long Distance QR Code Scanner: 10~100cm

Automatic reading or command control

Big scan window, soft White LED illumination

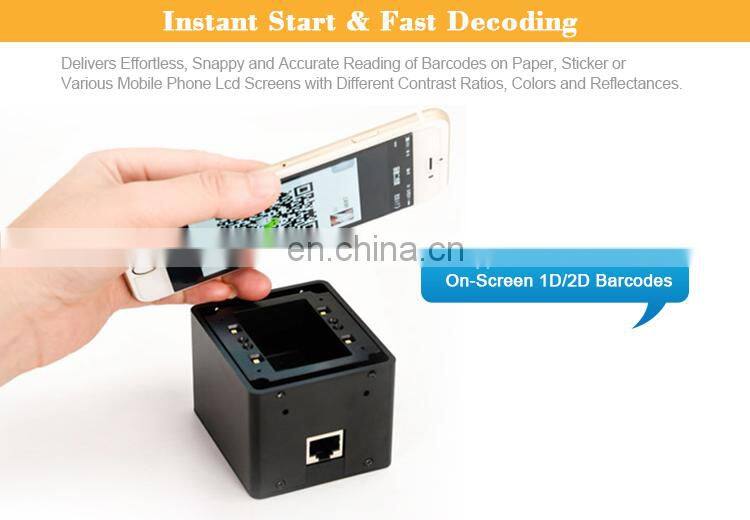

Fast Decoding for printed or mobile screen barcodes or QR code





Product Specification:

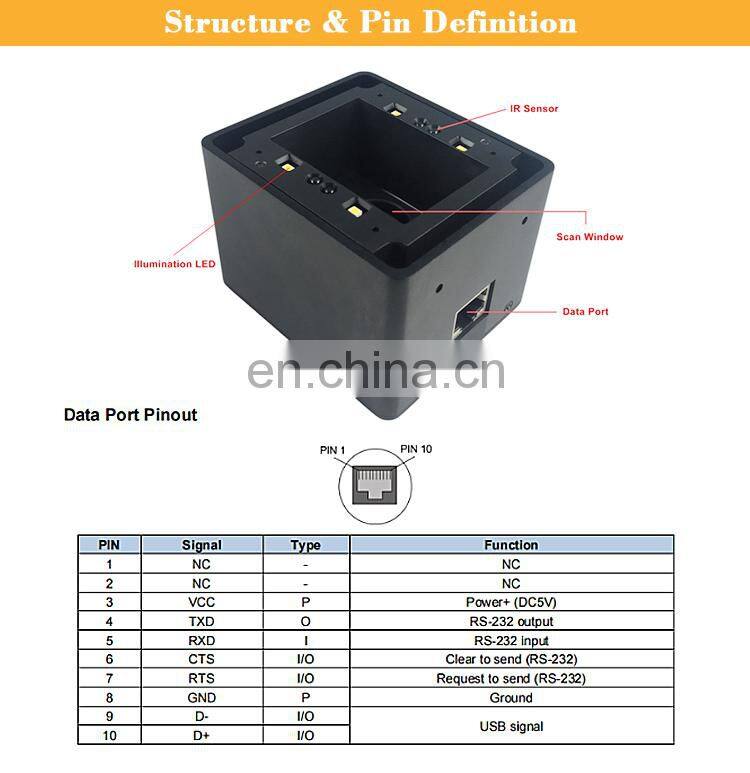

 Interface RS232/ USB
 Image Sensor  752 x 480CMOS
 Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey

 Precision  5 mil
 Light Source White LED
 Scan Window 38.3mm*60.4mm
 Depth of Field* 10~100cm
 Print Contrast Signal   ≥ 30%
Illumination  0 ~ 100,000 LUX
Power Consumption 1.75W (max)
Power Adaptor Output: DC5V, 0.5A,  Input: AC100~240V, 50~60Hz
Weight  300g

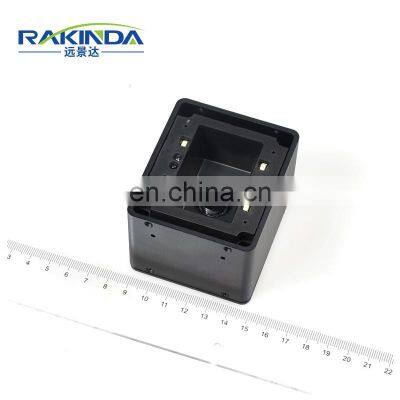

Dimensions  71 mm(L) X 61mm (W) X 51mm(H)
Certification FCC Part15 Class B, CE EMC Class B



 Rakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access ControlRakinda RD4500L Long Distance Mobile QR Code Scanner Module Barcode Scanner White LED for Parking Lot Payment Access Control

Application Case:

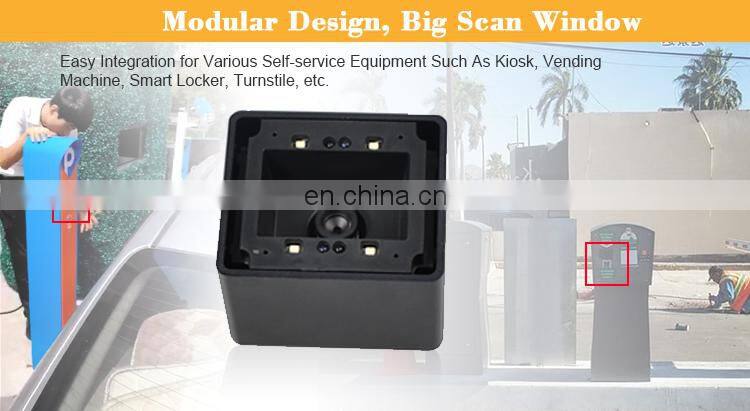

RD4500L fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Compatible OS: Windows, Linux, Android, Arduino, Raspberry Pi. Plug and Play

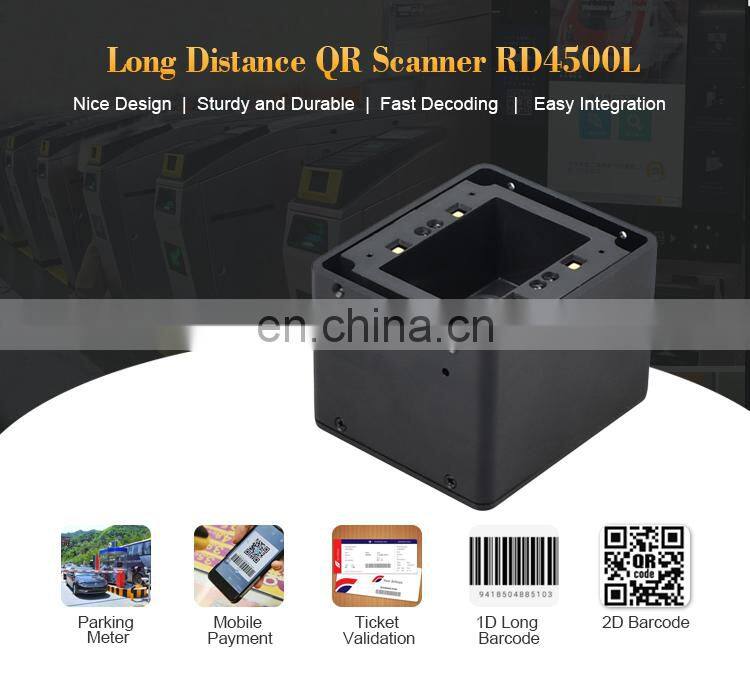

Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
