MS210 ZDC Matt Chrome Coated Tongue Cam Lock Marine Boxepush Button Sliding Door Cylinder Cabinet Cam Slam Lock

New style MS210-2 tongue lock

(1) Style no : MS210-2

(2) Material :  Zinc alloy

(3) Surface treatment :  With chrome plated or spray black .

(4) Color : Silver or Black

(5) Mainly used in :  All kinds of industrial cabinets doors , metal boxes , the othe Industrial fields .

(6) Structure Function :  It is no steel bolt design , use the tongue lock to button up to live the cabinet's door.

                                           When open , the key revolves and then prss the button to arouse the lock tongue constingeney ,

                                          and can pull the door directly.  Release the button , the lock tongue restores to original automaticly,

                                          revolve the key and lock the door.

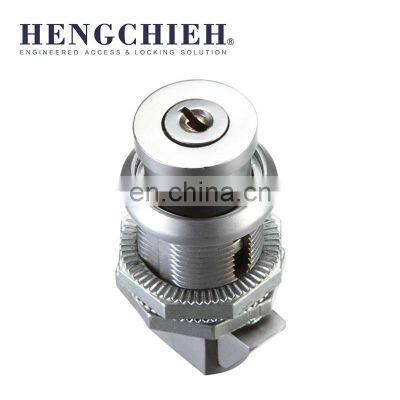

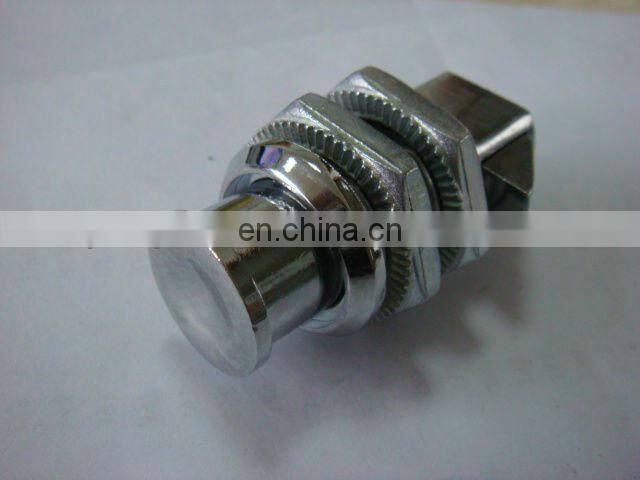

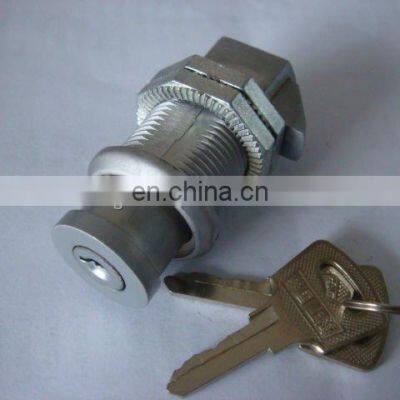

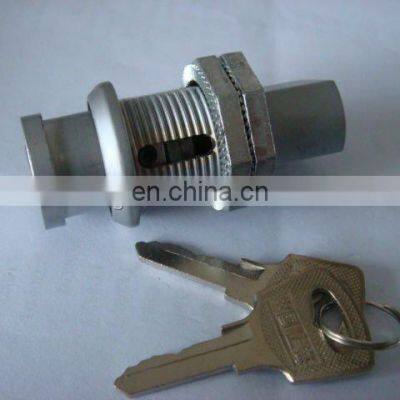

(7) The lock's picture as the bellowing

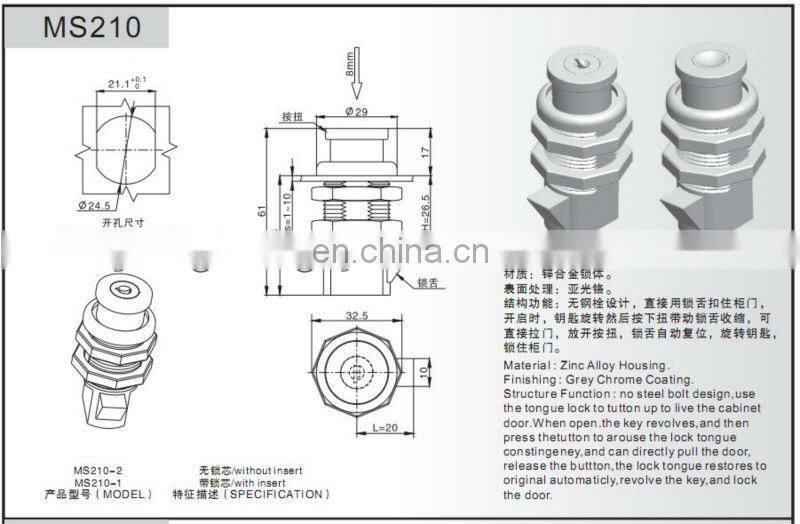

(8) Size diamension :

      As the bellowing size drawing

(9)  The packing way :

       Each one in polybag , then 8 pcs in one inner box , then 20 pcs inner boxes in one standard carton box.

       Total 160 pcs each carton box , the carton's size is 31cmX27cmX25cm , the weight will be about 22kgs.

(10) The delivery : will be 10 to 15 days ,after order confirmed.

(11) The min quantity will be 1000 pcs .

(12) The payment : will be 30% deposit before order , the other 70% before shipment .
