Chinese mini rc hydraulic excavator models

Name: Chinese mini rc hydraulic excavator models
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

Mini Crawler Excavator

1.Changchai 3-cylinder engine, could option Yanmar,Perkin-s

2. Pilot controls imported from Korea

3.High precision integrated instrument panel

4.Adopt load sensitive multi-way valve of Rexroth

5.Reinforced rubber track

Parameter

Mini Crawler Excavator

Specfication
Operation weight	2200kg
Bucket Capacity	0.08 m3
Bucket Width	490mm
Boom Length	2000mm
Arm Length	1000
Perofrmance
Swing speed	10 rpm
Travel speed	2.5 km /h
Grade ability	25%
Ground pressure	34 Kpa
Bucket digging force	18.2 kn
Arm digging force	10.5 kn
Max.breakout force	13.8kn
Engine
Model	Changchai ZN390Q
Power	20kw, 2200 rpm
Max.Torque	107.8 N.m /102.8 rpm
Displacement	1.642/1.813 L
Cylinders	3
Bore *Stroke	8890 /9095
Cooling type	Water
Overall dimension
Overall length Width height	409012002310mm
Track grounding length	1250mm
Track gauge	950mm
Min ground clearence	190mm
Min front swing radius	1115mm
Tall swing radius	1200mm
Dozer blade width	1200mm
Operation range
Max.digging radius	4023mm
Max.digging radius (ground level )	4095 mm
Max.digging depth	2150mm
Max.digging height	3800mm
Max.dumping height	2660mm
Boom offset	490/640mm
Boom Swing angle	70/50
Dozer blade width	1200*210mm
Dozer blade lifting /digging	174/218mm

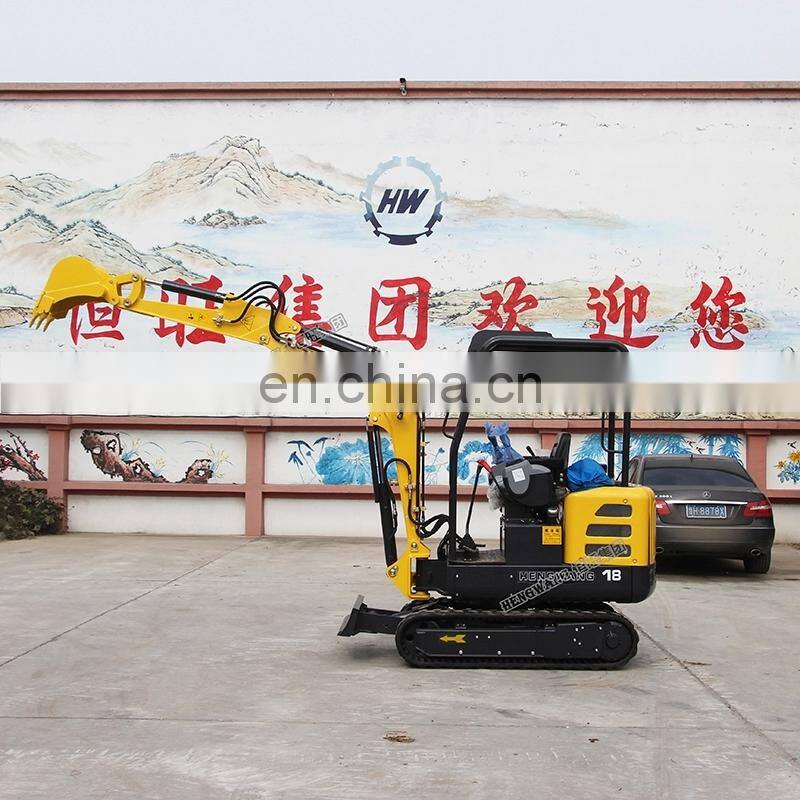

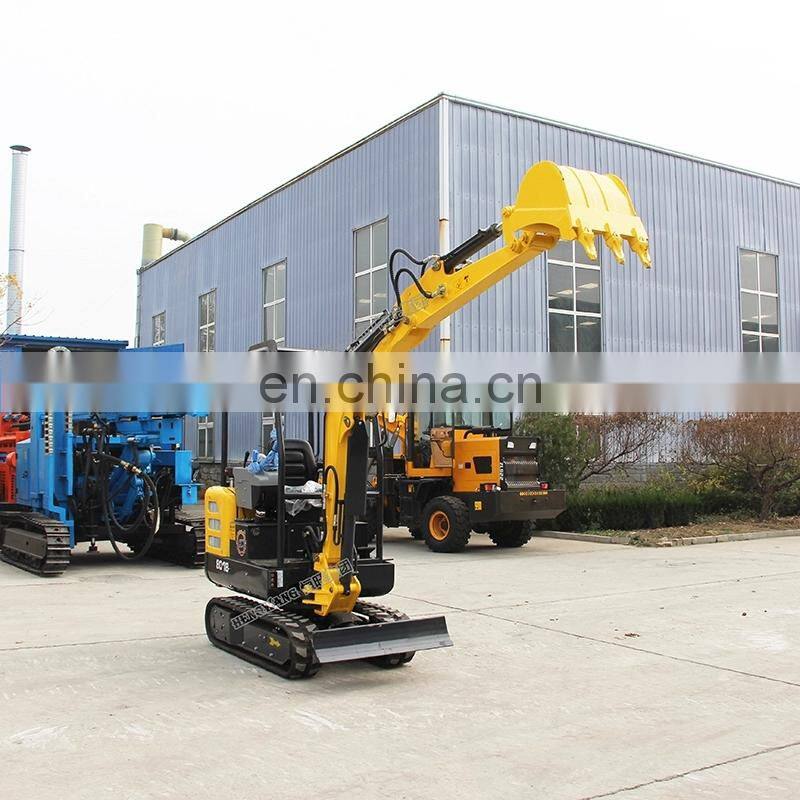

Figure Photo

Chinese mini rc hydraulic excavator models
