Product Description

Product Description

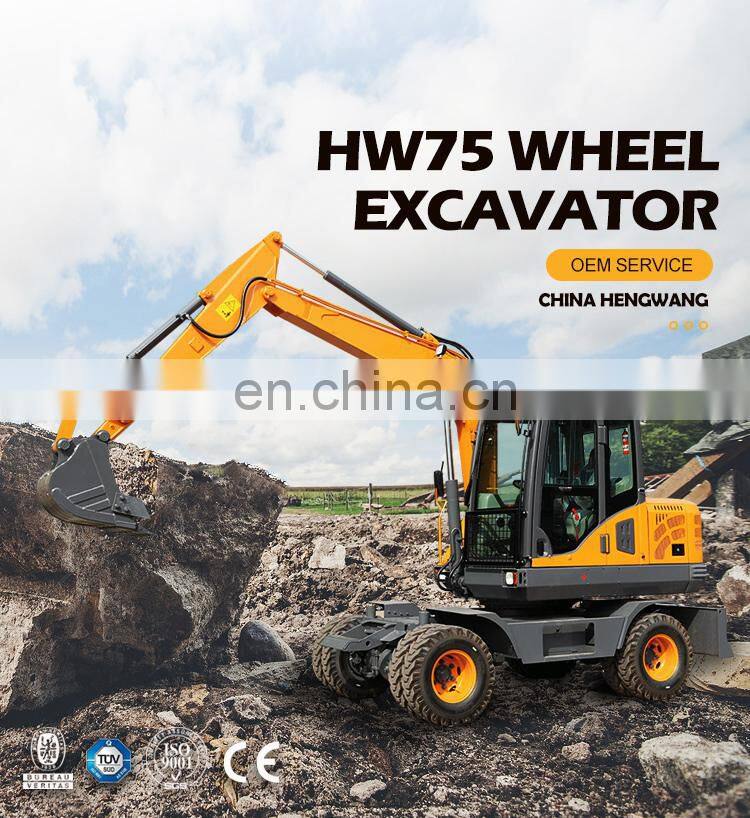

HW75 Wheel Excavator

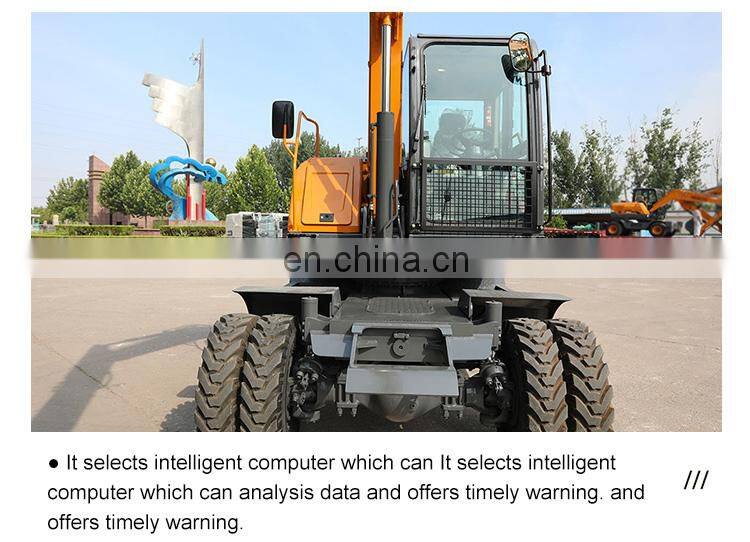

* 1.Electrical system: Equipped with color liquid crystal display, with self-test, monitoring, emergency fault alarm, goodhuman-computer interaction, high-configuration electrical control software, higher reliability.

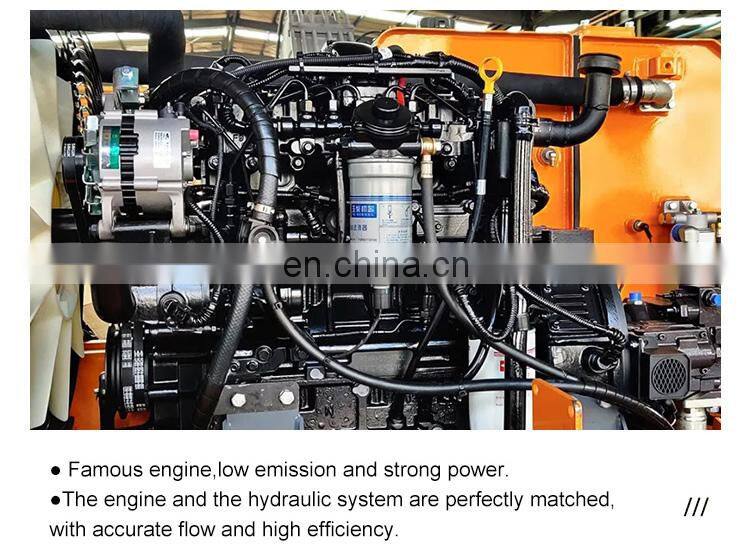

* 2. Power system: The advanced turbocharged exhaust engine has sufficient power reserves to maximize the power of the engine, achieve perfect matching and reduce power loss.
* 3.Hydraulic system: Imported international famous brand hydraulic parts, small power loss, fast action, good coordination of compound action, high efficiency and energy saving, high reliability and long service life.

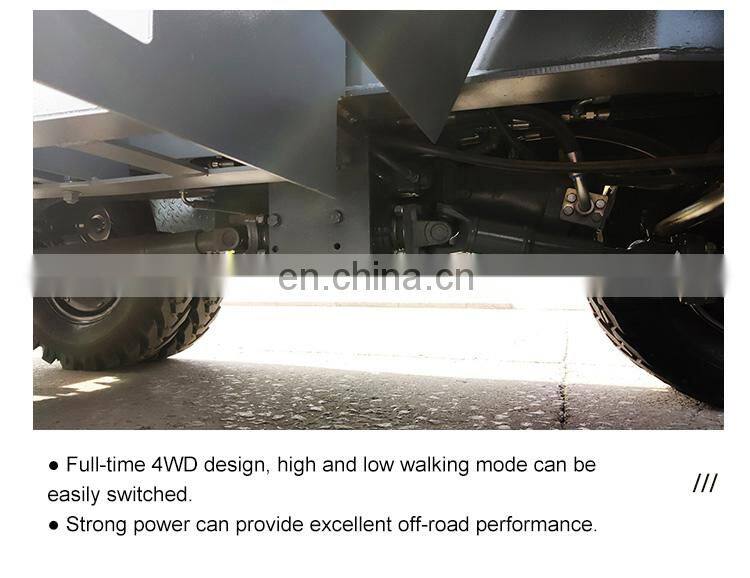

* 4. Traveling system: using heavy-duty front and rear drive axles and gearboxes to provide higher carrying capacity.

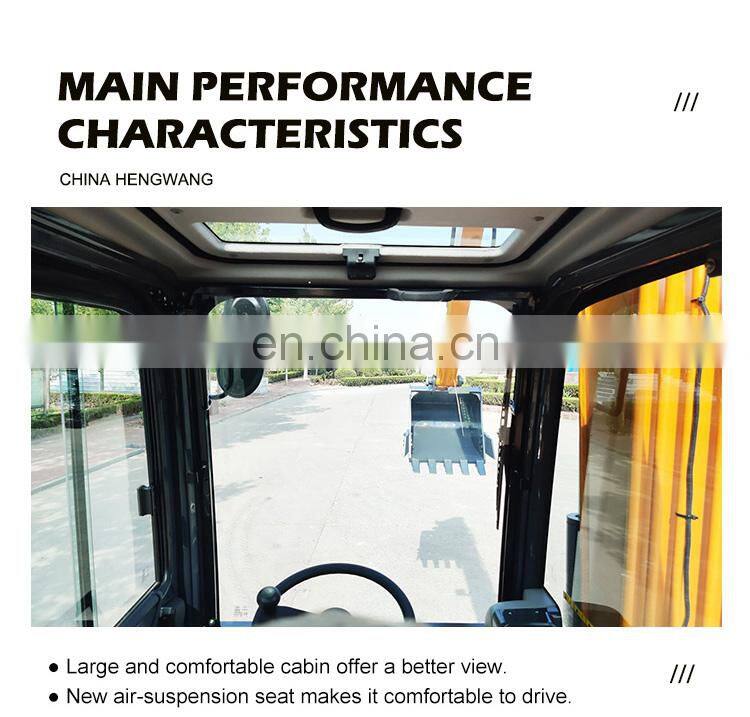

* 5. Cab: The new cab has a new interior design, wide vision, spacious and bright, humanized front gear mechanism, equipped with high-grade adjustable suspension seats, silicone oil shock absorption, and superior driving environment.
* 6. Cooling system: adopts parallel cooling installation method, easy to clean and install and remove, and has high cooling efficiency.
Construction Equipment Wheel excavator 7.5t HW75 for Sale


Technical data for Hengwang wheel excavators HW75 | ||||||||
Item | Unit | Data | ||||||
Model | / | HW75 | ||||||
Machine Weight | kg | 7000 | ||||||
Bucket Capacity | m3 | 0.28 | ||||||
Dimension | Track ground length | mm | / | |||||
Track length | mm | / | ||||||
Ground clearance | mm | 1023 | ||||||
Rear turning radius | mm | 1833 | ||||||
Rear length | mm | 1833 | ||||||
Upper width | mm | 2000 | ||||||
Total height (Cab) | mm | 2827 | ||||||
Min. ground clearance | mm | 217 | ||||||
Tire distance | mm | 1670 | ||||||
Wheelbase | mm | 2400 | ||||||
Upper rail wheel | pc | / | ||||||
Lower rail wheel | pc | / | ||||||
Boom length | mm | 3050 | ||||||
Stick length | mm | 1750 | ||||||
Total Length | mm | 5796 | ||||||
Track shoe width | mm | / | ||||||
Total width | mm | 2150 | ||||||
Performance parameters | Engine | Model | / | YD4JZG | ||||
Type | / | Water cooling / pressurization | ||||||
Cylinder bore*Stroke | mm | ¢95/105 | ||||||
Displacement | L | 2.977 | ||||||
Rated Power | kw/rpm | 48/2300 | ||||||
Max.Torque | N.m/rpm | 245/1610 | ||||||
Hydraulic system | Model(Hydraulic Pump) | Gear Pump*2 | SGP1A23F2H9-Shimadzu | |||||
Rated displacement | ml/r | 23+23 | ||||||
Pilot pump | Mpa | 3 | ||||||
Main valve | / | Parker | ||||||
Working pressure | Mpa | 20 | ||||||
Rated flow | L/min | 105.8 | ||||||
Hydraulic oil tank | L | 103 | ||||||
Fuel tank capacity | L | 125 | ||||||
working system | Swing speed | rpm | 10 | |||||
Walking speed | km/h | 0~30 | ||||||
Bucket digging force | kN | 35 | ||||||
Bucket stick digging force | kN | 28 | ||||||
Max.Tractive force | kN | 39 | ||||||
Gradeability | ° | 30 | ||||||
Ground specific pressure | Kpa | / | ||||||
Bulldozing plate (width * height) | mm | 2024/440 | ||||||
Scope of work | Parking brake | / | Air brake | |||||
Driving system | / | Air brake | ||||||
Max.digging distance | mm | 6074 | ||||||
Max.effective digging distance | mm | 5878 | ||||||
Max.effective digging distance | mm | 3228 | ||||||
Max.digging height | mm | 6202 | ||||||
Max.Unloading height | mm | 4533 | ||||||
Min.turning radius | mm | 2361 | ||||||
