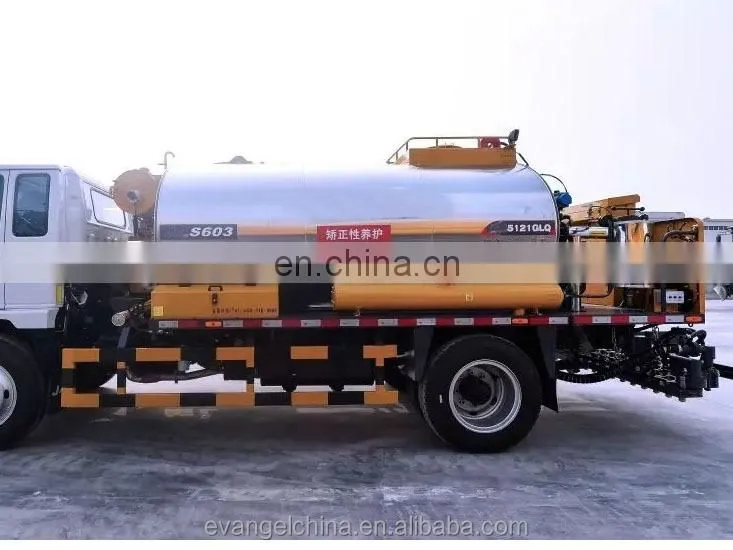

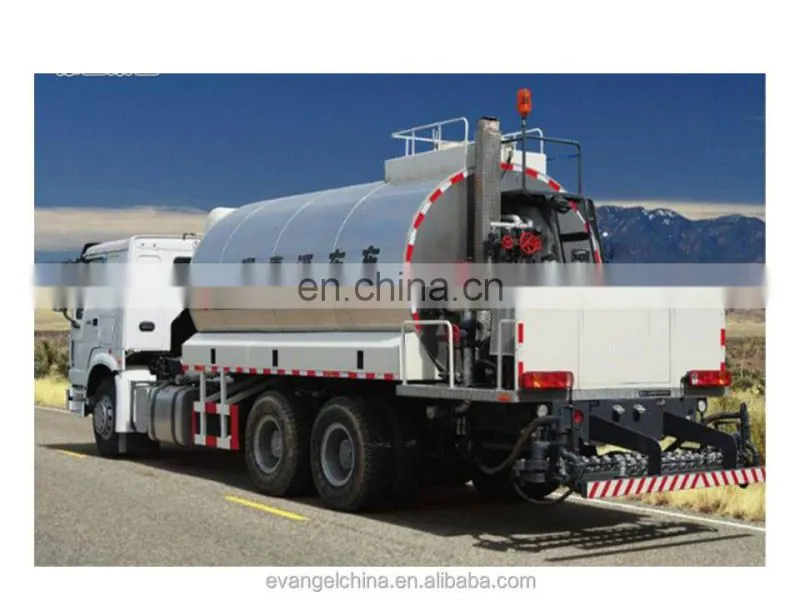

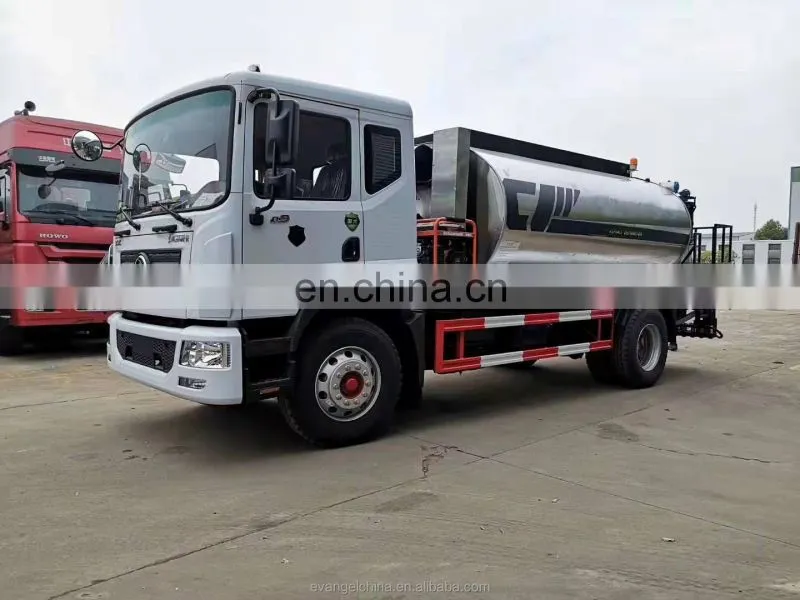

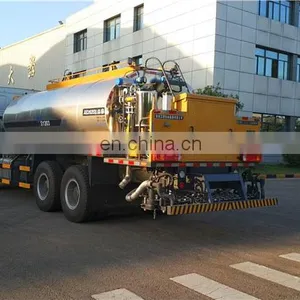

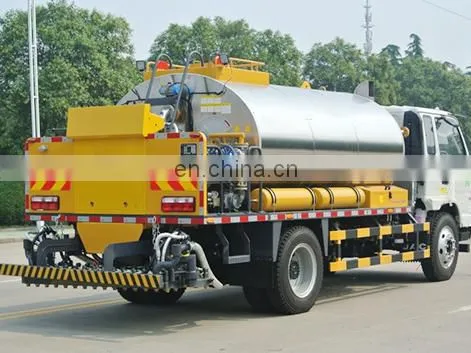

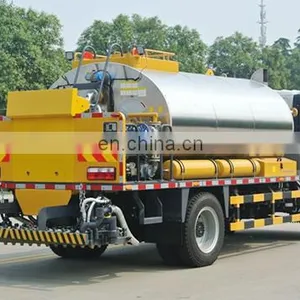

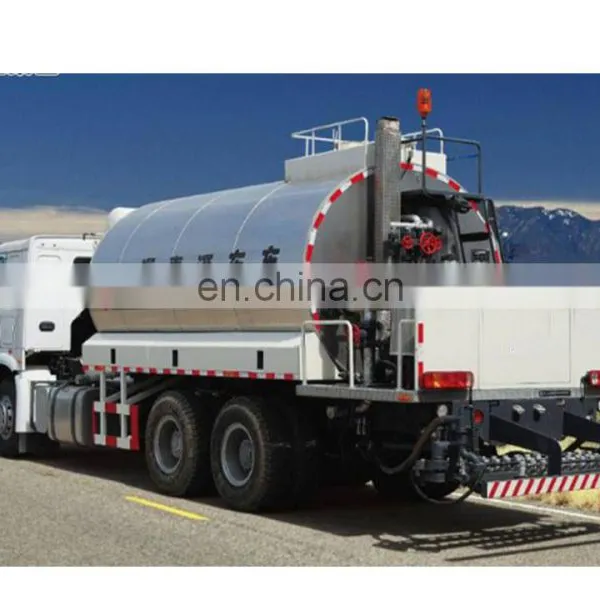

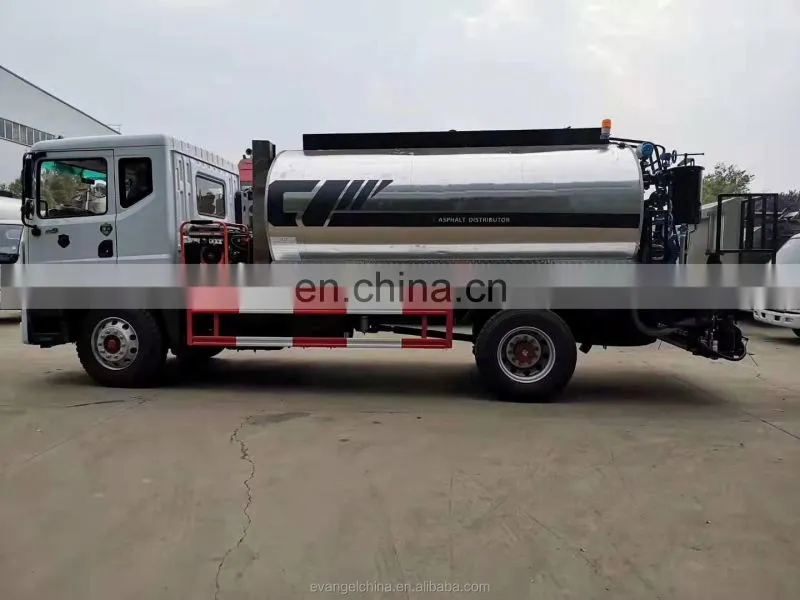

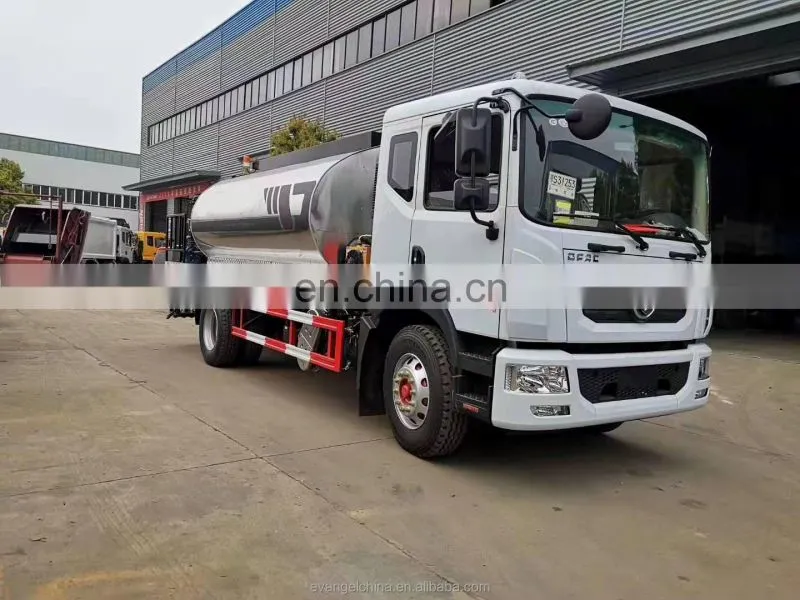

4x2 Left hand drive Dongfeng Euro5 180HP 7m3 asphalt distributor trucks for sale
- 1000 per Month
- T/T Credit Card
- Small foundation piling machine SR155 rotary drilling rig SR155C10 with max depth 56m
- 2022 Evangel Chinese 70 tons pipe layer SHANTUI SP70Y
- Tractors For Sale Tractor Price Mounted Water Well Drilling mini tractor
- 2022 Evangel Hot Selling Locomotive With Low Price
- DA / NA 32000 transmission assy Bulldozer spare parts for sale
- Diesel engine Duplex Mud Pump BW160 Bw250 BW320 Bw600 Bw850 for water well/mining
Product Description
4x2 Left hand drive Dongfeng Euro5 180HP 7m3 asphalt distributor trucks for sale
System:
1. Manual/automatic control of spray volume and working width. Each nozzle can be controlled separately, and the determinant nozzle can be freely combined to realize the width of any adjustable spray. Sprinkle control can be performed in the cab or on the rear platform.
2. The automatic control system can measure the speed of the vehicle and automatically calculate the number of revolutions of the asphalt pump according to the amount of the supplied cloth and the width of the spray and the type of asphalt, and then automatically adjust the number of pumps of the asphalt pump through the system.
3. vehicle-mounted rapid heating system (10-15 ° C / h), can improve heating efficiency and reduce construction assistance time to ensure the temperature of the cloth;
4. Punching nozzle This system can blow the remaining asphalt of the nozzle through the diesel and high-pressure air to prevent the asphalt from freezing in the nozzle and improve the service life of the nozzle.
Personalized equipment:
1. Parts of the key parts of the vehicle (hydraulic pump, hydraulic motor, asphalt pump, proportional valve, automatic control system), etc., adopt internationally best components to effectively extend the service life;
2. using the international advanced high-viscosity asphalt pump, the external asphalt can be pumped into the tank to achieve "self-priming", and the asphalt in the tank can also be pumped out;
3. the heating system uses imported Italian burners, with automatic ignition and temperature control;
4. All heat pipes have heat insulation layers on the outside to reduce the heat dissipation while avoiding burns to the operators;

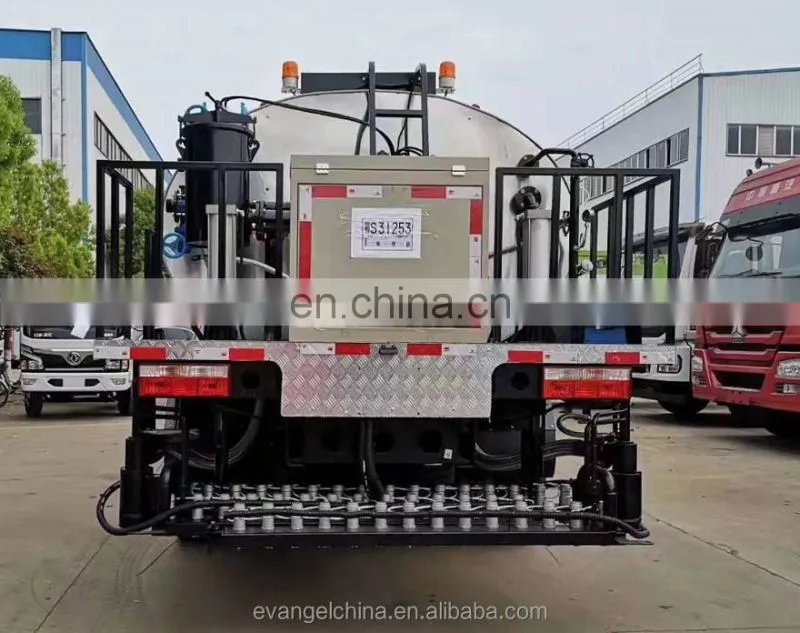

5. The asphalt spray bar adopts a three-stage folding structure. Double or multiple spray can be realized by moving the spreader bar up and down. By moving the spreader bar left and right, the spread range can be expanded, and the obstacle can be effectively avoided.
6. There is a sedimentation drain tank inside the asphalt tank, and it is equipped with liquid level display, alarm and safety device.
Dongfeng Euro5 180HP 7m3 asphalt distributor truck |
|||
Model |
EQ1161 |
||
Color |
white or optional |
||
Drive type |
4x2,Left hand drive |
||
Dimensions |
|||
Wheel base |
4500mm |
||
Overall Dimension |
8630x2500x3300mm |
||
Tank volume |
7m3 |
||
Weights |
|||
Curb weight |
10800kg |
||
Front /Rear tread |
1949/1865mm |
||
Front/rear overhang |
1230/2900mm |
||
Approach/Departure angle |
19/11(°) |
||
Engine |
|||
Engine model |
ISB180 50 |
||
Engine manufacturer |
Dongfeng Cummins Engineg Co.,Ltd |
||
Displacement |
5900L |
||
Emission standard |
Euro 5 |
||
Fuel type |
Diesel |
||
Drive Line |
|||
Transmission |
Fast brand 8 forwarder,1 reverse gear,Manual operation |
||
Power steering |
Yes |
||
Braking system |
Service brake |
air brake |
|
Axles |
|||
Front Axle-Model |
5ton |
||
Rear Axle(drive axle)-Model |
10ton |
||
Tire specification |
10.00R20,Radial tire ,6+1 spare tire |
||
Special function of asphalt distribution truck |
|||
Asphalt tank |
Material: |
4mm steel plate.50mm insulation layer,stainless steel outside .it can prevent the heating losing |
|
Tanker volume |
7m3,one φ440mm manhole |
||
Thermal asphalt |
160-180 centigrade |
||
Asphalt pump |
Model |
QGB680 |
|
Flow |
680L/min |
||
Resolve pressure |
1MPA |
||
Hydraulic pump |
CBQ550-L |
||
Control method |
Semi intelligence control ,one control one |
||
Spray width |
4.5m |
||
Spraying dosage |
0.2-3L/m2 |
||
Asphalt intelligent nozzle |
36units |
||
Heating method |
Heat conducting oil automatic heating |
||
Burner |
RIELLO G20,imported from Italy |
||
Gasoline generator |
6kw |
||
Spraying medium |
Emulsified asphalt, Ordinary hot asphalt, Modified asphalt |
