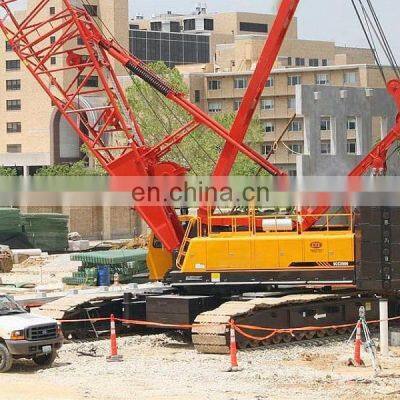

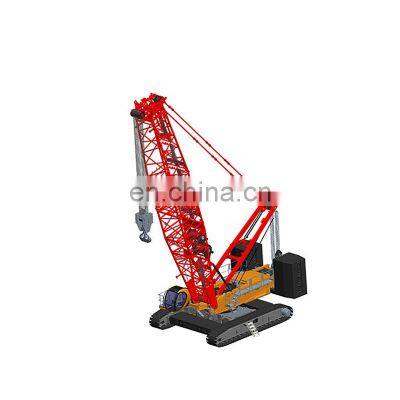

Heavy Lifting Crane 260 Ton Lattice Boom Crawler Crane SCC2600A for Promotion
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Heavy Duty 100ton Truck Lifting Crane STC1000S
-
China 50 Ton Lifting Truck Crane QY50KD With 50m Boom
-
Good Quality 25 Ton Mobile Crane Truck Prices China Truck Crane QY25K5D-1
-
China Xuzhou Good Quality 25t Truck Crane QY25K5L Sale
-
Mobile Truck Crane QY25K5D 25 Ton Heavy Lifting Crane Sale Price
-
Poluar Sale Truck Crane 50T Mobile Crane STC500E STC500S for Sale
Product Description
China big crawler crane 260 ton construction lifting crawler crane SCC2600A sale
Products Description
SCC2600 crawler crane's maximum lifting capacity is 260 tons, with multifunctional boom system, the crane may support a
combination of up to 11 types of operating conditions. The 260 ton crawler tower suits for various business requirements.
Superior Performance
Powerful Lifting Capacity
Tier 3 engine with rated power of 242kw (324hp)@2100rpm, rated torque of 1424Nm@1500rpm; the maximum lifting capacity of boom is
1470.4t•m (183.8t × 8m) and the longest boom length is 86m, maximum lifting capacity of luffing jib is 1125t•m (62.5t × 18m) and
the longest boom combination is 62 m+63m.
New Lift Operating Condition Design
The operating condition of 20m boom + 12m heavy fixed jib is adopted to meet the lifting requirement of shield machine used for
subway construction and similar products. The auxiliary hook is larger enough to lift the heavy object up to 96t. The load moment
limiter indicator can dynamically reflect the loading capacities of main and auxiliary hooks.
Efficient Self-Handling Technology
The mast can be easily lifted, and the clutch traction winch reeving operation can be done simply by pressing one button; it can
support the machine self-disassembly; the quick-change rope connectors and winch rope head can be used.
Safety and Reliability
Safe Control System
Switch between the operation and installation modes ensures the safety, and the crane's functions including real-time display of
machine levelness, off-line stop, emergency electric control, lightning protection, and closed-circuit monitoring are highly
convenient and reliable.
Reliable Function Guarantee
Sufficient safety margin in structural and mechanical design; the control system runs stably even in extreme cold / hot weather,
high altitude and sandy regions.
Large Chassis Design
The large chassis with a 6.7m track gauge ensures excellent stability within 360° rotation; powerful traveling traction and
stability maximize the crawler crane's advantages to the most.
Reliable Transmission System
Advanced hydraulic components and load feedback control technology with independent property rights can ensure the stable and
reliable operation of hydraulic system.
High Return & Low Cost
Global Transportation
The transport weight of main machine is limited within 45 tons, the transport width is less than 3m and the transport height is
less than 3.2m, thus saving the transport cost significantly.
Convenient Maintenance
It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote
monitoring system is optional for maintenance and management.
Large Fuel Tank Design
The fuel tank capacity is 1050L, which is greatly increased compared with the old models (400L), avoiding refueling frequency.
Wide Adaptability
It complies with the non-road Stage III emission standards of Europe and America, and can be widely used in boat building, subway
construction, metallurgy and infrastructure.
combination of up to 11 types of operating conditions. The 260 ton crawler tower suits for various business requirements.
Superior Performance
Powerful Lifting Capacity
Tier 3 engine with rated power of 242kw (324hp)@2100rpm, rated torque of 1424Nm@1500rpm; the maximum lifting capacity of boom is
1470.4t•m (183.8t × 8m) and the longest boom length is 86m, maximum lifting capacity of luffing jib is 1125t•m (62.5t × 18m) and
the longest boom combination is 62 m+63m.
New Lift Operating Condition Design
The operating condition of 20m boom + 12m heavy fixed jib is adopted to meet the lifting requirement of shield machine used for
subway construction and similar products. The auxiliary hook is larger enough to lift the heavy object up to 96t. The load moment
limiter indicator can dynamically reflect the loading capacities of main and auxiliary hooks.
Efficient Self-Handling Technology
The mast can be easily lifted, and the clutch traction winch reeving operation can be done simply by pressing one button; it can
support the machine self-disassembly; the quick-change rope connectors and winch rope head can be used.
Safety and Reliability
Safe Control System
Switch between the operation and installation modes ensures the safety, and the crane's functions including real-time display of
machine levelness, off-line stop, emergency electric control, lightning protection, and closed-circuit monitoring are highly
convenient and reliable.
Reliable Function Guarantee
Sufficient safety margin in structural and mechanical design; the control system runs stably even in extreme cold / hot weather,
high altitude and sandy regions.
Large Chassis Design
The large chassis with a 6.7m track gauge ensures excellent stability within 360° rotation; powerful traveling traction and
stability maximize the crawler crane's advantages to the most.
Reliable Transmission System
Advanced hydraulic components and load feedback control technology with independent property rights can ensure the stable and
reliable operation of hydraulic system.
High Return & Low Cost
Global Transportation
The transport weight of main machine is limited within 45 tons, the transport width is less than 3m and the transport height is
less than 3.2m, thus saving the transport cost significantly.
Convenient Maintenance
It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote
monitoring system is optional for maintenance and management.
Large Fuel Tank Design
The fuel tank capacity is 1050L, which is greatly increased compared with the old models (400L), avoiding refueling frequency.
Wide Adaptability
It complies with the non-road Stage III emission standards of Europe and America, and can be widely used in boat building, subway
construction, metallurgy and infrastructure.
Specification
Performance | Max rated lifting capacity | 260t |
Max lifting moment | 1470.4t.m | |
Max lifting moment with fixed jib | 931t-m | |
Max lifting moment with lufling jib | 1125t-m | |
Boom length | 20-86m | |
Longest(boom+fixed jib) | 62+42m | |
Longest(boomtluffing jib) | 62+63m | |
Boom luffing angle | 30°-85° | |
Fixed jib offset angle | 10°30° | |
Speeds | Rope speed of main/auxilary winches | 0-124(outermost)m/min |
Rope speed of boom/jb luffing winches | 0-108(outermost)m/min | |
Single rope pull | 17t | |
Rope diameter | Φ28mm | |
Travelling speed | 0-1.2/0-0.53km/h | |
Slewing speed | 0-1.25rpm | |
Gradeability | 30% | |
Engine | Model | Cum-mins QSL9-C325 |
Rated power | 242/2100KW/rpm | |
Transportation | Max transport weight of single part | 45t(with boom and jib lifting winches) |
Maxtransport dimensions | 13320×3000×3200mm | |
Average ground pressure | 0.14MPa |
