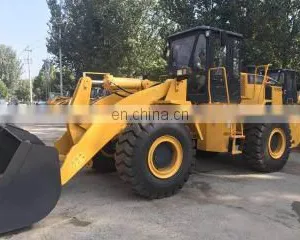

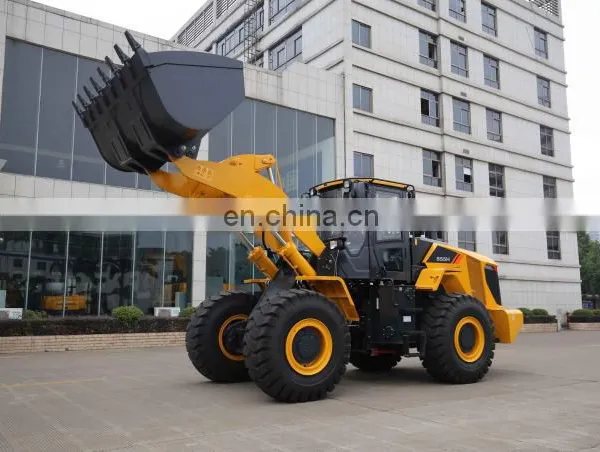

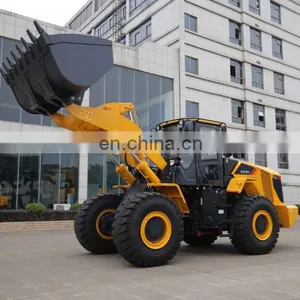

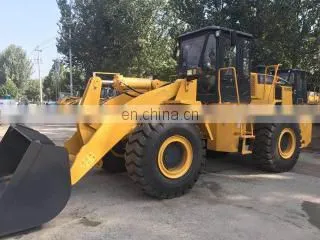

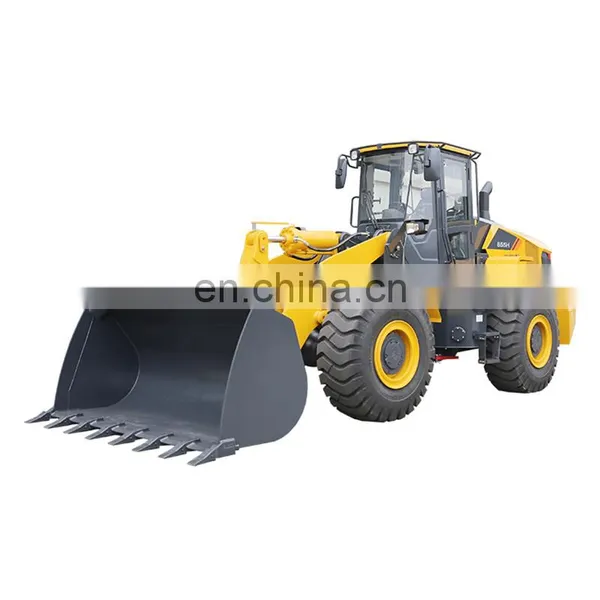

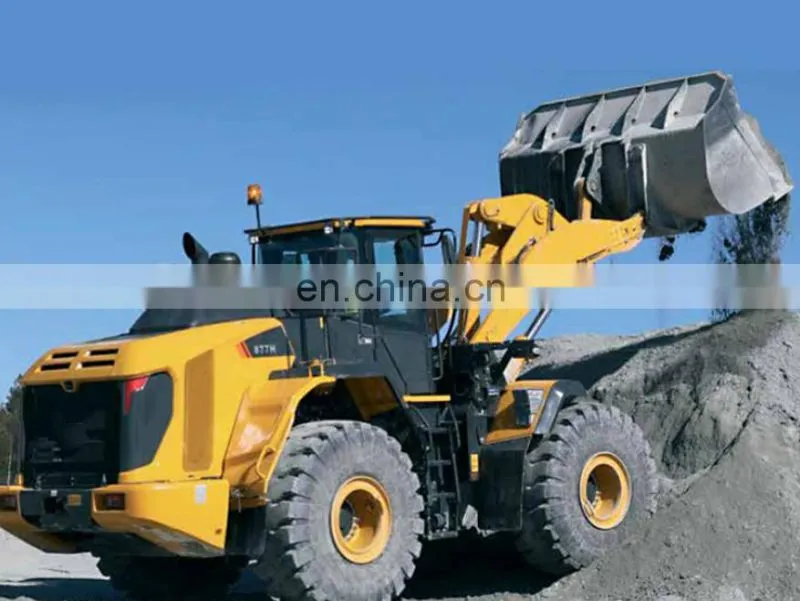

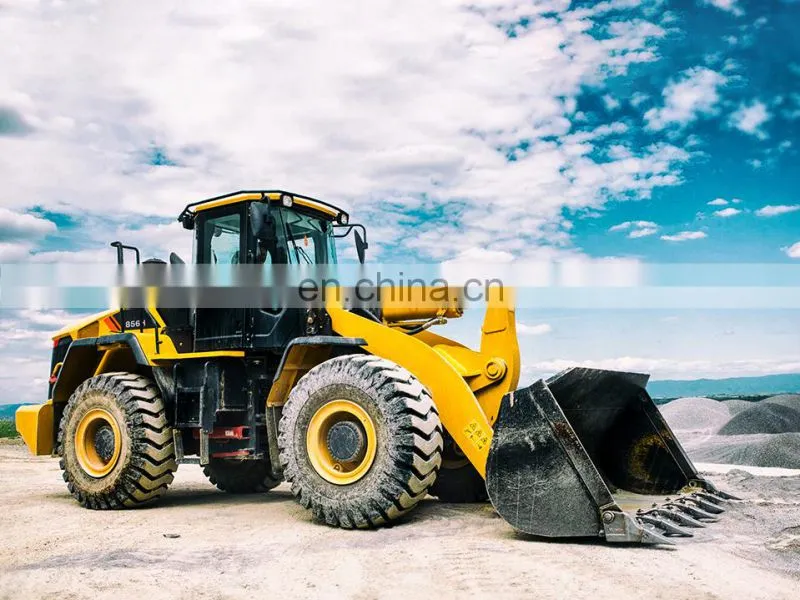

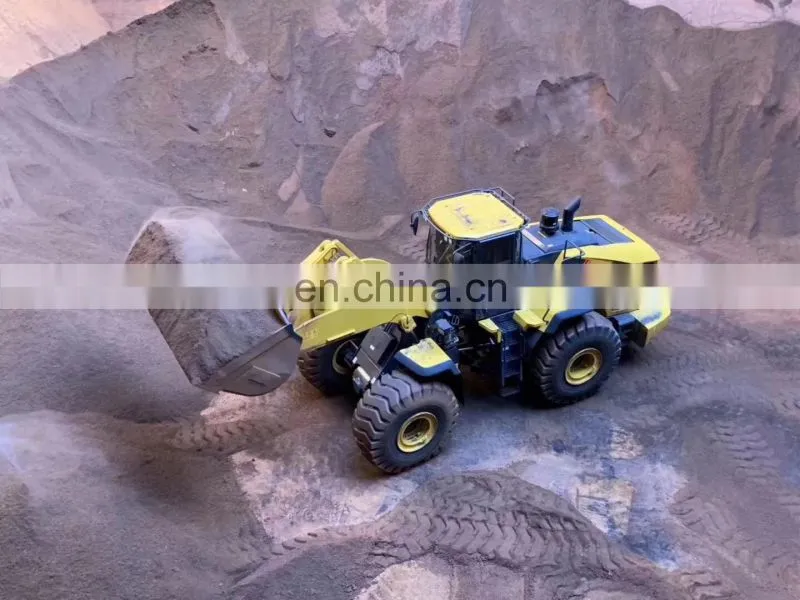

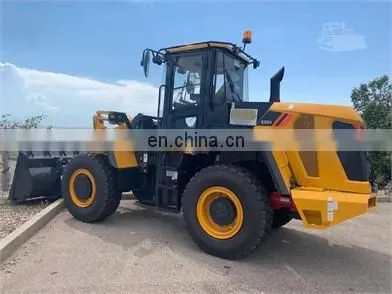

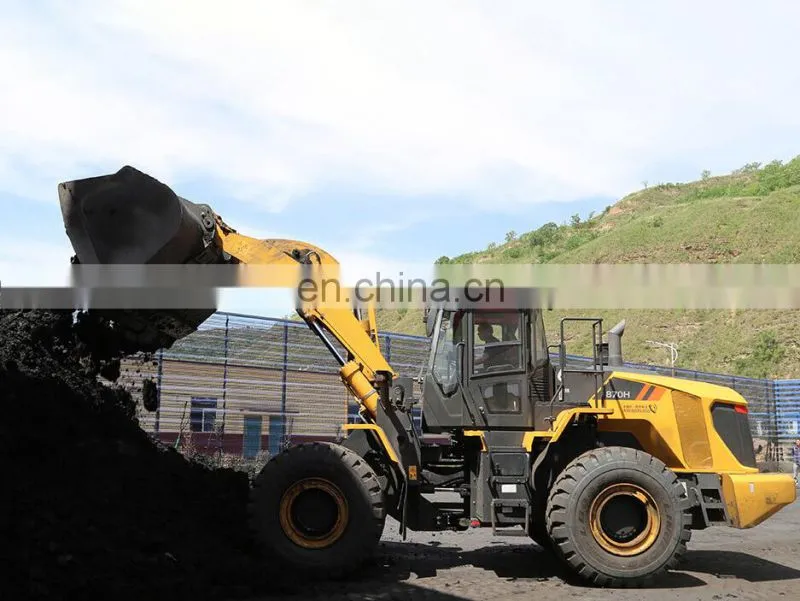

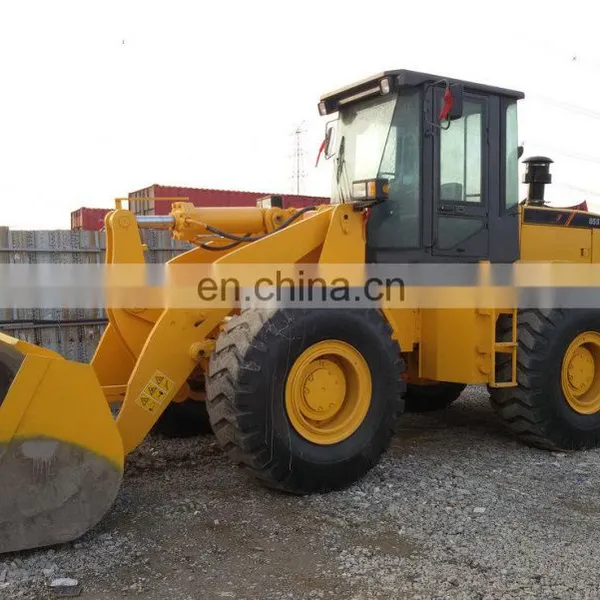

Hot sale 5000kg shovel loader wheel CLG855H/855H/856H with standard 3m3 bucket
Standard bucket 3.0 m³
Gross power 162 kW (220 hp) @ 2000 rpm
Net power 149 kW (202 hp) @ 2000 rpm
Rated load 5000 kg
Total cycle time 10.4 s
Tipping load-full turn 10600 kg
Bucket breakout force 165 kN
Dump clearance, full height discharge 2972 mm
Dump reach, full height discharge 1146 mm
Model Cum-mins 6LT9.3
Emissions EPA Tier 2 / EU Stage II
Cooling system Charge air cooling
Length with bucket down 8202 mm
Width over tires 2750 mm
Cab height 3450 mm
Turning radius, outside of tire 6103 mm
Bucket capacity 2.6-5.2 m³
General Purpose 3.0 m³
Light material 4.2, 4.7, 5.2 m³
|
Bucket capacity |
3.0m3 |
|
Rated Load |
5000kg |
|
Operating weight |
16000kg |
|
Torque ratio |
2.55 |
|
Transmission |
|
|
Type |
conunter shaft-type power shit,semi-automatic |
|
Pressure of transmission |
1.6~1.8MPa |
|
Brake |
|
|
Driving brake |
caliper discs,air hydraulic actuated on al four wheel |
|
Parking brake |
shoe brake, applied by manually/air control |
|
Emergency brake |
using parking brake,applied by air pressure control |
|
Maximum oil pressure |
12.3 Mpa |
|
Major reducer |
|
|
type |
spiral bevel,1-stage reduction |
|
speed ratio |
4.625 |
|
Engine |
|
|
Rated Power |
162kw/2000r/min |
|
Model |
WD10G220E23 |
|
Type |
water-coded,l-arrangement,direct injection,4-stroke diesel engine |
|
Number of cylinder |
6 |
|
Bore × stroke |
121×150mm |
|
Displacement |
9.056L |
|
Max.torque |
920N.m |
|
Governor |
centrifugal all speed governor |
|
Coding system |
forced circulation by centrifugal pump pusher type fan |
Feature of product
1. Small and flexible, multi-purpose, easy to operate, safe, comfortable and easy to maintain
2 .Articulated frame, high-intensity boom design, structural optimization, and stable operation.
3. Split detachable cab, panoramic view, double door design, comfort and safety.
4. The Luochai turbocharged engine is powerful and meets the national three emissions.
5. The joystick can be equipped with mechanical double handles, mechanical single handles and pilot single handles, which are suitable for different operating habits.
