13.5 Ton Small Crawler Hydraulic Pipe Excavator XE135D

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

13.5 Ton Small Crawler Hydraulic Pipe Excavator XE135D

XE135D has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life. Combined with the new generation XEICS intelligent control system independently developed by excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer. 1. Ecological and economical * Customized exclusive engine can meet Euro stage IV Emission Standard. * Well-known hydraulic components, higher eficiency. * Minicomputer control technology makes operation more economical. 2.Multiple applications * Different boom, arm and bucket combinations can provide excellent all-around versatility. * Multi-functional work tool system can meet various operational requirements including digging, breaking and so on. 3. Comfortable operating experience * Air conditioner and heater ensure the appropriate temperature. * Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide multiple information.

Specification

Model			Unit	XE135D
Operating weight			Kg	13200
Bucket capacity			m³	0.32-0.61
Engine	Model engine	/	QSF3.8
		Injection	/	√
		Four strokes	/	√
		Water cooling	/	√
		Turbo-charging	/	√
		No. of cylinders	/	4
		Rated power/speed	kw/rpm	86/2200
		Maximum torque/speed	N.m/rpm	470/1300
		Displacement	L	3.8
Main performance	Travel speed	km/h	5.2/2.9
		Swing speed	r/min	11
		Gradeability	°	35
		Ground pressure	kPa	40.4
		Bucket digging force	kN	99.1
		Arm digging force	kN	68
		Maximum tractive force	kN	134
Hydraulic system	Rated flow of main pump	L/min	125.4*2
		Travel system pressure	MPa	34.4
		Swing system pressure	MPa	25
		Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
		Hydraulic tank capacity	L	105
		Engine oil capacity	L	11
Appearance size	Overall length	mm	7795
		Overall width	mm	2525
		Overall height	mm	2880
		Width of platform	mm	2490
		Total width of chassis	mm	2490
		Track shoe width	mm	500
		Wheel base of crawler	mm	2918
		Track gauge	mm	1990
		Counterweight clearance	mm	931
		Min. ground clearance	mm	466
Working range	Max. digging height	mm	8638
		Max. dumping height	mm	6174
		Max. digging depth	mm	5546
		Max. vertical wall digging depth	mm	4698
		Max. digging radius	mm	8304
		Min. swing radius	mm	2445
Standard	Length of boom	mm	4600
		Length of arm	mm	2520
		Bucket capacity	m³	0.52

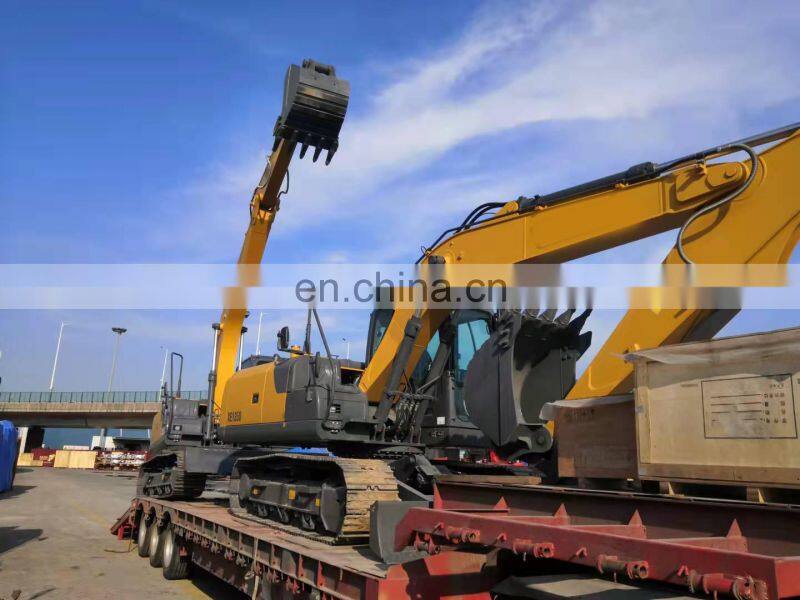

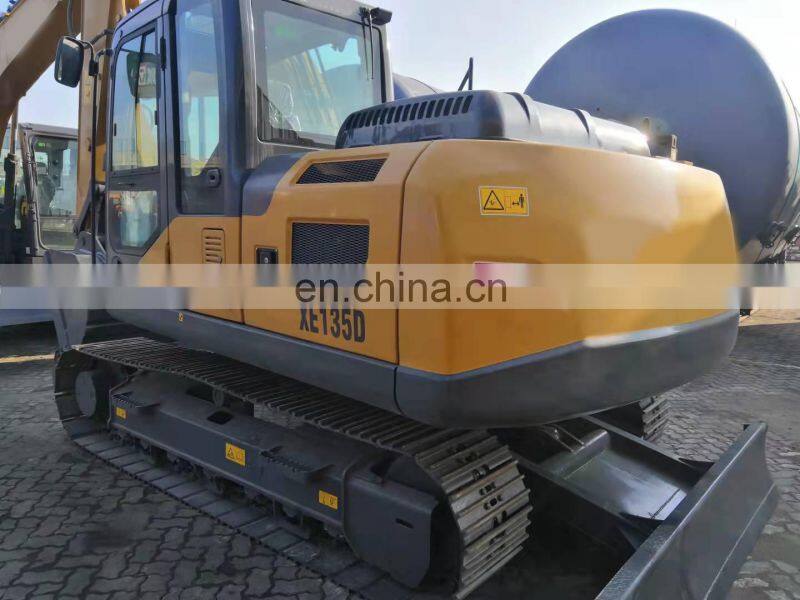

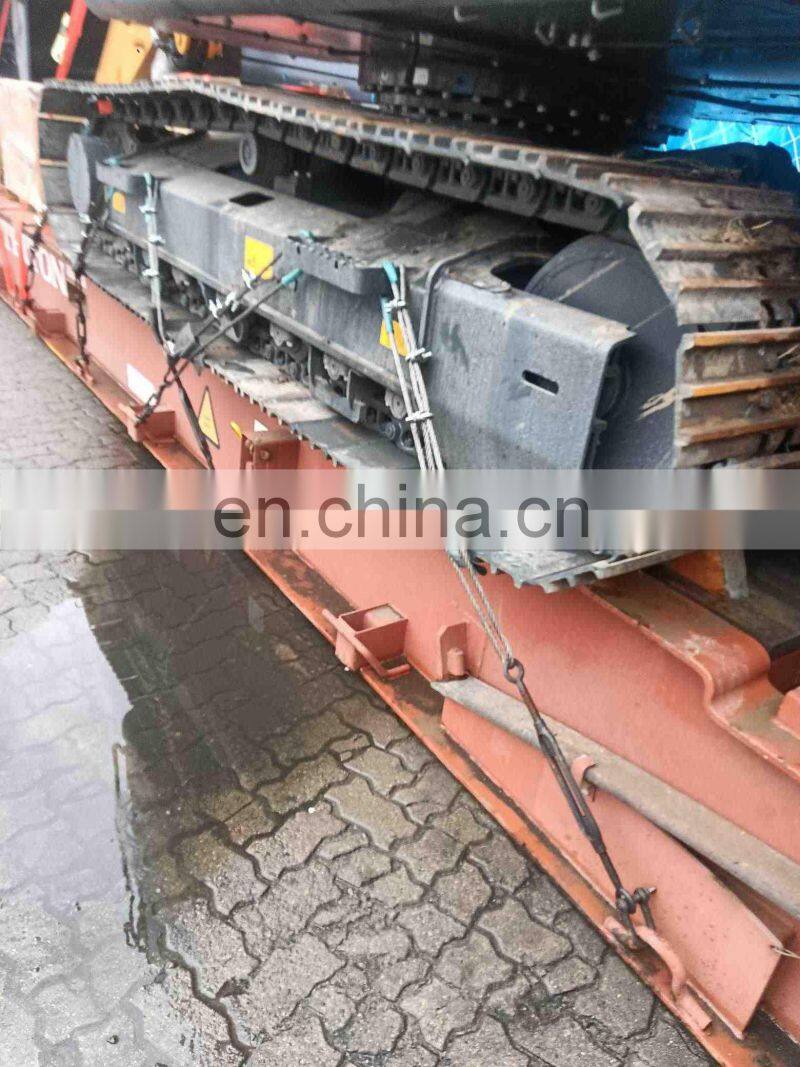

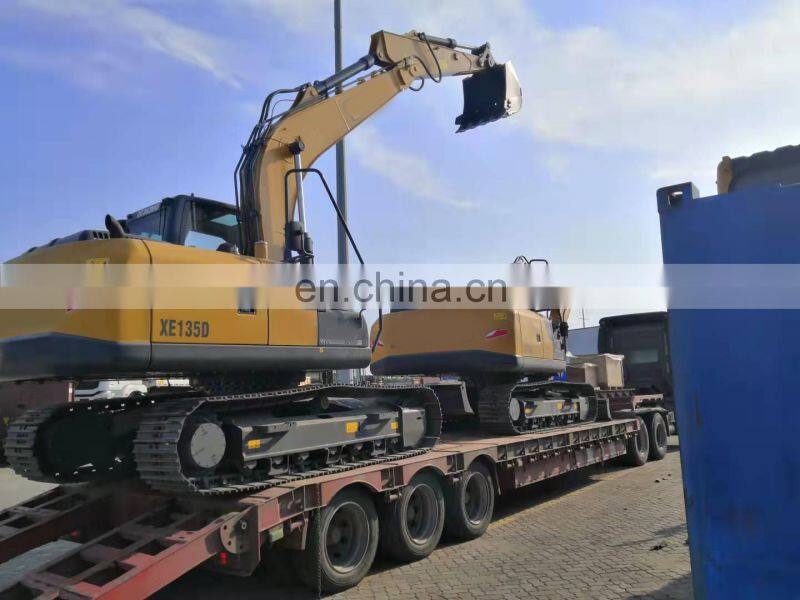

Details Images
