Home > Products > Site dumper > Multifunctional Constructed 5 Ton Site Dumper Agricultural Dumper Truck With Front Self Loading Bucket

Multifunctional Constructed 5 Ton Site Dumper Agricultural Dumper Truck With Front Self Loading Bucket

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

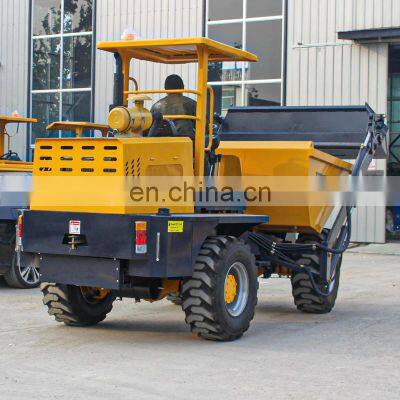

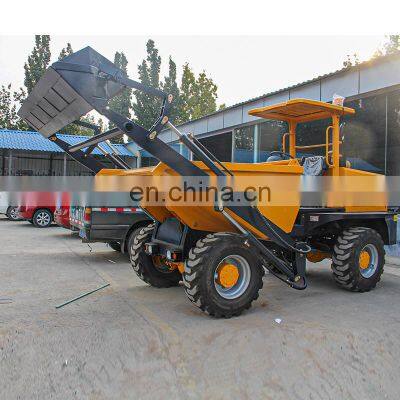

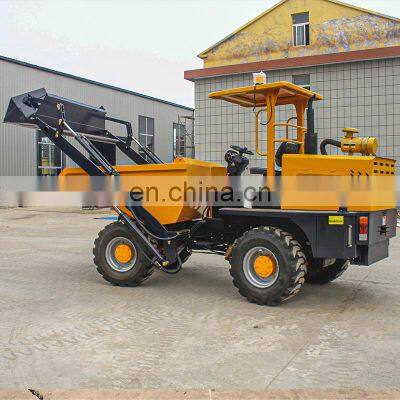

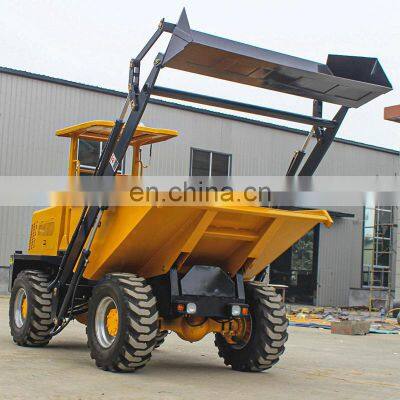

Multifunctional constructed 5 ton site dumper agricultural dumper truck with front self loading bucket

Details Images

SPECIFICATIONS OF FCY50/FCY50R/FCY50S
1		Payload	5000kg
2		Operating weight	3450 kg/ FCY50S is 3750 kgs
3		Hopper capacity	2.0m3
4		Maximum speed	25.2 km/h
5		Handbrake available on grade	18%
6		Max grade ability	25%
7		Distance of road after brake	≤2.5m with load and speed 10km/h
8		Minimum turn radius	4 m
9		Ground clearance	248 mm
10		Noise level	≤108 db(A)
11		Loading discharge angle	48.4
12		Time of discharge	6s
13		Hydraulic pressure	16 Mpa
14		Wheel base	2200 mm
15		Wheel tread	1580 mm
16		Engine power	47KW
17		Dimensions (LxWxH)	4400x2100x2700 mm
Engine
Engine
1	Model/Maker		4102
2	Type		Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled
3	Bore x stroke piston		100 x 102 mm
4	Power		47KW
5	Speed		2400 R/Min
6	Max t		120@2100v/p
7	Weight		350 kg
Transmission system
Hydraulic Torque Converter				2 Forward and 2 reverse gears
Type				power shift, spur gear constantly in mesh
Model				265
Type				3-elements.single stage
Torque ratio				3.06
System pressure				160(kgf/c㎡)

Optional:

1.the cab

2.air condition

3.Deutz or Cummins engine

4.31 * 15.5-15 tyres

5.Front turn style can be added to level the floor

6.Electronically controlled gearbox

Similar Products

Company Profile

Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang, China for 14 years. We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.

For some new customers, please do not worry about the problem of cooperation, we will guide you to correctly cooperate with us. That's easy. That's easy. We can arrange sea freight for you. You can pick up the machines at the local port in your country.

We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.

Products Packaging

Customer

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
