Suzhou Jwell precision machinery co., ltd. is a profession-al T-die extrusion manufacturer. Specializing in the man-ufacturing of different kinds for sheet, plate, film, coating single-layer and multi-layer co-extrusion die series, Various kinds of distributors, melt pumps and hydraulic screen changer, mirror roller etc, we devote ourselves work for plastic producer to provide the most value of the extrusion system; With the abundant manufacturing experience and continuously technical innovation, equipped with modern CNC processing machines,our company is making the products more perfect. Our prod-ucts widely used in PP, PE, PET, GPPS, HIPS, ABS, PC, PMMA, PVC, EVA, PVB etc raw material production.
Each T-die manufactured by our company’s engineer that according to customer requirement. Our engineers coordinate with the customer to confirm the T-die design, material to be used, flow channel, temperature control. Thickness adjustment, witdh adjustment and other factors of the T-die.
"Excellent quality, perfect as one" is our company quality policy "Honesty and treat people" is JWELL's core concept. We will try to create more superior die series with high-quality, provide thoughtful services, to help custom-ers and cooperation partners to create more value.

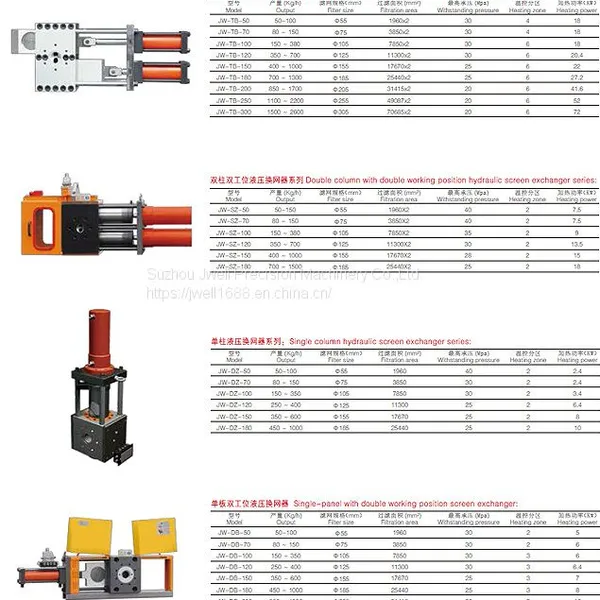

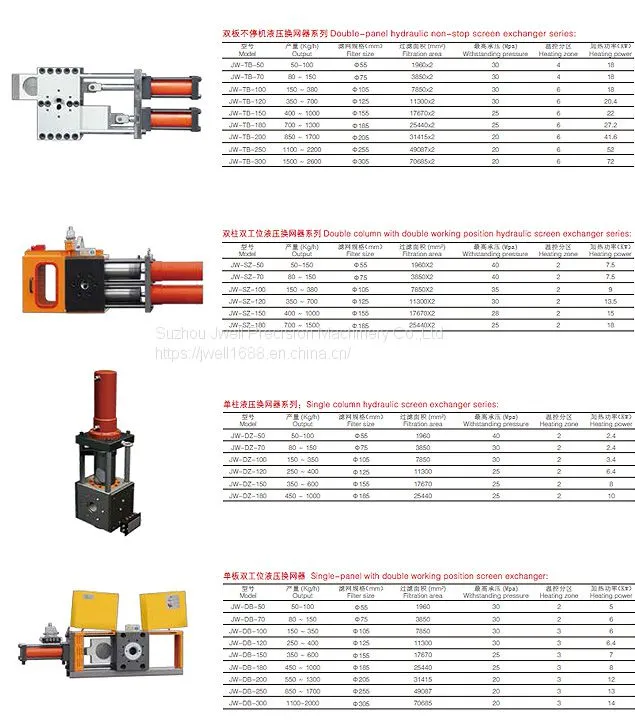

Hydraulic Screen Changer System:
Single-panel with double working position screen changer:
● Extruder screw can draw from the screen changer directly, it is convenient to remove and clean.
● Adopts advanced pressure adaptive sealing technology, through the pressure of polymers to drive seal components, to achieve the best sealing effect and change screen more quickly.
● Penetrating type bolts connect the extruder.
● Modular combinations, suitable for different standard extrusion machine, and convenient to clean.
● Adopts the inner heating device, for safe and energy-saving. Fully enclosed wires, for elegant appearance.
Double-panel hydraulic non-stop screen changer series:
● Adopts advanced pressure seal technology, through the pressure of polymers to drive seal components, to achieve the best sealing effect and change screen more quickly.
● Using high grade alloy steel, after nitriding process to extended product life span greatly.
● Alternating work mode, can guarantee the material flow continuous, stability and the process parameters of repeatability,when change the screen.
● After optimization of rheological through cellular plate, to reduce the extrusion process fluid shear.
● Using inner heating device, for the safe and energy-saving. Fully enclosed wires, for the elegant appearance.
● Modular combination patterns, suitable for different standard extrusion machine, and convenient to clean.
Single column hydraulic screen changer series:
● No mechanical seal structure, which can guarantee the
high pressure and high temperature condition not seep
materials. Effectively reduce the change screen resis-
tance, reduce hydraulic system pressure of work.
● One-piece structure, without carrying aperture, strengthen bearing
pressure, make the system load pressure is higher.
● Using High quality alloy steel,after nitriding process to extended product life span greatly.
● Integral engineering oil cylinder, a long use life.
● After optimization of rheological through cellular plate, to reduce the extrusion process fluid shear.
● Using inner heating device, for safe and energy-saving. Fully enclosed wires, for the elegant appearance.
Double column with double working position hydraulic screen changer series:
● No mechanical seal structure, which can guarantee the high pressure and high temperature condition not seep material. Effectively reduce the change screen resistance, reduce hydraulic system work pressure .
● Using High quality alloy steel, after nitriding process to extended product life span greatly.
● Integral engineering oil cylinder, a long use life.
● Alternating work mode, can guarantee the material flow continuous, stability and the process parameters of repeatability, when change the screen
● After optimization of rheological through cellular plate, to reduce the extrusion process fluid shear.
● Cooperate with stroke position sensor, change the screen more accurate, more controllable.
