SNS SDA32X25 Pneumatic Double Acting Small Thin Compact Air Cylinder

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

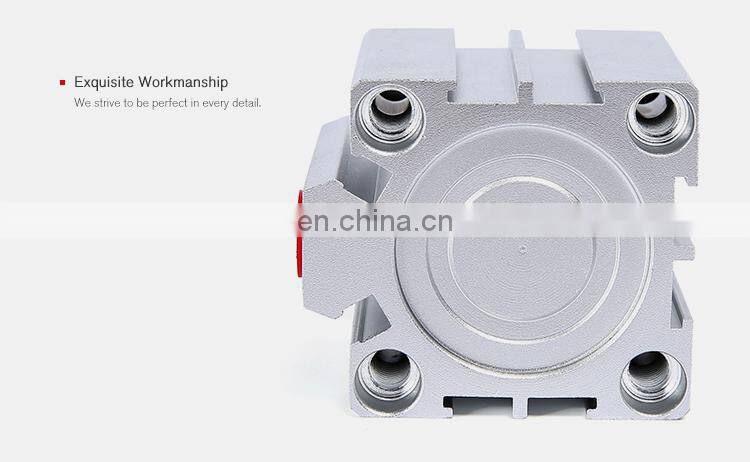

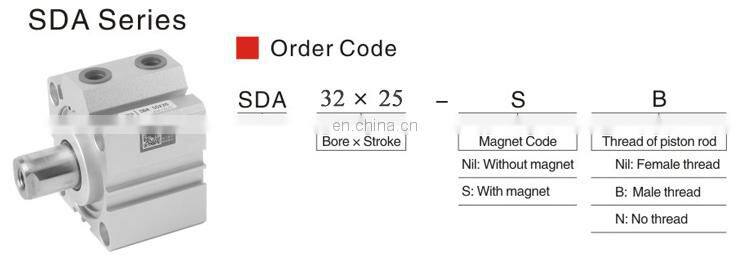

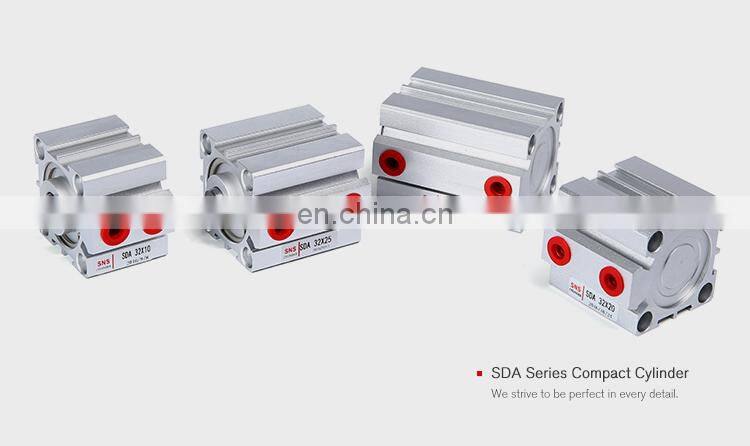

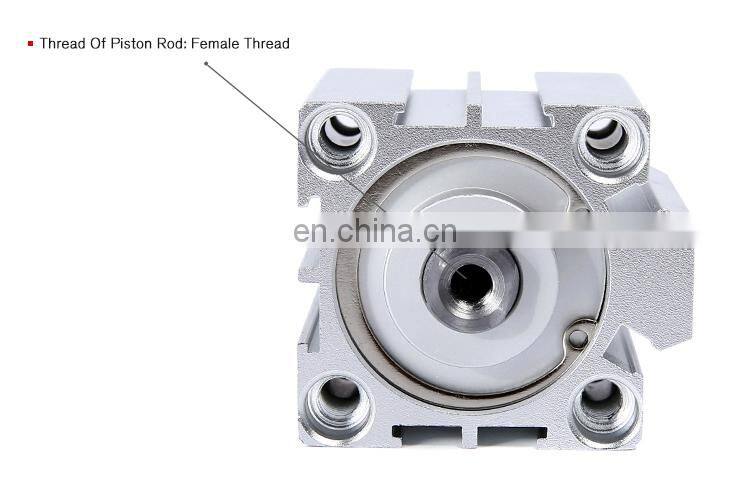

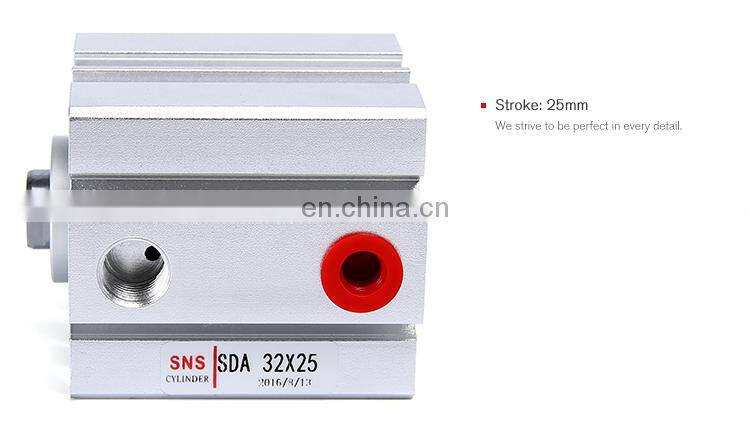

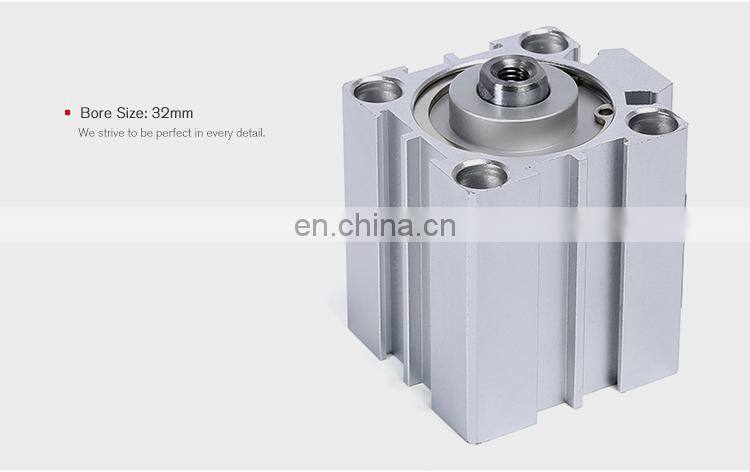

SNS SDA32X25 pneumatic double acting small thin compact air cylinder

Banner

Product Parameters

Bore Size(mm)	12	16	20	25	32	40	50	63	80	100
Acting Mode	Double Acting
Working Media	Cleaned Air
Working Pressure	0.1~0.9Mpa(kg/cm)
Proof Pressure	1.35Mpa(13.5kgf/cm)
Working Temperature	-5~70℃
Buffering Mode	With
Port Size	M5		1/8				1/4		3/8
Body Material	Aluminum Alloy

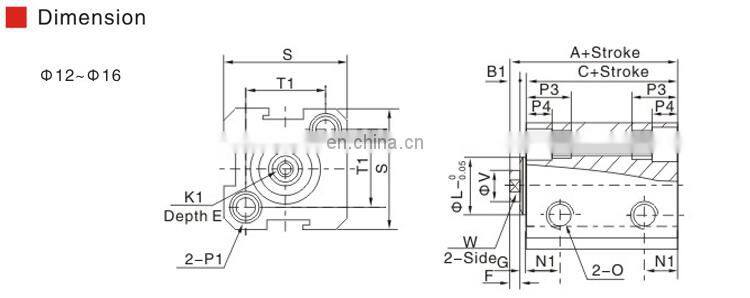

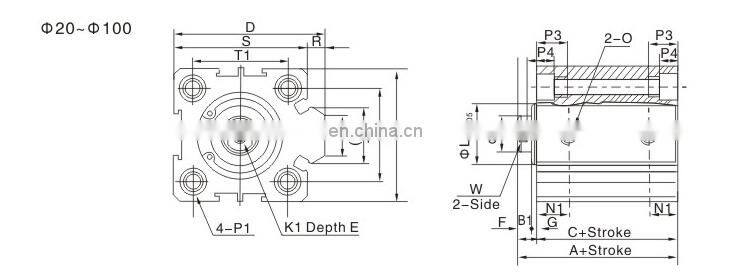

Bore Size(mm)	Standard Type		Magnet Type		D	B1	E	F	G	K1	L	N1	O
Bore Size(mm)	A	C	A	C	D	B1	E	F	G	K1	L	N1	O
12	22	17	32	27	/	5	6	4	1	M3*0.5	10.2	6.3	M5*0.8
16	24	18.5	34	28.5	/	5.5	6	4	1.5	M3*0.5	11	7.3	M5*0.8
20	25	19.5	35	29.5	36	5.5	8	4	1.5	M4*0.7	16	7.5	M5*0.8
25	27	21	37	31	42	6	10	4	2	M5*0.8	17	8	M5*0.8
32	31.5	24.5	41.5	34.5	50	7	12	4	3	M6*1	22	9	G1/8
40	33	26	43	36	58.5	7	12	4	3	M8*1.25	28	10	G1/8
50	37	28	47	38	71.5	9	15	5	4	M10*1.5	38	10.5	G1/4
63	41	32	51	42	84.5	9	15	5	4	M10*1.5	40	11.8	G1/4
80	52	41	62	51	104	11	20	7	4	M14*1.5	45	13.5	G3/8
100	53	51	73	61	124	12	20	7	5	M14*1.5	55	17	G3/8

Bore Size(mm)	P1
12	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
16	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
20	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
25	Double side: 8.2 ThreadM6*1.0 Through hole 4.6
32	Double side: 8.2 ThreadM6*1.0 Through hole 4.6
40	Double side: 10 ThreadM6*1.25 Through hole 6.5
50	Double side: 11 ThreadM6*1.25 Through hole 6.5
63	Double side: 11 ThreadM8*1.25 Through hole 6.5
80	Double side: 14 ThreadM12*1.75 Through hole e:9.2
100	Double side: 17.5 ThreadM14*12 Through hole 11.3

Bore Size(mm)	P3	R	S	T1	V	W	X	Y
12	12	4.5	/	16.2	6	5	/	/
16	12	4.5	/	19.8	6	5	/	/
20	14	4.5	2	24	8	6	11.3	10
25	15	5.5	2	28	10	8	12	10
32	16	5.5	6	34	12	10	18.3	15
40	20	7.5	6.5	40	16	15	21.3	16
50	25	8.5	9.5	48	20	17	30	20
63	25	8.5	9.5	60	20	17	28.7	20
80	25	10.5	10	74	25	22	36	26
100	30	13	10	90	25	22	35	26

Product Description

Certificate

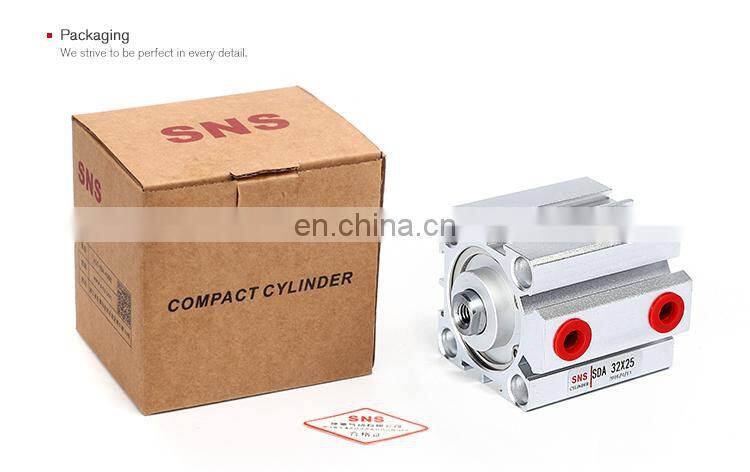

Packaging & Shipping

FAQ

Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.

Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.

Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.

Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.

Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.

Q6. Do you accept OEM business?A6. We do OEM .

Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.

Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
