Best Price OSPB Hydraulic OSPC Power Steering Control Unit Distributor China Factory
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1996
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Power Orbital Steering Control Units for TruckNegotiableMOQ: 1 -
OSPC 100 LS + OLSA 80 Steering Control Unit With Priority ValvesNegotiableMOQ: 1
-
OSPC ON/OR/LS Orbitrol OSPC Hydraulic Steering Control Unit for Hydraulic ForkliftNegotiableMOQ: 1
-
Hydraulic Orbitrol 101-5T 101-5t- 200 Steering Control Units for Forklift Excavator Truck PartsNegotiableMOQ: 1
-
China OSPC160 Hydraulic Control Steering With High PressureNegotiableMOQ: 1
VR
Product Description
Blince

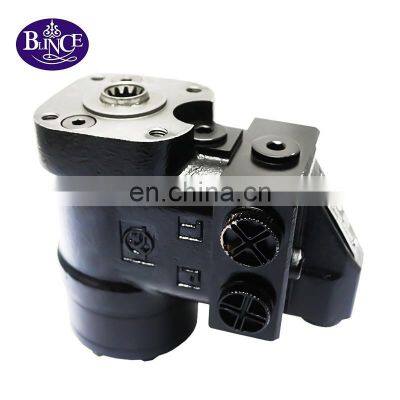

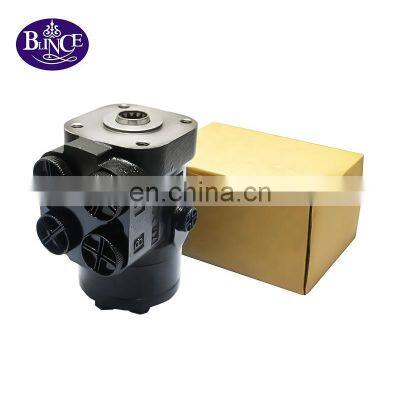

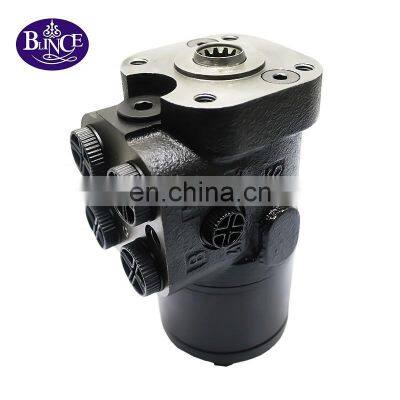

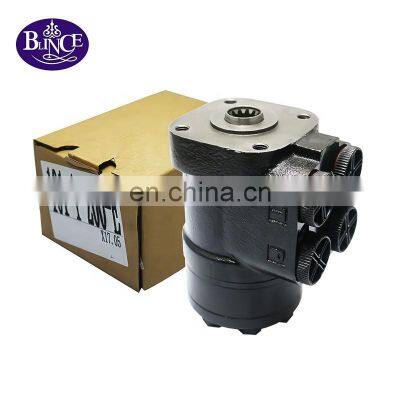

Best Price OSPB Hydraulic OSPC Power Steering Control Unit Distributor China Factory
101-1 101-2 101-3 series hydralic steering control units' the shape andstructure same as Dafoss OSPB and M+S HKU series, BPB1, BPB2, BPB3, BPB5 good performance, widely applied to low speed and heavy load vehicles, construction machinery, harvester and helm control etc.

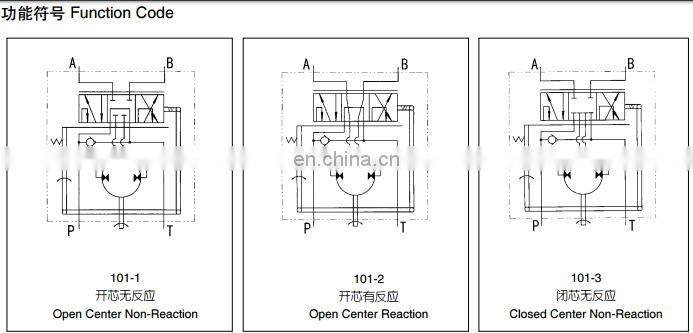

Open center No-reaction/Open center reaction/Load sensing hydraulic steering system (101-1/2/5)
Characteristics:
1) With good pressure compensation to the change of steering load.
2) The flow and pressure of steering unit keep prior,steering function is reliable.
3) The steering circuit and other circuits work independently of each other, thereby increasing the efficiency of the system.
4)With high steering sensitivity, quick response,starting function is good in cold condition
1) With good pressure compensation to the change of steering load.
2) The flow and pressure of steering unit keep prior,steering function is reliable.
3) The steering circuit and other circuits work independently of each other, thereby increasing the efficiency of the system.
4)With high steering sensitivity, quick response,starting function is good in cold condition
150N0039 | 150N0025 | 150N0040 | 150N0026 | 150N0041 | 150N0027 | 150N0042 |
150N0024 | 150N0043 | 150N0028 | 150N0044 | 150N0023 | 150N0052 | 150N0022 |
150N0045 | 150N0030 | 150N0046 | 150N0031 | 150N0047 | 150N0032 | 150N0027 |
Parameters | Type 101-*-***-* | |||||||||||
Function code | Displacement (mL/r) | Rated flow (L/min) | Max.input pressure (Mpa) | nt.back pressure (Mpa) | Weight (kg) | Dimension L (mm) | ||||||
1, 2, 4 | 50 | 5 | 17.5 | 2.5 | 5.70 | 130 | ||||||
63 | 6 | 5.76 | 132 | |||||||||
80 | 8 | 5.84 | 134 | |||||||||
100 | 10 | 5.91 | 137 | |||||||||
125 | 12.5 | 6.05 | 140 | |||||||||
160 | 16 | 6.25 | 145 | |||||||||
200 | 20 | 6.45 | 150 | |||||||||
1, 4 | 250 | 25 | 6.68 | 156 | ||||||||
280 | 28 | 6.86 | 161 | |||||||||
315 | 31.5 | 7.06 | 166 | |||||||||
400 | 40 | 7.45 | 176 | |||||||||
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. For hydraulic equipment, please look for Blince！ | ||||||||||||
Hydraulic hydrostatic steering control units are also known as orbitrol Steering Control Units (SCU), Hydrostatic Directions, Orbitrol Steering, Orbitrol Units.
Hydraulic Steering Control Units (SCU) are widely used in hydraulic rudder of ships, steering of low-speed vehicles, such as tractor, truck, loader, grader, hauler, road roller, forklift, combined harvester, engineering or road construction machinery etc. FT/Truck Wheel Loader
