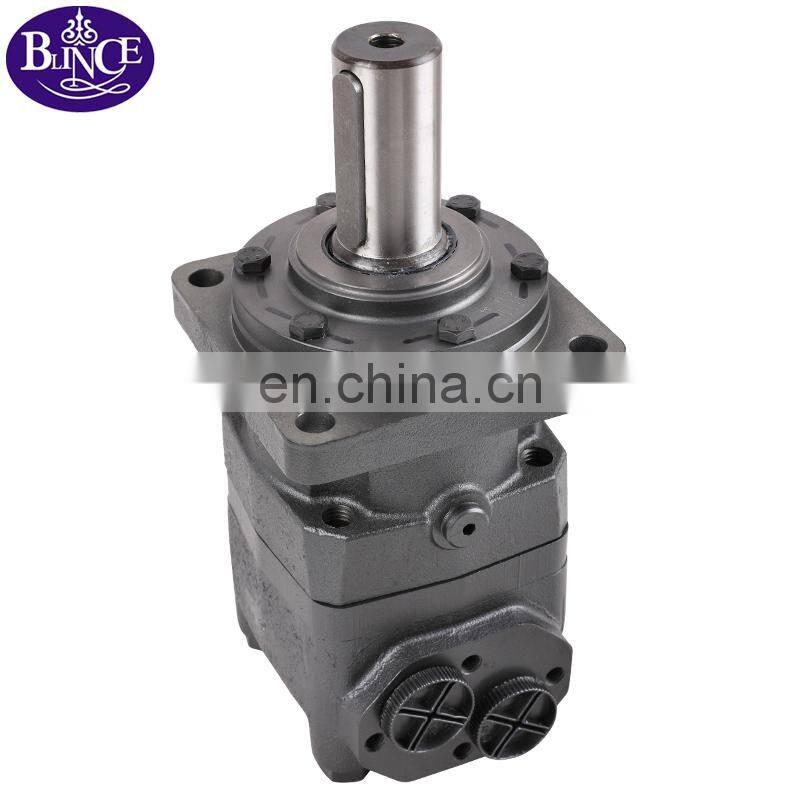

OMT/BMT/MT/MLHT 315cc 400cc 500cc 630cc 800cc Danfoss Parker White Eaton Hydraulic Motor for Loader Drilling Rig photo-1

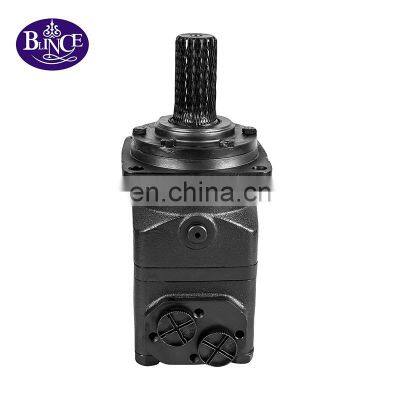

OMT/BMT/MT/MLHT 315cc 400cc 500cc 630cc 800cc Danfoss Parker White Eaton Hydraulic Motor for Loader Drilling Rig photo-2

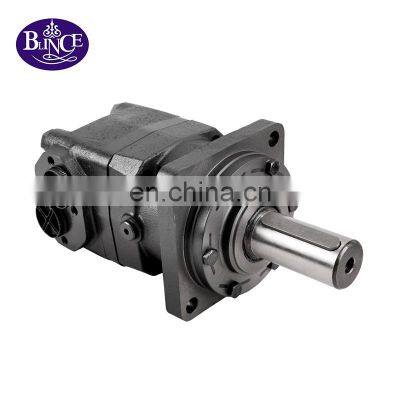

OMT/BMT/MT/MLHT 315cc 400cc 500cc 630cc 800cc Danfoss Parker White Eaton Hydraulic Motor for Loader Drilling Rig photo-3

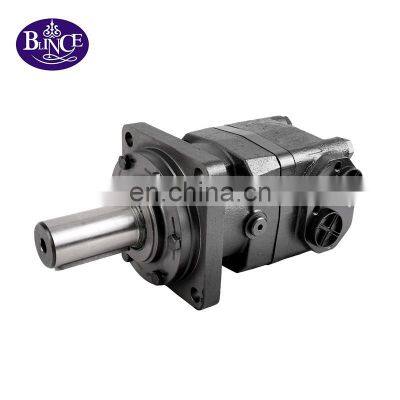

OMT/BMT/MT/MLHT 315cc 400cc 500cc 630cc 800cc Danfoss Parker White Eaton Hydraulic Motor for Loader Drilling Rig photo-4

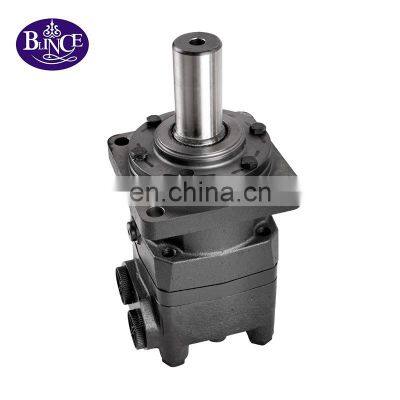

OMT/BMT/MT/MLHT 315cc 400cc 500cc 630cc 800cc Danfoss Parker White Eaton Hydraulic Motor for Loader Drilling Rig photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1996
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

                                Blince

OMT/BMT/MT/MLHT orbital hydraulic motors are internal gear motors with rollers and disc distribution (geroler type). Displacement of the motor determines its rotational speed and torque for a given oil flow and hydraulic pressure. Distribution valve is synchronously driven and precise filling chambers.

Rotational speed range: up tp 615 rpm; maximum continuous pressure: up to 200 bar.

Advantages:
Low start-up pressure;
Shaft seal can bear high back pressure;
The motor can be used in parallel or series configurations;
Disc distribution system with automatic compensation for high efficiency;
Tapered roller bearings permit high axial and radial loads

Product application:
Blince hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction
machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches,
Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.
OMT/OMTS/OMTE/OMTJ/OMTZ series:
Type
160/200
230/250
315
400
500
630
800
Geometric displacement（cm²/rev.）
161.1/201.4
232.5/251.8
326.3
410.9
523.6
629.1
801.8
Max.speed（rpm）
cont.
625
536/500
380
305
240
196
154
int.
780/750
643/600
460
365
285
233
185
Max.torque
(N*m)
cont.
470/590
670/730
950
1080
1220
1318
1464
int.
560/710
821/880
1140
1260
1370
1498
1520
Max.output (kw)
cont.
27.7/34.9
34.7/34.5
34.9
31.2
28.8
25.3
22.2

int.
32/40
40
40
35
35
27.5
26.8
ure drop (MPa)
cont.
20
20
20
18
16
14
12.5

int.
24
24
24
21
18
16
13
Max.flow
(L/min)
cont.
100/125
125
125
125
125
125
125
int.
125/150
150
150
150
150
150
150
Max.inlet pressure (MPa)
cont.
21
21
21
21
21
21
21
int.
25
25
25
25
25
25
25
Weight(kg)
19.5/20
20.4/20.5
21
22
23
24
25
*Rated speed and rated torque: output value of speed and torque under rated flow and rated pressure;
*Continuous pressure: Max.value of operating motor continuously;
*Intermittent pressure: Max.value of operating motor in 6 seconds per minute;
*Peak pressure: Max.value of operating motor in 0.6 second per minute.
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs.
For hydraulic equipment, please look for Blince！
BLINCE hydraulic motor

BLINCE HYDRAULIC MOTOR

Distribution Type
Model
Displacement (lm/r)(cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range
(rpm)
Max.output power (KW)



 Axial Distribution
BMP/OMP
36-500
225/22.5
30-1650
13
BMR/OMR
36-375
200/20
30-1220
17
BMH/OMH
200-500
225/22.5
30-430
18.5
BMM/OMM
8-50
200/20
30-1950
3.2
BMJ
65-375
200/20
30-842
17.9
Distribution Type
Model
Displacement (lm/r) (cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range(rpm)
Max.output power (KW)
Cont.
Max.output power (KW)
Int.


Disc Distribution
BMSY
80-475
225/22.5
30-800
20
25
BMER
125-750
276/27.6
30-470
18
21
BMT
160-800
240/24
30-705
35
40
BMV
315-1000
280/28
10-446
43
52

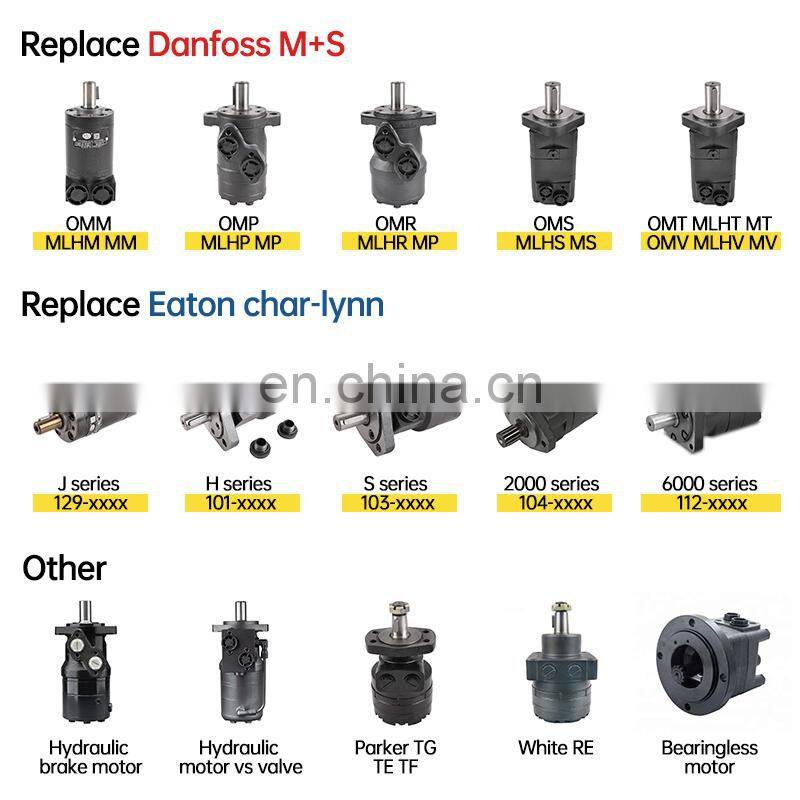

Blince hydraulic motor Can perfectly replace:
Danfoss :OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV/ DH/ DS series hydraulic motor.
Eaton : J (129-) series, H(101-) series,S(103-) series,T(158-)series,2000(104-) series,6000 series orbit motor
M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.
White : MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parkers : TE/ TG/ TF series hydraulic motor.
Sam Brevini : BGM/ BG/ BR/ HPR/ HT hydraulic motor
Bosch Recroth : MGX/ MGP, GXP/ MGR, GMR/ MGS, GMS / MGT,GMT/ MGV, GMV series hydraulic motor.
