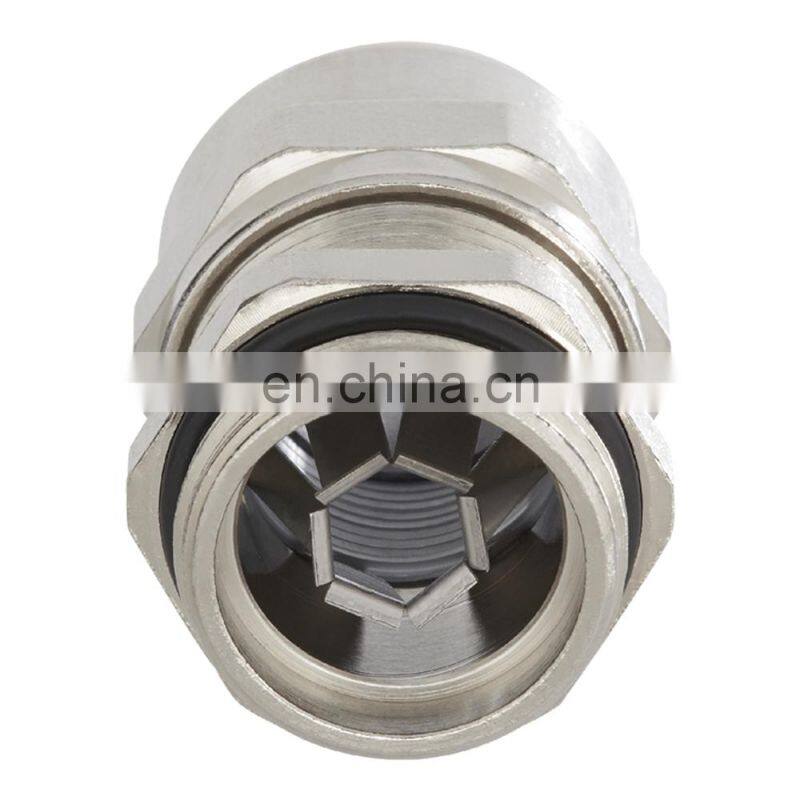

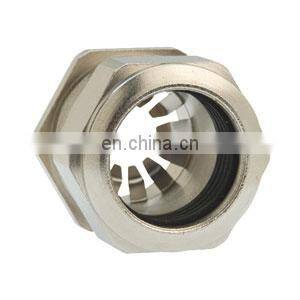

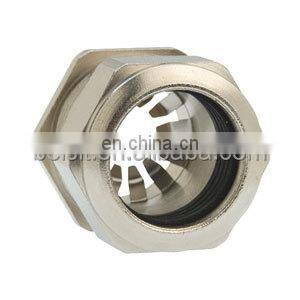

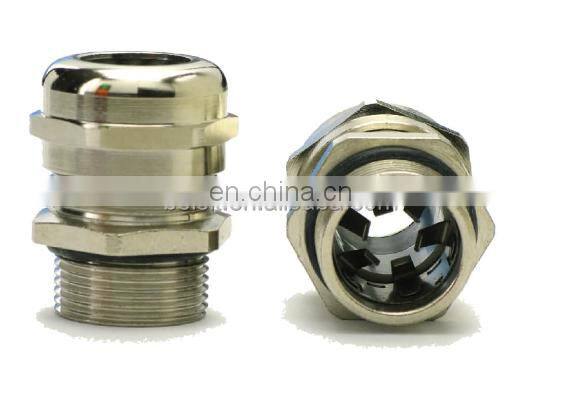

Pictures of ev Car EMC Cable Gland IP68 EMC Elastic Clasping Cable Gland For EV Car Motor And Power
Washer and Lock Nut are included in each cable gland for saving additional ordering work and storage locations.
For ev Car EMC Cable Gland catalogue of full specification PG, G, M, NPT, EMC, EMG pls inquiry of freely.
Other EMC Cable Gland:
Exploded View of cable gland connection
Material: 1. Nylon PA6 (Flammability UL 94-2) for A,C,E parts
2. EPDM rubber for B parts, NBR rubber for D parts
Data Sheet of cable gland connection
| M | ||||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. | Beisit No. |
| mm | mm | mm | mm | grey | black | |
| M 12 x 1,5 | 3-6,5 | 21 | 8 | 15 | M 1207 | M 1207B |
| M 12 x 1,5 | 2-5 | 21 | 8 | 15 | M 1205 | M 1205B |
| M 16 x 1,5 | 4-8 | 22 | 8 | 19 | M 1608 | M 1608B |
| M 16 x 1,5 | 2-6 | 22 | 8 | 19 | M 1606 | M 1606B |
| M 16 x 1,5 | 5-10 | 25 | 8 | 22 | M 1610 | M 1610B |
| M 20 x 1,5 | 6-12 | 27 | 9 | 24 | M 2012 | M 2012B |
| M 20 x 1,5 | 5-9 | 27 | 9 | 24 | M 2009 | M 2009B |
| M 20 x 1,5 | 10-14 | 28 | 9 | 27 | M 2014 | M 2014B |
| M 25 x 1,5 | 13-18 | 31 | 11 | 33 | M 2518 | M 2518B |
| M 25 x 1,5 | 9-16 | 31 | 11 | 33 | M 2516 | M 2516B |
| M 32 x 1,5 | 18-25 | 39 | 11 | 42 | M 3225 | M 3225B |
| M 32 x 1,5 | 13-20 | 39 | 11 | 42 | M 3220 | M 3220B |
| M 40 x 1,5 | 22-32 | 48 | 13 | 53 | M 4032 | M 4032B |
| M 40 x 1,5 | 20-26 | 48 | 13 | 53 | M 4026 | M 4026B |
| M 50 x 1,5 | 32-38 | 49 | 13 | 60 | M 5038 | M 5038B |
| M 50 x 1,5 | 25-31 | 49 | 13 | 60 | M 5031 | M 5031B |
| M 63 x 1,5 | 37-44 | 49 | 14 | 65/68 | M 6344 | M 6344B |
| M 63 x 1,5 | 29-35 | 49 | 14 | 65/68 | M 6335 | M 6335B |
Usage of cable gland connection
Certificate of cable gland connection
The only factory have VDE for cable gland in Asia
The only factory have UL for full series cable gland
Package of cable gland connection
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery of cable gland connection
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Services
A. Strong sales team ensures replying you in 24 hours in time.
B. Strong technical team provides technical support for you in all directions in product development anytime.
C. Art designer and graphic design team can design different and fine packing styles for customers
in different market requirements.
Mold and Mold Processing Center
5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC.
6-sigma Quality Management System guaranteed.
Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
Can customized any colors cable gland
Research and Development team can produce any Item & Precise Die Mold
according samples or design drawings
Injection Machine
Why choose us?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts (TAiWAN and GERMANY)
