Nylon Strain Relief cable gland PG13.5 cable bend protection Size
- 1000 per Month
- T/T Credit Card
- High Quality Factory Direct Sales M-Length Nylon Cable Glands wtih Strain Relief
- Strain Relief Waterproof Cable Gland with PG Thread
- M Strain Relief Cable Gland IP68 Plastic Nylon High Quality Waterproof EPDM or NBR 94 V-0 / V-2 E360400 M12-M25 BEISIT CN;ZHE
- BEISIT High Quality PG Type Cord Grip With Strain Relief Cable Gland
- M Thread Waterproof High Quality IP68 IP69K High Proof Nylon Cable Gland
- Beisit Cw Manufacturer Emc Fireproof Pvc Wire Metric Electrical Strain Relief Nylon Cable Glands M40
Product Description

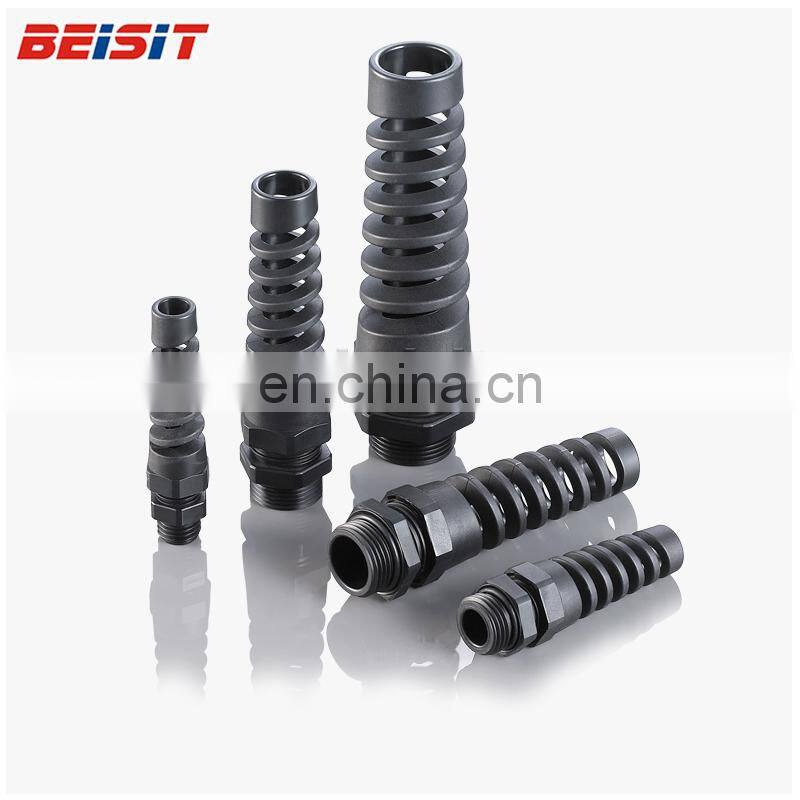

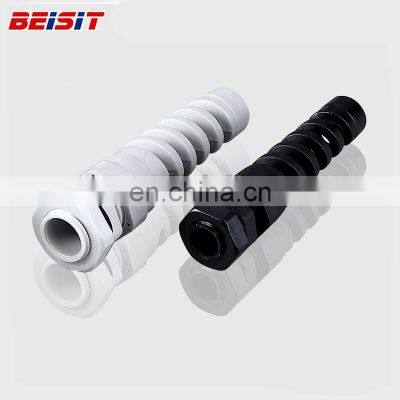

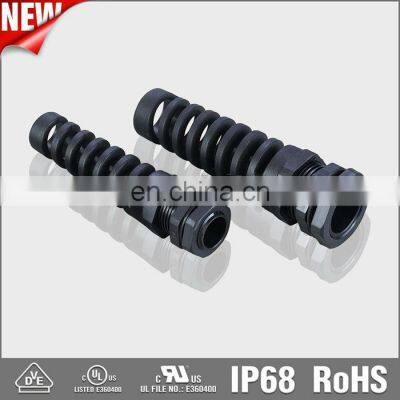

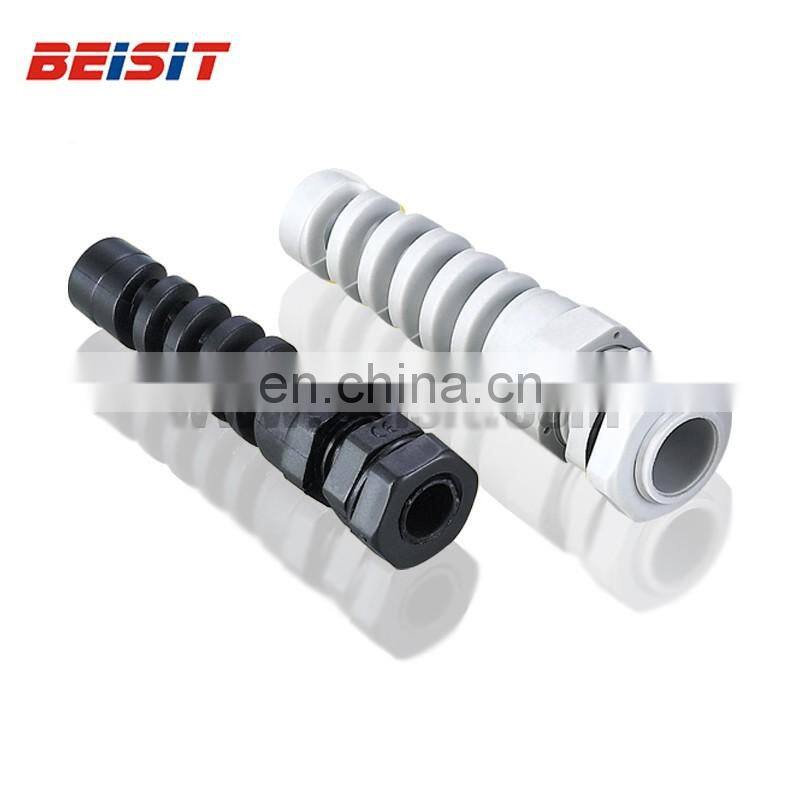

Nylon Strain Relief cable gland PG13.5 cable bend protection Size
PG/PG-Length Nylon Cable Gland with Strain ReliefMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: NBR O-Ring: EPDM Working Temperature: -40℃ to 100℃
Other material upon request. All O ring are pre-assembled as standard. |
Size Chart of PG Nylon Cable Gland with Strain Relief
Model | Cable Range | H | GL | d | Spanner Size | Beisit No. | Beisit No. |
mm | mm | mm | mm | mm | grey | black | |
PG7 | 3-6.5 | 54 | 8 | 7 | 16.5/15 | P0707SR | P0707SRB |
PG7 | 2-5 | 54 | 8 | 7 | 16.5/15 | P0705SR | P0705SRB |
PG9 | 4-8 | 63 | 8 | 8.5 | 19 | P0708SR | P0908SRB |
PG9 | 2-6 | 63 | 8 | 8.5 | 19 | P0906SR | P0906SRB |
PG11 | 5-10 | 78 | 8 | 10.5 | 22 | P1110SR | P1110SRB |
PG11 | 3-7 | 78 | 8 | 10.5 | 22 | P1107SR | P1107SRB |
PG13.5 | 6-12 | 90 | 9 | 13 | 24 | P13512SR | P13512SRB |
PG13.5 | 5-9 | 90 | 9 | 13 | 24 | P13509SR | P13509SRB |
PG16 | 10-14 | 100 | 10 | 15.5 | 27 | P1614SR | P1614SRB |
PG16 | 7-12 | 100 | 10 | 15.5 | 27 | P1612SR | P1612SRB |
PG21 | 13-18 | 114 | 11 | 20 | 33 | P2118SR | P2118SRB |
PG21 | 9-16 | 114 | 11 | 20 | 33 | P2116SR | P2116SRB |
Size Chart of PG-Length Nylon Cable Gland with Strain Relief
Model | Cable Range | H | GL | d | Spanner Size | Beisit No. | Beisit No. |
mm | mm | mm | mm | mm | grey | black | |
PG7 | 3-6.5 | 54 | 15 | 7 | 16.5/15 | P0707SRL | P0707SRBL |
PG7 | 2-5 | 54 | 15 | 7 | 16.5/15 | P0705SRL | P0705SRBL |
PG9 | 4-8 | 63 | 15 | 8.5 | 19 | P0708SRL | P0908SRBL |
PG9 | 2-6 | 63 | 15 | 8.5 | 19 | P0906SRL | P0906SRBL |
PG11 | 5-10 | 78 | 15 | 10.5 | 22 | P1110SRL | P1110SRBL |
PG11 | 3-7 | 78 | 15 | 10.5 | 22 | P1107SRL | P1107SRBL |
PG13.5 | 6-12 | 90 | 15 | 13 | 24 | P13512SRL | P13512SRBL |
PG13.5 | 5-9 | 90 | 15 | 13 | 24 | P13509SRL | P13509SRBL |
PG16 | 10-14 | 100 | 15 | 15.5 | 27 | P1614SRL | P1614SRBL |
PG16 | 7-12 | 100 | 15 | 15.5 | 27 | P1612SRL | P1612SRBL |
PG21 | 13-18 | 114 | 15 | 20 | 33 | P2118SRL | P2118SRBL |
PG21 | 9-16 | 114 | 15 | 20 | 33 | P2116SRL | P2116SRBL |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
6.Why Choose US.
1. Compamy is Managed Strictly According to IATF16949/ISO9001.
2. Our strong technical team are established by high-end technical person that have reached 36%.
3. Strong Ability of Special Customization with a complete mold processing center.
4. Precision processing equipment are sourced from Japan, Korea and Taiwan to ensure that the products meet high precision requirement.
5. Capacity of Design and Manufacture of Precision Cutting Tools.
6. Advanced Testing Equipments. Products Tests fellow German Standard of DIN, VDE, American Standard of UL and comply with European Lastest Standard of EN and ATEX
1.Trade Items Of Products
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
2.Packaging Of Products
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
