Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Free Fit Hydraulic Tester Hose Pressure Gauge Kit With 8 Couplings Excavator Parts Hydraulic Pressure Test Kit
Free Fit Hydraulic Tester Hose Pressure Gauge Kit With 8 Couplings Excavator Parts Hydraulic Pressure Test Kit
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale TU-114 Fuel Pressure Gauge Fuel Injection Pump Tester Auto Diagnostics Car Pressure Test Tool KitNegotiableMOQ: 1 -
Factory Direct Supply 1/4 G Thread * M16*2 63 Mpa Pressure Hydraulic Test Point Adapter for Hydraulic SystemNegotiableMOQ: 1
-
High Quality Factory Direct Supply Carbon Steel 1/4 G Thread * M16*2 Hydraulic Test Point for Hydraulic SystemNegotiableMOQ: 1
-
Hot Sale Pressure Measure M 16*2 G 1/4 Thread Pressure Test Coupling Connector for Hydraulic SystemNegotiableMOQ: 1
-
Hot Sale Poppet Type Female and Male 1/2 Inch Carbon Steel Hydraulic Quick Release Coupling for TractorNegotiableMOQ: 1
Product Description

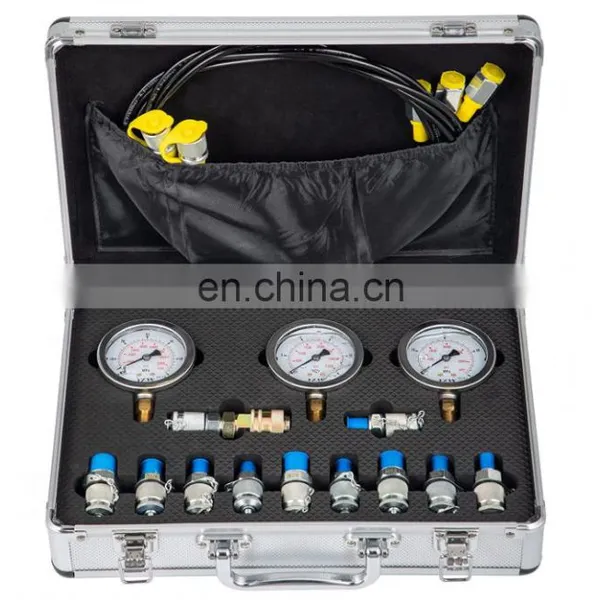

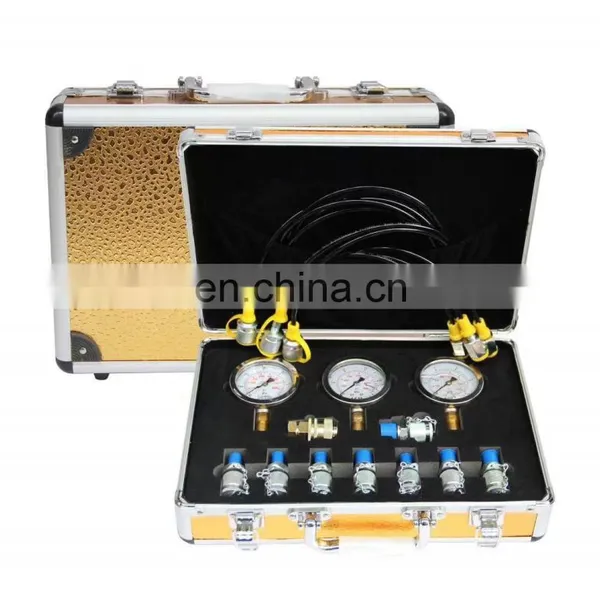

This is an accurate hydraulic pressure testing set, include: 3 pressure gauge, 8 Test couplings, 1 Quick release coupling and 3 test hose. It can provide reliable pressure measuring results, very easy to connect and use. Stainless steel couplings, anti-rust, leakage-proof and better than those aluminum products on market.
Specification
3 × Pressure gauge |
||||||
Ø63mm-25MPa (25MPA / 250Kg /square centimetre) *1 |
||||||
Ø63mm-40MPa (40MPA / 400Kg /square centimetre) *1 |
||||||
Ø63mm-60MPa (60MPA / 600Kg /square centimetre)*1 |
||||||
8 × Test Couplings |
||||||
Test Couplings |
G1 / 8 * 1 |
|||||
Test Couplings |
G1 // 4 * 1 |
|||||
Test Couplings |
G3 / 8 * 1 |
|||||
Test Couplings |
M10 // 1 * 1 |
|||||
Test Couplings |
M10 // 1.25 * 1 |
|||||
Test Couplings |
M14 // 1.5 * 1 |
|||||
Test Couplings |
UNF7 / 16-20 * 1 |
|||||
Test Couplings |
UNF9 / 16-18 * 1 |
|||||
1 × Quick Release Coupling |
||||||

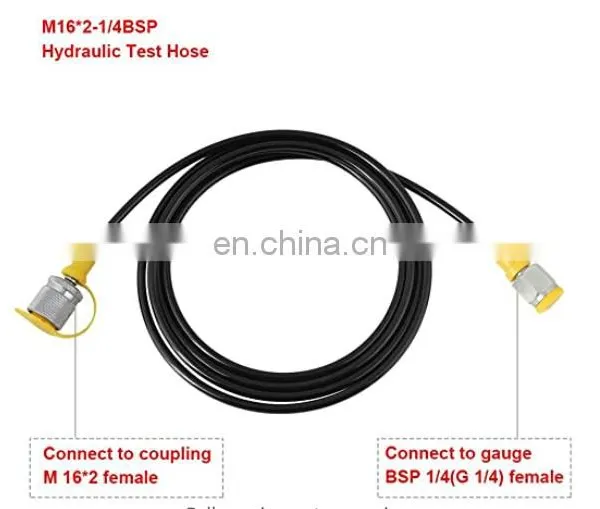

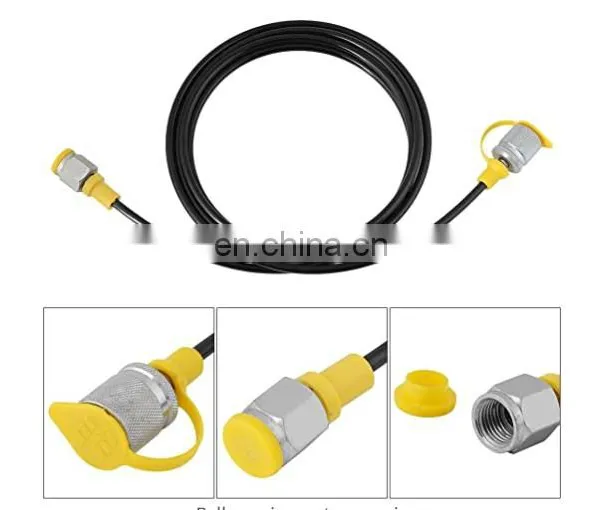

Test hose length |
1.5M * 3 |
|||||
Aluminum storage box * 1 |
||||||
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
