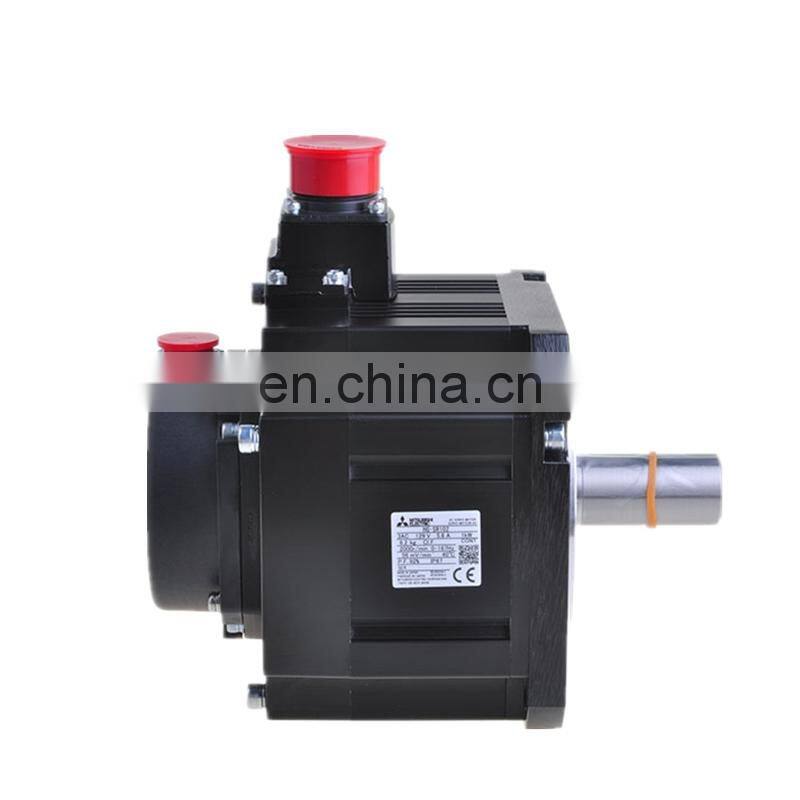

HG-SR102 Japan Motors / Mitsubishi Servomotors / 1kw Servo Motor

Guangzhou Hongsen Servo Motor Co., Ltd.
HG-SR102 Japan Motors / Mitsubishi Servomotors / 1kw Servo Motor thumbnail-1
HG-SR102 Japan Motors / Mitsubishi Servomotors / 1kw Servo Motor photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Overview

MR-J4 Servo motor

With a capacity range of 50W to 7kW (200V only), both the amplifier and motor size is reduced. We added a high resolution encoder of 4 million pulse/rev, with a speed frequency response of 2500Hz. Additional fetures include advanced one-touch auto tuning and advanced vibration suppression control II functions. The MR-J4 motors ahve the same flance size as J3 notors with the lenght of the motor bing the same or smaller than the J3.The same cables for power, encoder and brake can be used for the MR-J3 and MR-J4. MR-J4 Series has four models: MR-J4A (analog/pulse train),MR-J4B, (SSCNET III/H), MR-J4W2B (Dual axis amplifier with SSCNET III/H) and ME-J4W3B (Three axis in one amplifier with SSCNET III/H). In addition, MR-J4 has three motor models available: HG-KR similar to HF-KP, HG-MR similar to HF-MP, and HG-SR similar to HF-SP Series. M-Size software is used to size HG Series motors and setup is made easy using MR-Configurator.
PRODUCT SPECIFICATIONS
Servo Motor Model
HG-SR102
Power Supply Capacity (kVA)
1.7

Continuous Running Duty
Rated Output (W)
1 KW
Rated Torque (N•m)
4.8
Maximum Torque (N•m)
14.3
Rated Speed (r/min)
2000
Maximum Speed (r/min)
3000
Permissible Instantaneous Speed (r/min)
3450
Power Rate Continuous Rated Torque
Standard (kW/s)
19.7
With Electromagnetic Brake (kW/s)
16.5
Rated Current (A)
5.6
Maximum Current (A)
17.4
Regenerative Braking Frequency
MR-J4- (times/min)
38
MR-J4W_- (times/min)
96
Moment of inertia J (x10 -4 kg•m²)
Standard
11.6
With Electromagnetic Brake
13.8
Recommended Load/Motor Inertia Ratio (Note 1)
17 times or less
Speed/Position Detector
Absolute/incremental 22-bit encoder (resolution: 4194304 pulses/rev)
Oil Seal
None (Servo Motors with oil seal are available. (HG-KR_J))
Insulation Class
130 (B)
Structure
Totally enclosed, natural cooling (IP rating: IP65) (Note 2)




Environment
Ambient Temperature
0°C to 40°C (non-freezing), storage: -15°C to 70°C (non-freezing)
Ambient Humidity
80% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)
Atmosphere
Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Elevation / Vibration
1000 m or less above sea level; X: 49 m/s² Y: 49 m/s²
Vibration Rank
V10

Permissible Load for the Shaft
L (mm)
55
Radial (N)
980
Thrust (N)
490
Packing & Delivery

Packing Details  : 1pcs/carton

Delivery Details : 1-2 days after order confrimed
