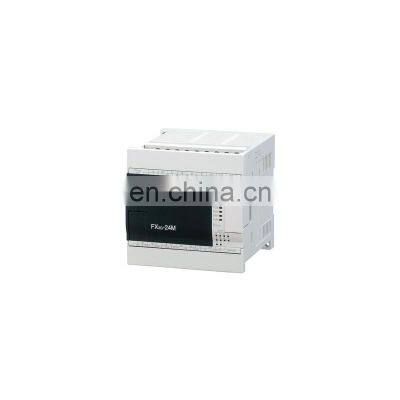

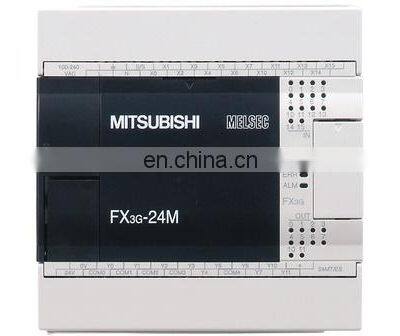

original Mitsubishi plc 21W Industrial control products FX3G-24MR/DS

Name: original Mitsubishi plc 21W Industrial control products FX3G-24MR/DS
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Mitsubishi Electric
Melsec iQ-F Series
iQ Platform-compatible PLC FX3G

The FX 3G is an introductory compact PLC and is the newest addition to the FX3 series, designed for simple yet performance-critical applications. Incorporating innovative FX3 series technology the customer is presented with a suite of benefits.

Advanced Built-in Functions

□3rd generation compact PLC □Highly flexible □Dual system-bus architecture □ Control of up to 128 directly connected I/O, or up to 256 I/O with CC-Link remote I/O.

Product Details

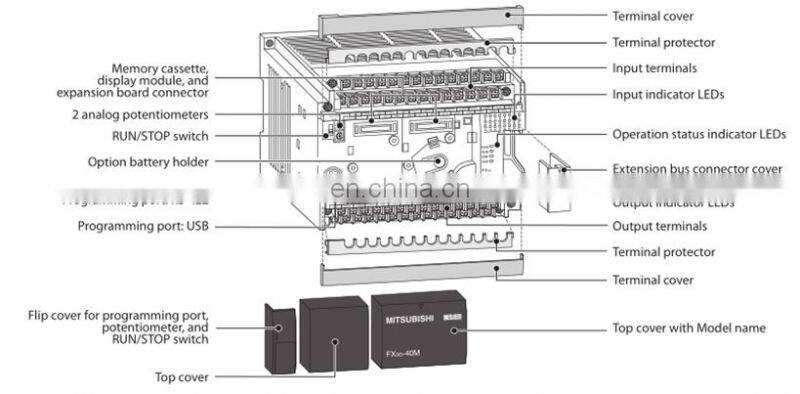

All in one CPU, power supply and I/O. Includes many upgraded features from the FX 1N . Especially usage of the FX3 series ADP bus system and expansion boards (BD).

Instruction Times Basic Instructions: 0.21 μs / instruction (Contact Instruction) Applied Instructions: 0.42 μs / instruction (MOV Instruction)

Large Memory 32,000 steps of built-in program memory. EEPROM memory cassette with loader function is available. Applicable Standards All products support EN and UL/cUL standards. Various shipping approvals are supported as well.

User-friendly programming software GX Works3

Specification

Model :	FX3G-24MR/DS	FX5U-32MR/ES
Name:	PLC		CPU module
Function:	CPU module		32 points
Integrated inputs/outputs	24 points.
Power supply	24 V DC
Integrated inputs	14 points
Integrated outputs	10 points
Output type	Relay
Power consumption	21W
Weight	0.55kg
Dimensions (W x H x D)	90 x 90 x 86mm

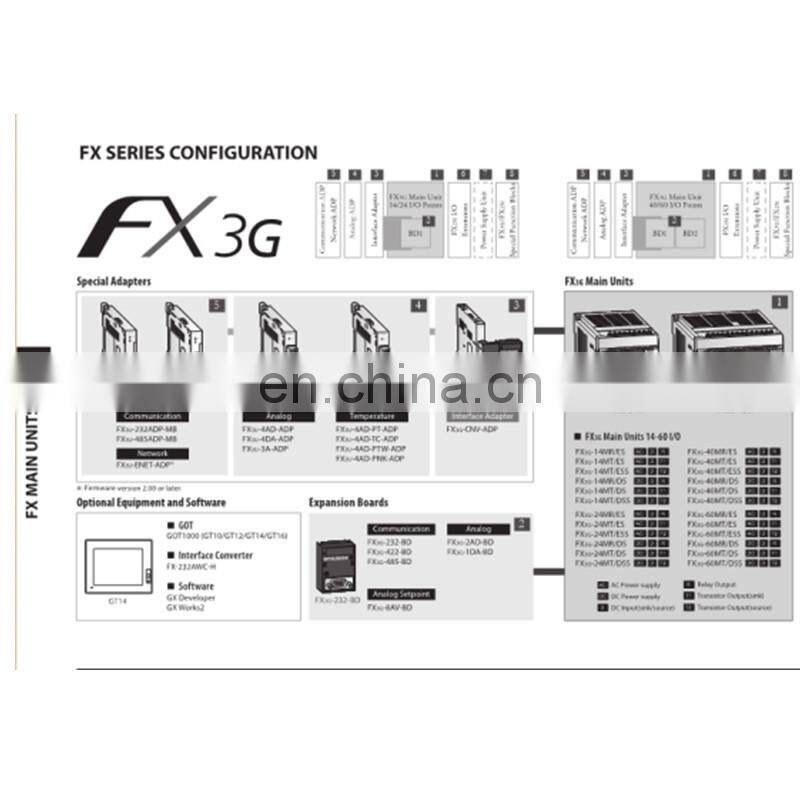

Selecting the FX3G Model

Model options

FX3G CPU Modules	FX3G-60MR/ES-A	FX3G-40MR/ES-A	FX3G-24MR/ES-A
		FX3G-14MR/ES-A	FX3G-60MR/DS	FX3G-40MR/DS
		FX3G-24MR/DS	FX3G-14MR/DS	FX3G-60MT/ES-A
		FX3G-40MT/ES-A	FX3G-24MT/ES-A	FX3G-14MT/ES-A
		FX3G-60MT/DS	FX3G-40MT/DS	FX3G-24MT/DS
		FX3G-14MT/DS	FX3G-60MT/ESS	FX3G-40MT/ESS
		FX3G-24MT/ESS	FX3G-14MT/ESS	FX3G-60MT/DSS
		FX3G-40MT/DSS	FX3G-24MT/DSS	FX3G-14MT/DSS
Optional Equipment and Software	GOT	GOT1000 (GT10/GT12/GT14/GT16)
		Interface Converter	FX-232AWC-H
		Software	GX Developer	GX Works2
FX 3G Main Units 14-60 I/O	FX 3G -60MR/DS
Expansion Boards	Communication	FX 3G -232-BD	FX 3G -422-BD
	Communication		FX 3G -485-BD
		Analog	FX 3G -2AD-BD	FX 3G -1DA-BD
		Analog Setpoint	FX 3G -8AV-BD
Special Adapters	Communication	FX 3U -232ADP-MB	FX 3U -485ADP-MB
		Interface Adapter	FX 3G -CNV-ADP
		Network	FX 3U -ENET-ADP*
		Temperature control	FX 3U -4AD-PT-ADP / FX 3U -4AD-TC-ADP / FX 3U -4AD-PTW-ADP / FX 3U -4AD-PNK-ADP
		Analog	FX 3U -4AD-ADP / FX 3U -4DA-ADP / FX 3U -3A-ADP

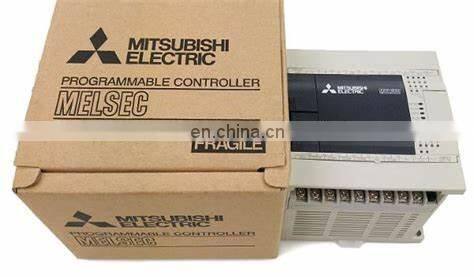

Packing & Delivery

Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
