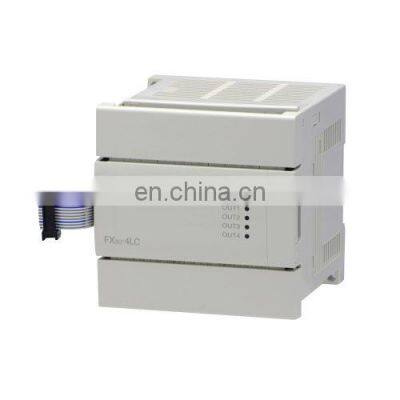

plc Mitsubishi FX3U-4LC channel temperature module elevator
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Brand new Mitsubishi transistor output/input plc module For automobile
-
plc Mitsubishi FX2N-8AD Analog Input Blocks for industrial automation
-
Brand new Mitsubishi Transistor output input plc module FX3UC-16MTDSS
-
New and original Mitsubishi Transistor input/output plc FX3UC-32MT/DSS
-
New and Original plc controller Mitsubishi plc In stock FX series FX3UC-64MT/DSS
-
FR-A840-03610-2-60 Mitsubishi 132KW vfd drive
Product Description
Product Description
Mitsubishi ElectricMelsec iQ-F Series
iQ Platform-compatible PLC Temperature Control Blocks
These temperature control blocks are used when the internal PID functions are not precise or fast enough. The 4 inputs on the FX 3U -4LC support Thermocouple elements, PT elements and mini voltage inputs. The two inputs on the FX 2N -2LC support Thermocouple elements and PT100 elements. Each channel of the FX 3U -4LC controls two outputs for heating and cooling. The FX 2N -2LC is equipped with 1 output per channel for heating control. The FX 3U -4LC supports cascade control as well.
Note: When attaching the FX 3U -4LC or FX 2N -2LC analog blocks to an FX 3GC or FX 3UC main unit, the FX 2NC -
CNV-IF interface converter or the FX 3UC -1PS-5V power supply unit is required. The FX 3U -4LC is only available
for FX 3G , FX 3GE , FX 3GC , FX 3U , and FX 3UC main units.product Instructions
Specifications | FX3U-4LC | ||
Power supply | 5 V DC / 160 mA (from main unit); 24 V DC / 50 mA | ||
Analog inputs | 4 points (Thermocouple, PT and mini Voltage) | — | |
Compensated temperature range | Examples: • Type K: -100 to +1300(°C) / -100 to +2400(°F) • Type J: -100.0 to +800.0(°C) / -100 to +2100(°F) • Voltage input: 0 to 10mVDC, 0 to 100mVDC | ||
Outputs | 4 transistor outputs embedded, 4 external points | 0.63 mV (14 bit +sign) | |
Resolution | Temperature input : 0.1°C / 0.1°F or 1°C / 1°F Voltage input: 0.5 μV | ||
Overall accuracy for fullscale | ±0.3% – ±0.7%(±1 digit)* | ||
Related I/O points | 8 | ||
Weight | 0.4 | ||
Dimensions (W x H x D) | 90 x 90 x 87 | ||
Packing & Delivery
Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
Delivery Details : 1-2 days after order confrimed
