Product Description

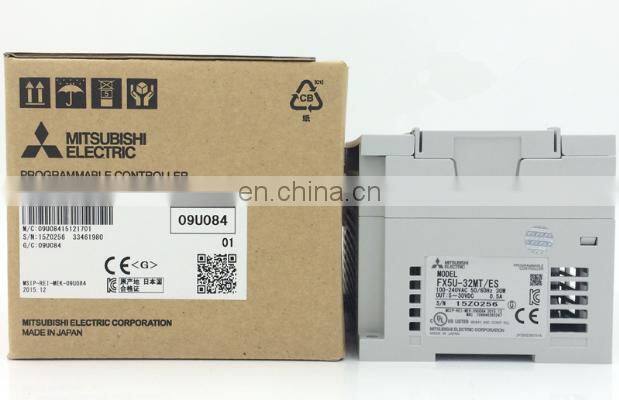

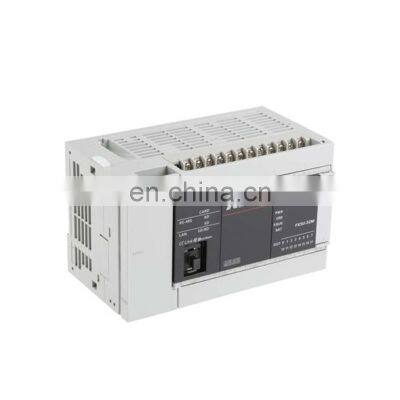

FX5U-32MT/ES
Mitsubishi ElectricMelsec iQ-F Series
iQ Platform-compatible PLC FX5U
Designed on the concepts of outstanding performance, superior drive control an user centric programming, Mitsubishi's MELSEC-F Series has been reborn as the MELSEC iQ-F Series.
From stand alone use to networked system applications, MELSEC iQ-F Series brings your business to the next level of industry.
Advanced Built-in Functions
CPU Performance
Built-in Analog Input/Output (with alarm output)
Built-in SD Card Slot
RUN/STOP/RESET Switch
Built-in RS-485 Port (with MODBUS function)
Security
High-speed System Bus Communication
Built-in Ethernet Port
Battery-less and Maintenance-free
Advanced positioning function
Built-in Positioning (200 Kpps, 4-Axis built-in)
Simple Motion Module (4-Axis control module)
Advanced Motion Control
User-friendly programming software GX Works3
Specification
Model : | FX5U-32MT/ES | FX5U-32MR/ES | |
Type: | CPU module | CPU module | |
Integrated inputs/outputs: | 32 points (Input 16 points, output 16 points) | 32 points | |
Power supply capacity | 5 V DC | 900 mA | |
24 V DC | 400 mA | ||
I/O type | DC input (sink/source)/transistor (sink) | ||
Selecting the FX5UC Model
Type | Details | Connection details, model selection |
CPU module | PLC with built-in CPU, power supply,input/output and program memory. | Various expansion devices can be connected. |
I/O module | Product for expanding I/O. Some products are powered. | Input/output can be expanded to up to 256 points. (Expansion module: Max. 16 modules (excluding extension power supply module)).The total with CC-Link remote input/output is max. 512 points. |
FX5 extension power supply module | Module for expanding power supply if CPU module’s internal power supply is insufficient. Extension cable is enclosed. | Power can be supplied to I/O module, intelligent function module, and bus conversion module. Up to 2 modules can be connected. |
I/O module | Product for expanding I/O. Some products are powered. | Input/output can be expanded to up to 256 points. (Expansion module: Max. 16 modules (excluding extension power supply module)).The total with CC-Link remote input/output is max. 512 points. |
FX5 intelligent function module | Module with functions other than input/output. | Up to 16 expansion modules including the I/O module can be connected (excluding the extension power supply module). |
Bus conversion module | Conversion module for connecting FX3 Series expansion module. | FX3 Series expansion module can be connected only to the right side of the bus conversion module |
FX5 expansion board | Board connected to front of CPU module to expand functions. | Up to 1 module can be connected to the front of the CPU module. (Expansion adapter can also be used.) |
FX5 expansion adapter | Adapter connected to left side of CPU module to expand functions. | Up to 6 modules can be connected to the left side of the CPU module |
FX3 extension power supply module | Module for expanding power supply if CPU module’s internal power supply is insufficient. | The bus conversion module is required for use. Up to 2 modules can be connected. |
FX3 intelligent function module | Module with functions other than input/output. | The bus conversion module is required for use. When using the FX3 extension power supply module, up to 8 modules 4 can be used.When not using the FX3 extension power supply unit, up to 6 modules 4 can be used. |
Packing & Delivery
Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
Delivery Details : 1-2 days after order confrimed
