Product Description
Delta VFD022EL43A PLC Programmable 3Hp 460V Three Phase Input AC Micro Drive Inverter
Product Features:
- Output Frequency of 0.1 to 600 Hz
- Built In PID Feedback Control
- RS-485 with MODBUS Communication
- Additional Communication Options Available
- Micro Drive
- V/Hz
- 0.25 to 5 HP
- 120 to 480 Volt Models 1 & 3 Phase
- IP20
Product Specification:

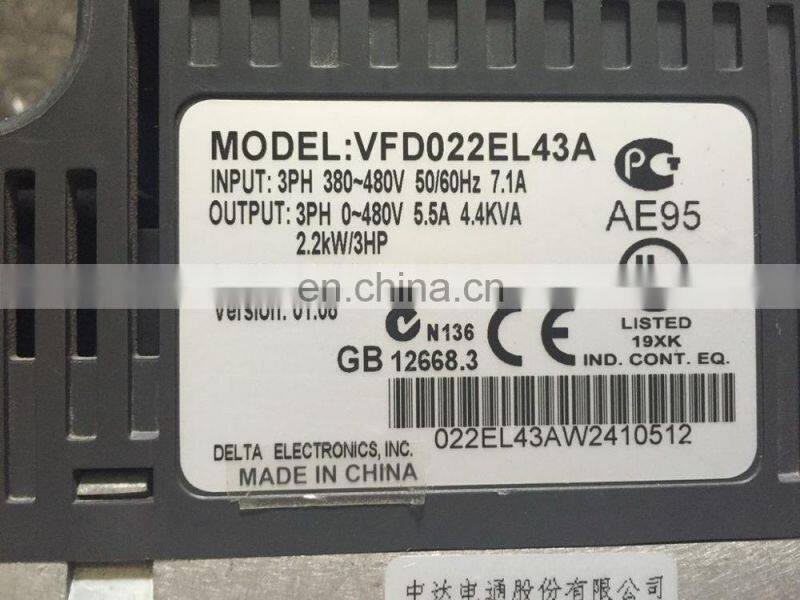

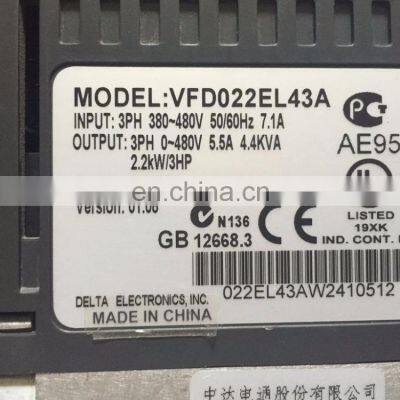

Item Number: | VFD022EL43A |
Brand: | Delta Products |
Item Category: | Drives |
Subcategory: | AC |
Series: | VFD-EL |
Nominal Input VAC: | 480 Volts AC |
Input Range VAC: | 380 to 480 Volts AC |
Input Phase: | 3 |
Application: | Industrial |
HP (CT): | 3 Horsepower |
Amps (CT): | 5.5 Amps |
Max. Frequency: | 600 Hertz |
Braking Type: | DC Injection;Dynamic Braking Transistor Included |
AC Line Regenerative: | No |
Closed Loop: | No |
Motor Control-Max Level: | V/Hz (Scalar) |
Operator Controls: | Built In |
Enclosure Rating: | IP20 |
Package Included:
- 1 x New Delta VFD022EL43A PLC Programmable 3Hp 460V Three Phase Input AC Micro Driv
