ECMA-C10807SS DELTA A2 Series 750 Watt AC Servo Motor for Motion Control
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Delta Inverter VFD AC Variable Frequency Drive Motor Inverter VFD075B43A
-
Delta Inverter VFD AC Variable Frequency Inverter VFD022M43A 3Phase 460V 2.2KW
-
Delta Inverter VFD AC Variable Frequency Drive Inverter VFD015M23A
-
Delta Servo Motor Cable B2/A2 ASD-A2PW1001 Series Driver Cable
-
Delta Servo Encoder Cable B2/A2 Series ASD-CAPW1001 Driver Cable
-
Delta Electronics 2KW 1.3KW Medium High Inertia Series AC Servo Motor ECMC-FW1313RS 8.34Nm
Product Description
Product Description
Delta Servo motor
Output power : 750W
Rated torque : 2.39NM
Rated speed : 3000 RPM
Rotor moment of inertia : 1.13 x10 -4 kg-m 2
ASDA-A2 Series
Features
High Positioning Accuracy
► ECMA series servo motors feature incremental encoders with 20-bit level resolution which can improve low speed stability, smooth motor operation and enhance the accuracy of positioning.
► Absolute type encoder with 17-bit level resolution is supported.
High Responsiveness
► Up to 1 kHz frequency response.
► Settling time below 1 ms.
► 7 ms acceleration time for speeds from -3000 r/min to 3000 r/min with an empty load!
(Note: The test record is of a 400 W motor with 60 mm frame size).
► Vibration Suppression (Low Frequency):
Two vibration suppression filters are provided
for the long arm mechanism to settle down with less vibration.
► Resonance Suppression (High Frequency) :
Two auto-notch filters and one manual notch
filter are equipped to prevent resonance effects on the machine.

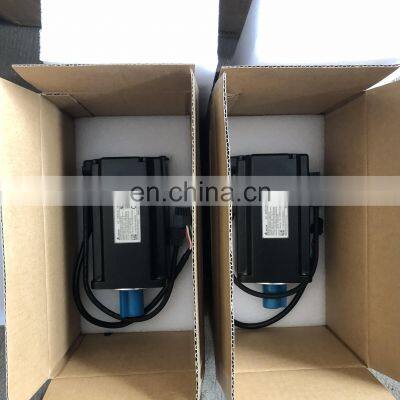

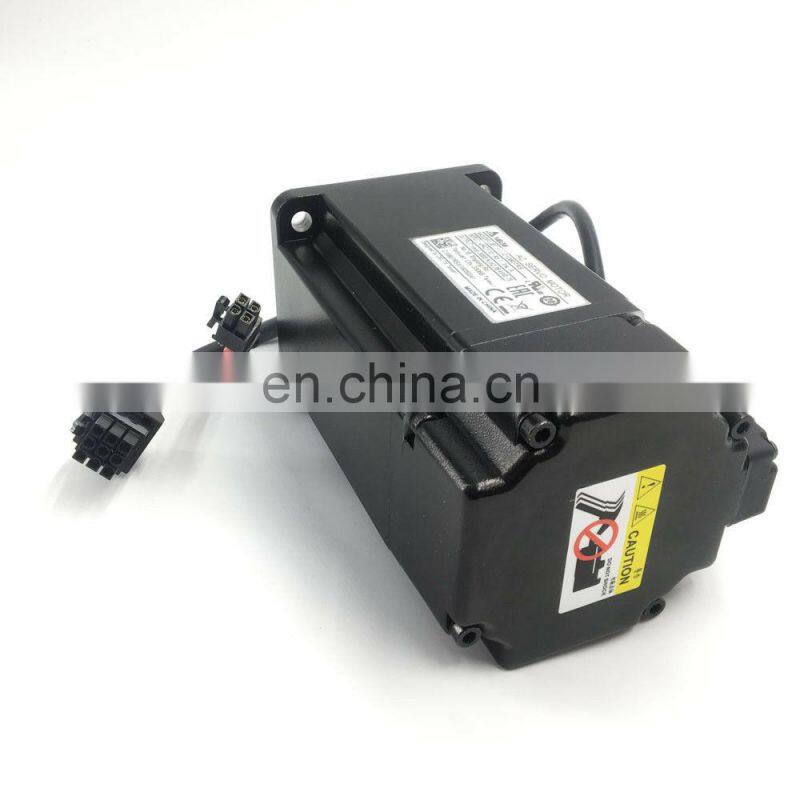

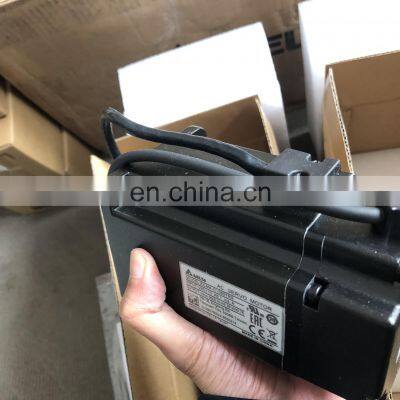

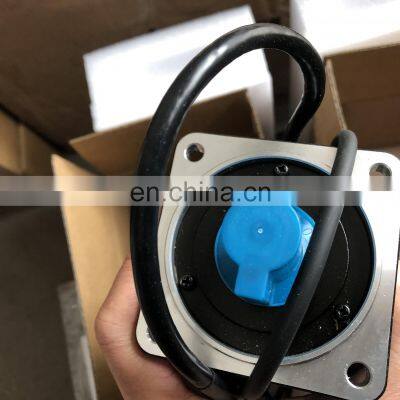

Detailed Images

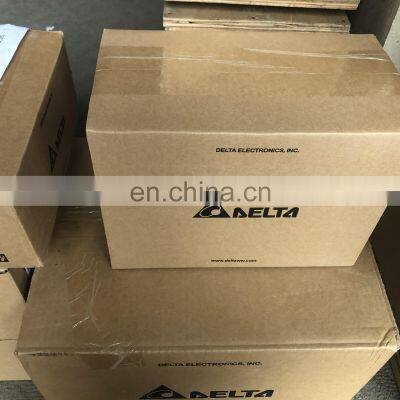

Packing&Shipping
