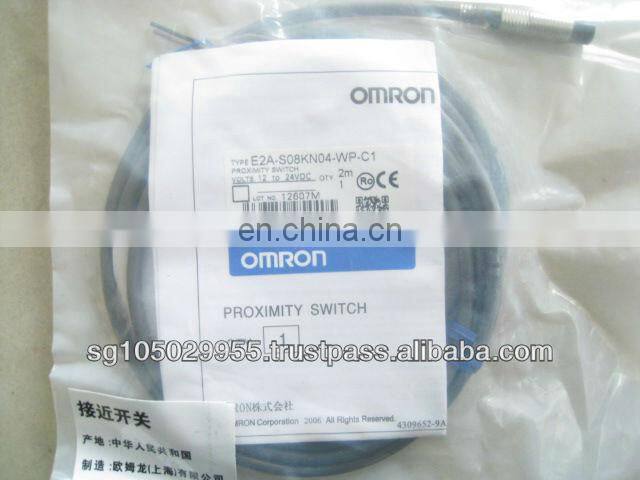

E2A-S08KN04-WP-C1 2M Omron Proximity Sensor

Brisynergy Automation Pte. Ltd.
E2A-S08KN04-WP-C1 2M Omron Proximity Sensor thumbnail-1
E2A-S08KN04-WP-C1 2M Omron Proximity Sensor photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2004
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

E2A-S08KN04-WP-C1 2M Omron Proximity Sensor



Specifications:



Cylinder type sensing head sizeM8
TypeUnshielded
Sensing methodInductive type
Sensing distance4 mm -10% to +10%
Setting distance0 to 3.2 mm
Differential distance10% Max. of sensing distance
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 12*12*1mm
Response frequency1 kHz (average)
Power supply voltage12 to 24 VDC (ripple(p-p) :10% Max.)
Operating voltage range10 to 32 VDC
Current consumption10 mA Max.
Control output (Output type)NPN open collector output
Control output (Switching capacity)0 to 200 mA
Control output (Residual voltage)2 V Max. (under load current with cable length of 2m)
IndicatorOperation indicator(yellow)
Operation modeNO
Protective circuitSurge suppressor
Output short-cut protection
Power supply reverse polarity protection
Standard or Different frequencyStandard
Ambient temperatureOperating: -40 to 70 CEL
Storage: -40 to 85 CEL
(with no icing or condensation)
Ambient humidityOperating: 35 to 95 %RH
Storage: 35 to 95 %RH
(with no condensation)
Temperature influence+-10% Max. of sensing distance in temperature range of -25 to +70CEL
+-15% Max. of sensing distance in temperature range of -40 to +70CEL
(As the basis for sensing distance of 23CEL)
Voltage influence+-1% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)
Insulation resistance50 M OHM Min. at 500VDC between charged parts and the case
Dielectric strength1000 VAC 50/60 Hz for 1 minute between charged parts and the case
Vibration resistance10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance1000m/s2 for 10 times each in X, Y, and Z directions
Degree of protectionIEC60529: IP67
Applicable standard (EC Directive (Low Voltage Directive))EN60947-1
EN60947-5-2
Applicable standard (EC Directive (EMC Directive))EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped
Applicable standard (CCC mark)Not equipped
Connection methodPre-wired models (Cable length: 2 m)
Weight (Packed state)approx. 65 g
Material (case)Stainless steel (SUS303)
Material (sensing surface)PBT
Material (clamping nuts)Brass nickel plating
Material (toothed washer)Iron zinc plating







E2A-S08KN04-WP-C1 2M Omron Proximity SensorE2A-S08KN04-WP-C1 2M Omron Proximity Sensor
