Product Description
Standard absolute value multi turn encoder EAMM58A IP65 10-30v
Product Description
The standard absolute value multi turn encoder EAMM58 series has good mechanical damage resistance and can withstand high axial and radial loads. All kinds of flange on the machine can meet the different needs of users. Electrical serial port, parallel port and other interfaces can cooperate with a variety of upper computer, the number of cycles and resolution can be selected by customers, and gray code, binary code and other different code systems can be provided for customers to choose.
A variety of standard flange options, easy to connect
Reserved screw hole for easy installation
Waterproof oil seal, improve protection level
A variety of shaft diameters are available for customers
Metal shell, good impact resistance
Protection grade IP65
Optional connector outlet, convenient for customer installation and maintenance
Model

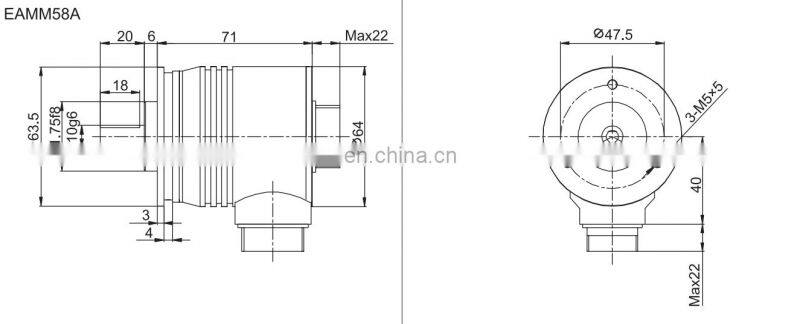

Dimensions

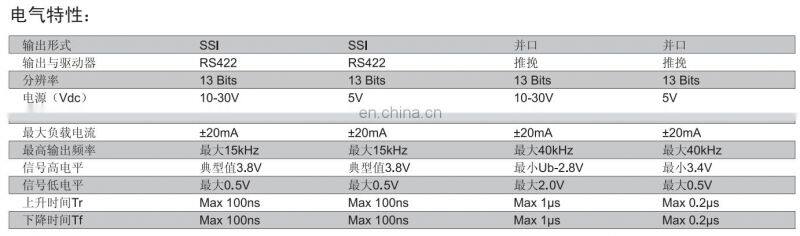

Specification

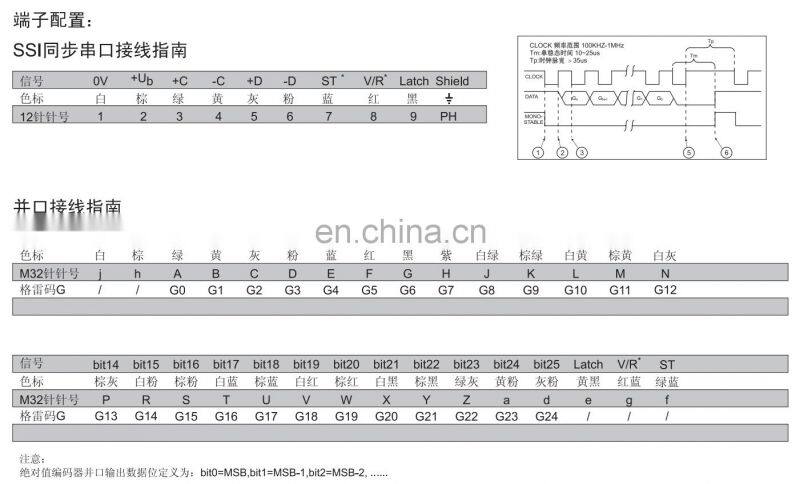

Connections
Packing & Delivery
Standard strong export carton box
Company Profile
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation!
Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world, we are adhering to the idea "credibility first, customer first, win-win cooperation" , strive for the highest quality products and services to contribute to our customers!
