PROFIBUS absolute value multi turn encoder PAMM115A IP65 10-30V
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
PROFIBUS absolute value single turn encoder PAC58W IP65 10-30V
-
A-ZKD-12J-250BM/4P-G05L-A 2500ppr servo Rotary encoder
-
Standard absolute value multi turn encoder EAMM58A IP65 10-30v
-
Analog 4... 20mA absolute value multi turn encoder EAMS58C IP65
-
Photoelectric detection mode Programmable absolute encoder hollow shaft Modbus RTU Protocol multi-turns absolute encoder
-
CALT economic type Programmable absolute encoder 12mm blind hollow shaft Modbus RTU output single turn absolute encoder
Product Description
PROFIBUS absolute value multi turn encoder PAMM115A IP65 10-30V
Product Description
The PAMM58 series of PROFIBUS absolute value single turn encoder has good mechanical damage resistance and can withstand high axial and radial loads. Mechanical flange can meet the different needs of customers. The electrical system is in accordance with PROFIBUS protocol. The maximum resolution is 8192 and the maximum number of turns is 4096. The resolution and the number of turns can be adjusted according to the customer's site needs. Its high-speed communication and good anti-interference ability make the customer's equipment run more stable.
A variety of flange options, convenient for customers to use
Reserved installation screw hole, convenient for customers to use
Waterproof oil seal, improve protection level
Direct outlet, convenient for customer installation and maintenance
Protection grade IP65
Metal shell, good impact resistance

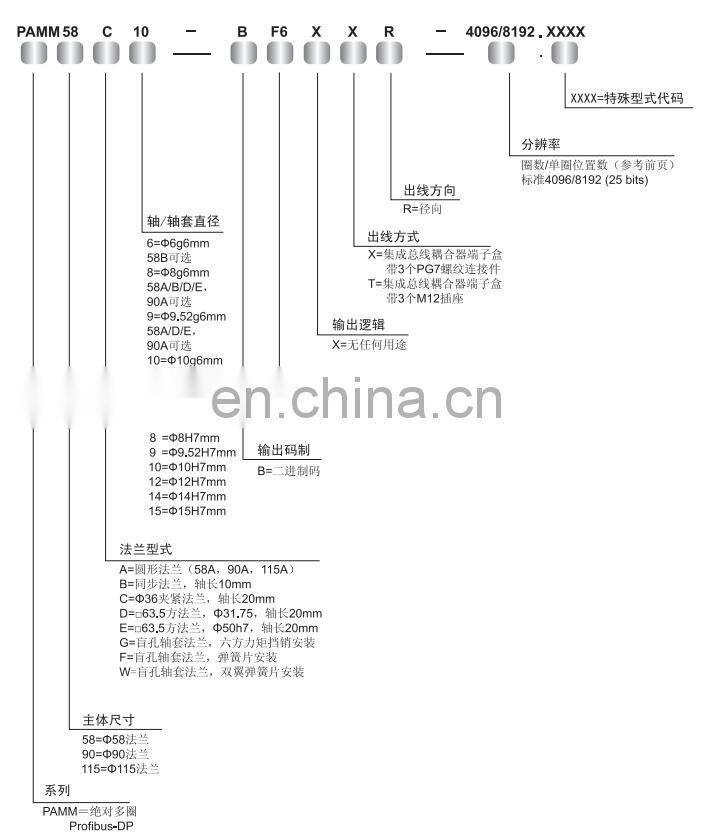

Model

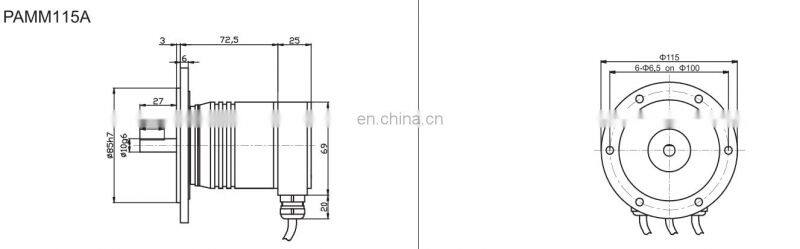

Dimensions

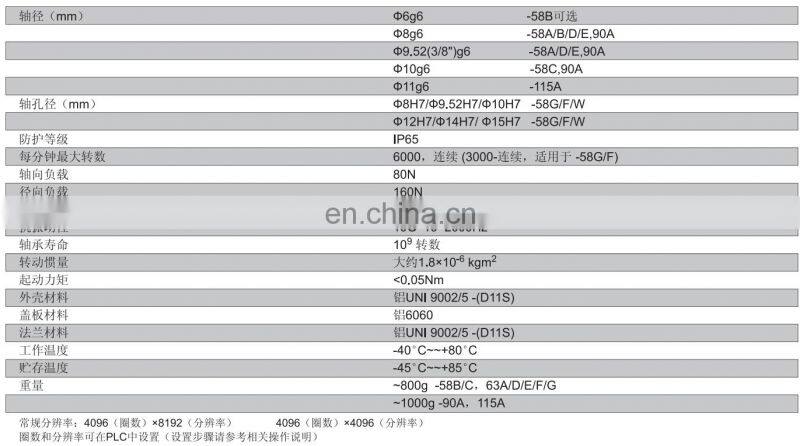

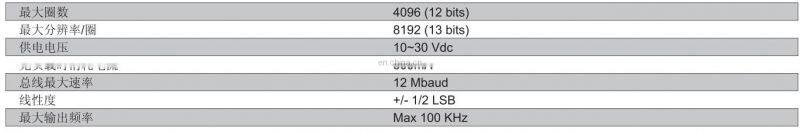

Specification

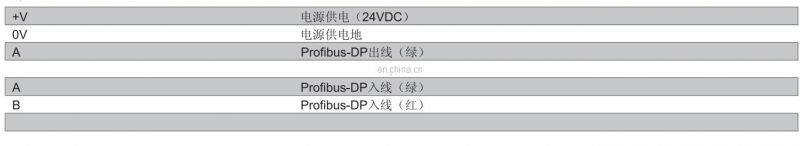

Connections

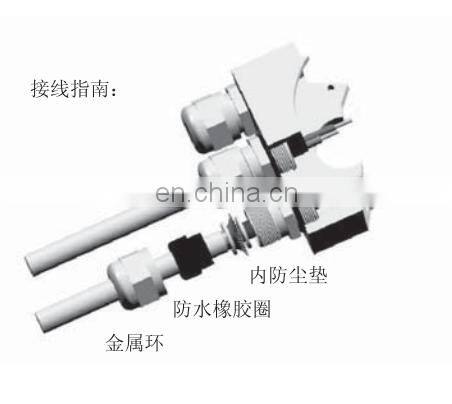

Use of junction box
Screw out the two screws on the rear cover, connect the power line, input bus and output bus according to the text on the end cover. Put the bus cable through the metal ring, waterproof rubber ring and inner dust pad into the metal groove to lock the metal ring.
Packing & Delivery
Standard strong export carton box
Company Profile
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation!
Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world, we are adhering to the idea "credibility first, customer first, win-win cooperation" , strive for the highest quality products and services to contribute to our customers!
