CAS60R12E10R4B single-loop parallel absolute value encoder 12bit
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
PROFIBUS absolute value multi turn encoder PAMM115A IP65 10-30V
-
PROFIBUS absolute value single turn encoder PAC58W IP65 10-30V
-
A-ZKD-12J-250BM/4P-G05L-A 2500ppr servo Rotary encoder
-
Standard absolute value multi turn encoder EAMM58A IP65 10-30v
-
Analog 4... 20mA absolute value multi turn encoder EAMS58C IP65
-
Photoelectric detection mode Programmable absolute encoder hollow shaft Modbus RTU Protocol multi-turns absolute encoder
Product Description
CAS60R12E10R4B single-loop parallel absolute value encoder 12bit
Product Description
* Single loop unique pair value digital code disk, the same encoder has both CW and CCW selection.
* Single-coil encoders are also equipped with a counting coil signal, which can work for multiple cycles, and the power failure rotation is no more than 90 degrees.
* 12-bit 4096 wire resolution (1024 wire, 2048 wire can be ordered).
* Wide operating voltage range, 10... 30Vdc, polar protection.
* Wide operating temperature range, -25 ~ 80℃; Storage temperature: -40 ~ 80℃.
* Parallel push-pull output, optional reference voltage, directly connected to various devices.
* Clamping flange, synchronous flange or blind hole shaft sleeve, international standard type, other shapes optional.
* Built-in core computing chip, can be set to zero.

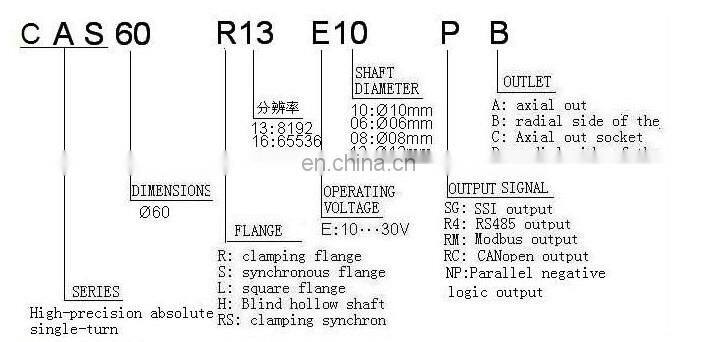

Model

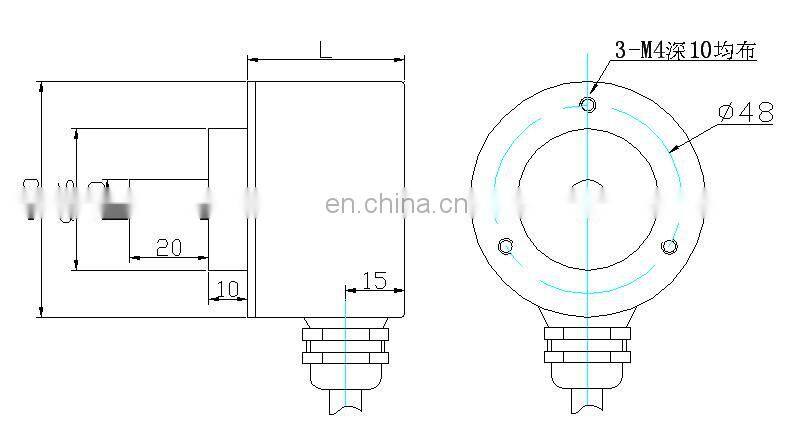

Dimensions
Specification
Working voltage :10... 30Vdc polarity protection
Consumption current :<50mA(24Vdc) no load
Output signal: Parallel push-pull output type high level effective (parallel output voltage value can be set flexibly)
Output mode: Gray code; CW or CCW is optional; With the function of counting circle
Input signal :KVCC parallel output reference voltage, output voltage drop <2V
Resolution :≤12 bits, maximum 4096 lines (order selection)
Repeatability: repeatability ±2BIT (actual accuracy is related to installation accuracy and axial concentricity)
Operating temperature :-25 ~ 80℃
Storage temperature :-40 ~ 80℃
Protection class: Housing IP67 shaft IP65
Vibration impact :20g, 10 ~ 2000Hz; 100 g, 6 ms
Permissible speed :2400 RPM
Connecting cable :1 meter shielded cable radially out (other forms can be ordered)
Appearance features: metal sealed shell, sealed double bearing structure
