Five Year Warranty Socket Battery Biscuit Bag Pillow Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturers Produce Supply Nitrogen-Filled Bread Biscuit Toast Pillow Packing MachineNegotiableMOQ: 1 -
Automatic Disposable Chopsticks Tableware Toy Paper Food Pillow Packing MachineNegotiableMOQ: 1
-
Automatic Weighing Induction Length Of Green Leafy Vegetables Fresh Fruit Pillow Packaging MachineNegotiableMOQ: 1
-
Factory Biscuits Bread Candy Fruit Food Vegetable Automatic Servo Pillow Packing MachineNegotiableMOQ: 1
-
Automatic Candy Food Independent Bag Coffee Candy Horizontal Pillow Packing MachineNegotiableMOQ: 1
Attention:
---1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
information, please click "Contact Supplier" to send mail to us.
---2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description

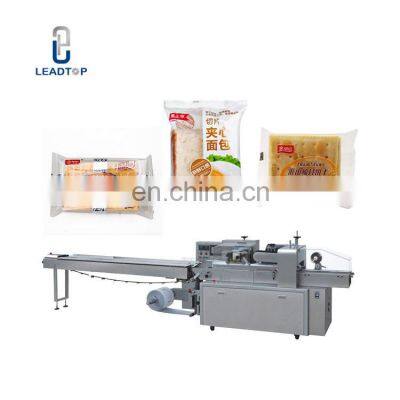

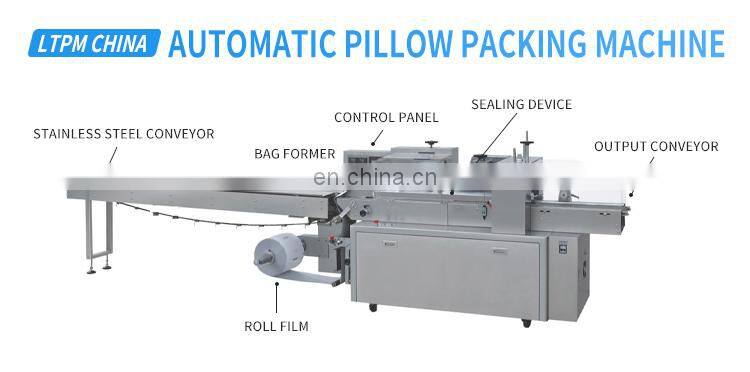

KD-260C Horizontal Packing Machine is a kind of advanced equipment applicable for such different materials as composite film,paper film and aluminum film to pack various solid and regular-shaped objects.
Can Be Applied to:
Can Be Applied to:
Food ( snack bar, bread, cookies, ice lolly cake, chocolate ), Plastic(cutlery, tray ), Hardware, Soap, Sponge,Tissue, Card etc.Packaging various kinds of regular objects.
Technical Parameters
Model | KD-260 | KD-350 | KD-550 | ||
Max.Film width | 260mm | 350mm | 550mm | ||
Max capacity of packing | 20-120 pcs/ min | ||||
Film thickness | 0.03-0.08mm | ||||
Bag Length | 60-300 ( Do not exceed this size ) | ||||
Packing width | 25-260mm | 25-350mm | 25-550mm | ||
Packing Height | ≤80mm | ||||
Power Supply | 220V 2.4 kW | ||||
Overall dimensions | 2600*750*4500mm | 3500*880*4500mm | 3800*920*4500mm | ||
Total Weight | 680kg | 700kg | 700kg | ||
Equipment introduction
Main Features:
1.Dual inverters control, bag length can be set and cut in one step.
1.Dual inverters control, bag length can be set and cut in one step.

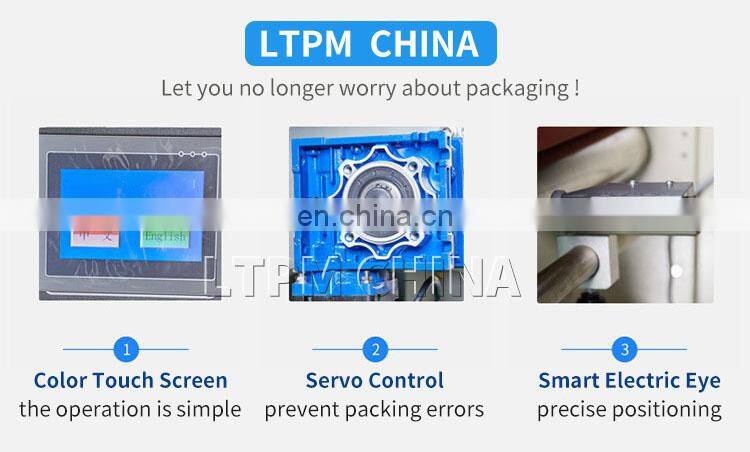

2.Computer interface operation, convenient and quick parameter setting.

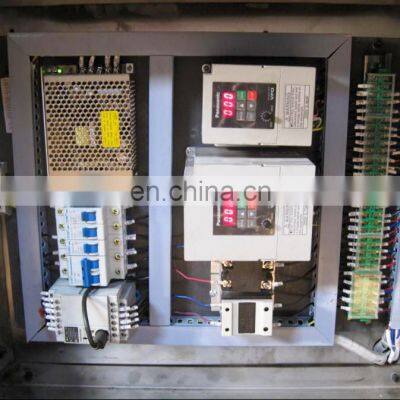

3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.
Optional accessories:
1:Date Coder
3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.
Optional accessories:
1:Date Coder
2:Touchable Screen
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device 7:Gas flushing device
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device 7:Gas flushing device

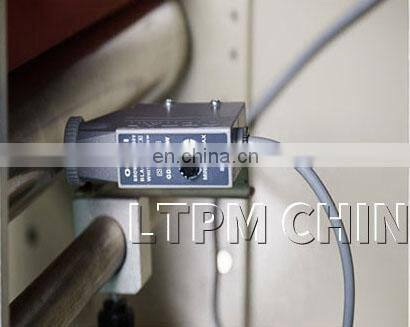

COLOR CODE TRACKER
High sensitivity color tracking, accurate perception of sealing position, reduce the loss rate.

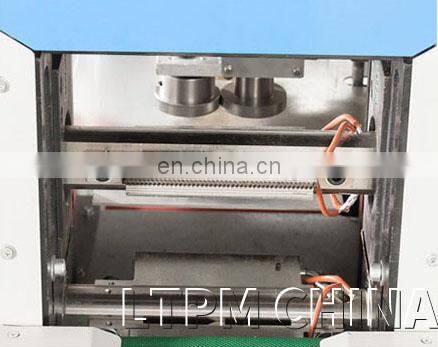

HORIZONTAL SEAL
There are two temperature PID intelligent thermometer, independent control, can be set to adjust the packaging film temperature,
to achieve good packaging effect.
to achieve good packaging effect.
END SEAL
Set the number of packages and it will stop automatically. The film will not stick on the cutter, prolong the life of the cutter,
and will not waste the film.
and will not waste the film.
304 FEEDING PLATE
Using 304 food grade stainless steel material, packaging products are safer, better corrosion resistance, longer machine life.
Related Products
Company Introduction
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
